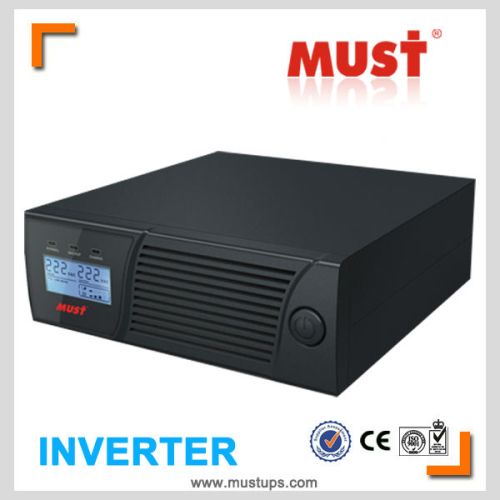

Factory Wholesaler DC to AC 220V Modified Sine Wave Inverter
| Model NO. | EP1000 series |
| Certification | ISO9001, CE, SAA |
| Circuit Topologies | Full-Bridge Type |
| Type | DC/AC Inverters |
| Capacity | 100va/2000va |
| Output Wave | Modified Sine Wave |
| DC Voltage | 12V/24VDC |
| Display | LCD/LED |
| Trademark | MUST Or OEM brand |
| Specification | ISO9001, CE |
| HS Code | 8504403090 |
| Nature of Source Flow | Active Inverter |
| Output Power | 50 - 100W |
| Nature of Wave String | Square Wave Inverter |
| Input Voltage | 90 - 280VAC or 170-280VAC |
| Charger | 10A/20A |
| Rear Panel | 2PCS Outlets |
| Country of Origin | China |
| Application Home | Fan, Light, Lamp |
| Transport Package | Carton |
| Origin | China |
Factory wholesaler dc to ac inverter
High Frequency Modified Sine Wavev Inverter 600W/12VDC
Main features:
1. Household use2. User selectable for accepting wider input voltage.
3. Full automatic and silent operation.
4. Rack Tower design.
5. High Frequency.
6. Off mode charging.
7. Available in five AC outlet configurations: NEMA, Schuko, French, India, and BS1363.
8. Compact size for convenient use and storage.
9. Built-in 8Amp super charger for up to 100Ah battery.
10. Small scale and cost effective inverter for home appliances and office equipment.
11.3 steps IGBT mosfet charging control to recharging time
High Frequency Modified Sine Wavev Inverter 600W/12VDC
Main features:
1. Household use2. User selectable for accepting wider input voltage.
3. Full automatic and silent operation.
4. Rack Tower design.
5. High Frequency.
6. Off mode charging.
7. Available in five AC outlet configurations: NEMA, Schuko, French, India, and BS1363.
8. Compact size for convenient use and storage.
9. Built-in 8Amp super charger for up to 100Ah battery.
10. Small scale and cost effective inverter for home appliances and office equipment.
11.3 steps IGBT mosfet charging control to recharging time
| MODEL | 115V Models | 230V Models | |
| OUTPUT | |||
| Power Levels crated at nominal inputs | 500VA/300W;1000VA/600W;2000VA/1200W | 500VA/300W;1000VA/600W;2000VA/1200W | |
| Output Voltage | 120V | 230V | |
| Phase | Single | ||
| Voltage Waveform | Modified Sine Wave | ||
| Power Factor | 0.6 | ||
| Output Frequency(Synchronized to Mains) | Auto Select for 50/60Hz | ||
| Regulation (Nominal) | 10%-18% | ||
| Regulation(Battery mode) | ±0.1HZmn;0.1HZmn;0.1HZ | ||
| Transfer time | 8ms Typical | ||
| INPUT | |||
| Nominal Voltage | 110V/120V Selectable | 220V/230V/240V Selectable | |
| Phase | Single | ||
| Voltage range | 90 - 145VAC or 170-280VAC ( Narrow Range ) | ||
| 50-145VAC / 90-280VAC (Wide Range) | |||
| BATTERY | |||
| Charger Current | 500VA/300/12VDC:10 Amp + / - 1Amp ;1000VA/600W/12VDC:10 Amp + / - 1Amp 2000VA/1200W/24VDC:10 Amp + / - 1Amp | ||
| Floating Voltage | 500VA/300W:13.7V + / - 0.2V ; 1000VA/600W:27.4V + / - 0.4V ; 2000VA/1200W:27.4V + / - 0.4V | ||
| Overcharge Protection | 500VA/300W: 15V +/- 0.3V charger stops and fault | ||
| 1000VA/600W:15V +/- 0.6V charger stops and fault | |||
| 2000VA/1200W: 30V +/- 0.6V charger stops and fault | |||
| EFFICIENCY | |||
| AC to AC | 95% "> >95% | ||
| DC to AC | >80% | ||
| INDICATOR | |||
| AC Mode | Green LED lighting | ||
| Battery Mode | Yellow LED lighting | ||
| Battery Charging Mode | Green LED flashing every 2 seconds | ||
| Overload | Red LED flashing every 0.5 second | ||
| Fault | Red LED lighting | ||
| AUDIBLE ALARM | |||
| Low Battery at Battery Mode | Sounding every 2 seconds | ||
| Overload | Sounding every 0.5 second | ||
| Fault | Continously sounding | ||
| Protection | |||
| Full Rrotection | Deep Discharge, Overcharge, and Overload protection | ||
| ENVIRONMENTAL AND SAFETY | |||
| Operating Temperature | Up to 1500 meters:0 °Cto 40°C (32°F to 104°F)g;F to 104°F)g;F)g;F to 104°F) | ||
| Transit/storage Temp. | 15°C below zero to 50°C (5°F to 131°F)g;F to 131°F)g;F)g;F to 131°F) | ||
| Relative Humidity | 0 - 90% non condensing | ||
| Quality control system | ISO 9001:2000, ISO 14002-2004 | ||
| PHYSICAL | |||
| Appearance | Size(mm)L x W x H | 224 x 255 x 80 | |
| Weight(Kg) | 500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg | ||
| Carton BOX(mm)L x W x H | 400*347*596(6pcs) | ||
| Gross Weight Weight(Kg) | 500VA / 300W:7.4kg ;1000VA /600W :8kg ; 2000VA / 1200W :9.5kg | ||
