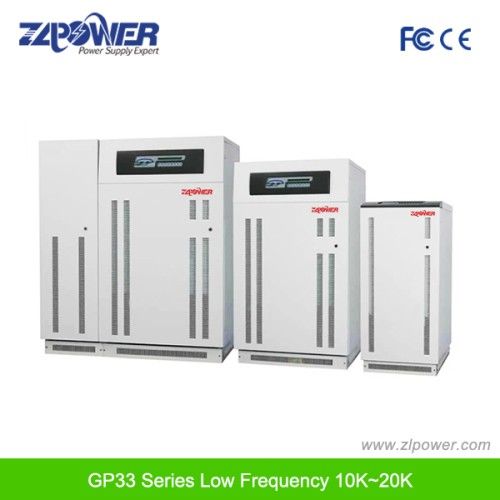

Uninterrupted Power Supply, No Breaks UPS System (GP3310K~GP33200K)

Uninterrupted Power Supply, No Breaks UPS System (GP3310K~GP33200K)

bargain

add to cart
Model NO. GP3310~GP33200K
Type On-line
Application Industry
Standby Time Long-acting Machine
Output Capacity Large Type
Brand Zlpower
Colour Black, White
Trademark zlpower
Origin Shenzhen, China
Phase Single Phase
Protection Multi Protection
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Internal Batteries 10k to 40kVA
Capatiry 10kVA to 200kVA
Specification CE
HS Code 8504402000
Model: Uninterrupted Power Supply, No breaks UPS system
Key Feature
* Soft start technology
* More than 3 times instant power
* Built-in isolated transformer
* Adopt twin change on line technology, sequester extraneous interference
* Favorable overload ability and protection
* Design with 100% unbalance protection
* 100% Non linear load ability
* IGBT, PWM inverter together with digital
* The output isolate transformer can avoid the destruction of abnormal signal & lightning stroketroketroke
* With static bypass, repair bypass, battery maintain bypass
* Cold start
APPLIANCATION
* Data management equipment and system
* Automatic control systems
* Hospital
* Mini office system
* Telecommunication systems
* Bank.
Model GP11 1K GP11 2K GP11 3K GP11 4K GP11 6K GP11 8K GP11 10K GP11 15K GP11 20K
Capacity 1KVA 2 KVA 3 KVA 4 KVA 6 KVA 8 KVA 10 KVA 15 KVA 20 KVA

AC
Input
Phase Single Phase +N+G
Voltage 115~300Vac
Frequency 40~70Hz

DC Input
Float Voltage 54.5Vdc 218 Vdc
Cut-off voltage 42 Vdc 168 Vdc
DC Voltage 48 Vdc 192 Vdc

AC Output
Frequency 50/60Hz± 0.2%mn; 0.2%mn; 0.2%
Voltage 220/230/240 Vac
Power Factor 0.8
Wave Form Pure sine wave
Total harmonic distortion
linear load less than 2%, non-linear load less than 5%

Crest factor 3: 1
Overload capability more than 125% 1min
Full Load Efficiency ≥ 90% 90% 90%
Environment Temperature -10° C-40° C40° Cg; C40° C
Humidity 30%~90%
Weight(kg) 42 51 65 50 60 80 110 135 160
Dimension(mm) 210× 612× 54012× 540s; 54012× 540 240× 540× 68040× 680s; 68040× 680 400× 450× 94050× 940s; 94050× 940
