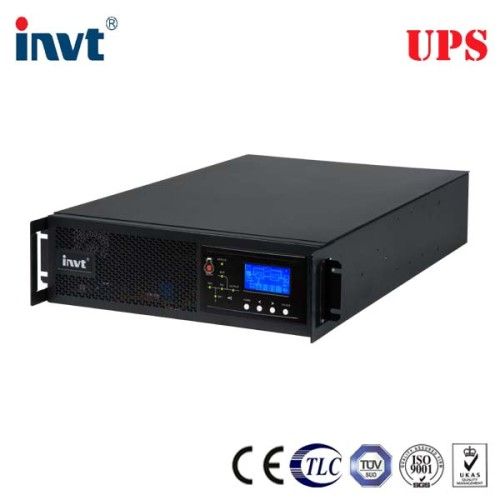

220va 50Hz 1kVA Rack Mount UPS
bargain
add to cart| Model NO. | HR |
| Type | On-line |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Medium Type |
| Brand | Invt |
| Output Voltage | 110V/220VAC |
| Power Factor | 0.99 |
| Wave Form | Sine Wave |
| Communication | RS232 Snmp Card |
| Specification | 1~3KVA |
| HS Code | 85044020 |
| Phase | Single Phase |
| Protection | Overvoltage |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Decentralized |
| Output Power Factor | 0.8 |
| Power Range | 1-10kVA |
| Voltage Range | 115-300VAC |
| Transfer Time | 0ms |
| Trademark | INVT |
| Origin | China |
220va 50Hz 1kva rack mount ups
Function & Characteristic:stic:stic:
Function & Characteristic:stic:stic:
1. High frequency and IGBT technology
2. Modular design for 19 inch rack framwork
3. Overload and short circuit protection
4. Large LCD display, more information and history log
5. Intelligent slot for SNMP adaptor(optional)
6. Battery cold start
7. Wide input range
8. Advanced battery management
9. Fruitful protection such as lighting, surge, short circuit and so on
8. Advanced battery management
9. Fruitful protection such as lighting, surge, short circuit and so on
| Model | HR1101K | HR1101KL | HR1102KL | HR1103KL | HR1106KL | HR1110KL | |
| Capacity | 1KVA/800W | 1KVA/800W | 2KVA/1600W | 3KVA/2400W | 6KVA/4800W | 10KVA/8000W | |
| Input | Voltage Range | 115~300Vac | 120-275Vac | ||||
| Frequency | 40-60Hz / 50-70Hz | ||||||
| Power Factor | 0.99 | ||||||
| Output | Voltage | 220/230Vac(1±2%)usmn;2%)usmn;2%) | |||||
| Frequency | Synchronize with utility power(utility mode); 50/60Hz±0.2Hz(battery mode)ry mode)ry mode) | ||||||
| Wave Form | sine wave | ||||||
| On-load factor | 0.8 | ||||||
| Overload Capability | 125% for 1min | ||||||
| Current Crest Ratio | 3:1 | ||||||
| Transfer Time | 0 ms | ||||||
| LED indicators | Load level / Battery level, Battery, Utility Power, Inverter, Bypass, Overload, Fault | ||||||
| Audible Alarms | On battery mode, Battery low, Overload, Fault | ||||||
| Battery | Sealed lead acid maintenance-free battery | ||||||
| External battery voltage | 12V7AH*3PCS | DC36V | DC72V | DC96V | DC192V | DC192V | |
| Ambient | Temperature | 0 - 40 o C | |||||
| Humidity | 0 -95% | ||||||
| Communication | 9Pin D type connector (RS232), SNMP adaptor(optional) | ||||||
| Net Weight (Kg) | 18 | 12 | 15 | 15 | 30 | 32 | |
| Dimensions (WxHxD) | 482x89x450 (2U) | 482*221*684(5U) | |||||
| *(L)-Long backup version | |||||||
