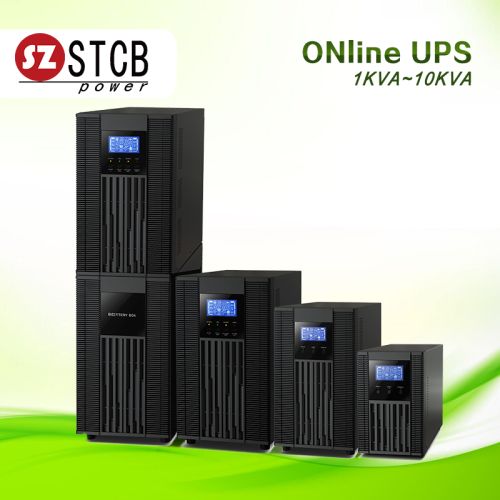

Double Conversion UPS 1kVA 2kVA 3kVA 6kVA 10kVA with 0ms Transfer Time

100-580 USD

Model NO.	GH11 1kva~10kva
Type	On-line
Standby UPS	Sine Wave Output UPS
Power Efficiency	0.8
Battery Type	Sealed Lead Acid Maintenance-Free Battery
Warranty	12 Months
Transport Package	Cartons
HS Code	8504402000
Phase	Single Phase
Protection	Short Circuit
Transfer Time	0 Ms
Battery Mode	Standard Mode or External Battery Mode
Charging Period	4 Hours to 90% Capacity
Trademark	STCB
Origin	Guangzhou Shenzhen

Double Conversion UPS 1kVA 2kVA 3kVA 6kVA 10kVA with 0ms transfer time
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:

MODEL		GH-1K (L)	GH-2K (L)			GH-3K (L)
CAPACITY		1000 VA / 800 W	2000 VA / 1600 W			3000 VA / 2400 W
INPUT
Nominal Voltage		100/110/115/120/127VAC or 200/208/220/230/240VAC
Input Voltage Range		55-145 VAC or 110-300 VAC
Frequency Range		40Hz ~ 70 Hz
Power Factor		≥ 0.99 @ Nominal Voltage (100% load)oad)oad)
OUTPUT
Voltage Regulation		110v/220v ± 1%usmn; 1%usmn; 1%
Frequency Range		50 Hz or 60Hz ± 0.1 Hz; 0.1 Hz; 0.1 Hz
Current Crest Ratio		3:1
Harmonic Distortion		≤ 3 % THD (Linear Load)oad)oad) ≤ 6 % THD (Non-linear Load)oad)oad)
Transfer Time		Zero
Waveform		Pure Sinewave
EFFICIENCY
To AC Mode		88%	89%			90%
To Battery Mode		83%	87%			88%
BATTERY
Standard Model	Battery Type	12 V /9 AH	12 V / 9AH			12 V / 9 AH
	Numbers	2	4			6
	Recharge Time	4 hours recover to 90% capacity
	Charging Current	1.0 A
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers	3	6			8
	Charging Current	1.0A/2.0A/4.0A/6.0 A
PHYSICAL
Standard Model	Dimension	285145220mm		395145240mm	415190337mm
	Net Weight	9.3kg		18.6kg	30kg
Long-run Model	Dimension	282145 220mm		397145220mm
	Net Weight	4.6kg		6.8kg	7.4kg

MODEL		GH11- 6K(L)	GH11- 10K(L)
		6000 VA / 4800 W	10000 VA / 8000 W
INPUT
Nominal Voltage		208/220/230/240VAC
Input voltage range		175V~290VAC ± 3%usmn; 3%usmn; 3%
Frequency Range		46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Power Factor		0.99~1
OUTPUT
Nominal Voltage		208/220/230/240VAC ± 1%lusmn; 1%usmn; 1%
Frequency Range		46 Hz ~ 54 Hz or 56 Hz ~ 64 Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		≤3 % THD (Linear Load)oad)oad) ≤6 % THD (Non-linear Load)oad)oad)
Transfer Time		Zero
Waveform		Pure Sine wave
EFFICIENCY
Line Mode		89%	90%
Battery Mode		88%	89%
BATTERY
Standard Model	Battery	12 V / 7 AH	12 V / 9 AH
	Numbers	16	16
	Recharge Time	9 hours recover to 90% capacity
	Charging Current	Default:1.0 A ± 10%,mn; 10%,mn; 10%, Max.:2.0A ± 10%smn; 10%smn; 10%	Default:1.0 A ± 10%,mn; 10%,mn; 10%, Max.:2.0A ± 10%usmn; 10%smn; 10%
Long-run Model	Battery	Depending on applications
	Numbers	16/20pcs (adjustable)
	Charging Current	Default:4.0 A ± 10%,mn; 10%,mn; 10%, Max.:6.0A ± 10%smn; 10%smn; 10%	Default:4.0 A ± 10%,mn; 10%,mn; 10%, Max.:6.0A ± 10%smn; 10%smn; 10%
PHYSICAL
Standard Model	Dimension	369190688mm	442190688mm
	Net Weight	61kg	66kg
Long-run Model	Dimension	369190 318mm	442190 318mm
	Net Weight	12kg	16kg

* Product specifications are subject to change without further notice
