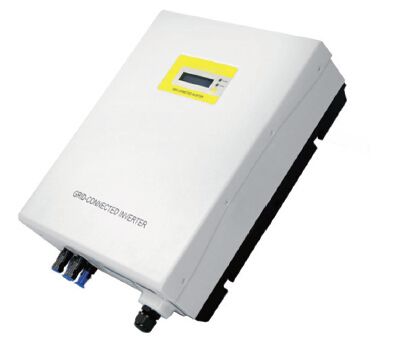

Double MPPT Singel Phase on Grid Inverter
| Model NO. | SP-D Series 3300TL-D, 4000TL-D, 5000TL-D |
| Type | DC/AC Inverters |
| Number of Mpp Trackers | 2 |
| AC Grid Frequency Range | 50±5Hzlusmn;5Hzusmn;5Hz |
| Trademark | KEMAPOWER |
| Phase | Single |
| Power Source | Solar Power |
| Nominal AC Output Voltage | 230VAC |
| Power Factor (Cosφ)phi;)phi;) | >0.99 |
| Origin | China |
Double MPPT Singel Phase On Grid Inverter
Key features:
1.Single phase Double MPPT On Grid string inverters 3.3KW to 5.0KW
2.Wide PV input voltage range
3.Rapid MPPT tracking technology, Double MPPT
4.Transformerless design with higher operation efficiency
5.Easy and affordable to install
6.Lightweight and compact size
7.Firm IP65 inverter enclosure allows outdoor application
8.LCD and LED display
9.RS232 serial communications
10.Optional:RS485 communications
11.Optinal:Internal DC Switch
Technical Specification :
Key features:
1.Single phase Double MPPT On Grid string inverters 3.3KW to 5.0KW
2.Wide PV input voltage range
3.Rapid MPPT tracking technology, Double MPPT
4.Transformerless design with higher operation efficiency
5.Easy and affordable to install
6.Lightweight and compact size
7.Firm IP65 inverter enclosure allows outdoor application
8.LCD and LED display
9.RS232 serial communications
10.Optional:RS485 communications
11.Optinal:Internal DC Switch
Technical Specification :
| Item | Model (SUNTW INS) | 3300TL-D | 4000TL-D | 5000TL-D |
| Input (DC side) | Max. DC Input Power | 3600W | 4380W | 5300W |
| Max DC Voltage | 500Vdc | |||
| Start Voltage | 150Vdc | |||
| MPPT Operating Range | 100~450Vdc | |||
| Number of Inputs | 2 | |||
| Number of MPP Trackers | 2 | |||
| Max. Input Power per MPPT | 2000W | 2300W | 3000W | |
| Max. Input Current | IN1: 10A/IN2: 10A | IN1: 13A/IN2: 13A | IN1: 15A/IN2: 15A | |
| Output (AC side) | Nominal Output Power | 3300W | 4000W | 4950W /5000W |
| Max. Output Power | 3300W | 4000W | 4950W /5000W | |
| Nominal Output Current | 14.3A | 17.4A | 21.5A | |
| Max. Output Current | 16.5A | 20.0A | 25.0A | |
| Nominal AC Output Voltage | 230Vac | |||
| AC Output Voltage Range | 190~265Vac | |||
| AC Grid Frequency Range | 50±5Hzusmn;5Hzusmn;5Hz | |||
| Power Factor (cosφ)phi;)phi;) | >0.99 | |||
| THDI | <3% (at nominal output power)wer) | |||
| Efficiency | Max Efficiency | 97.40% | 97.60% | 97.60% |
| Euro Efficiency | 97.00% | 97.10% | 97.10% | |
| MPPT Efficiency | 99.60% | 99.60% | 99.60% | |
| System | Operating Temperature | -25°C~+60°C+60°Ceg;C+60°C | ||
| Noise (typical) | ≤25dB (A) (A) (A) | |||
| Consumption at night | 0W | |||
| Electrical Isolation | Transformerless | |||
| Cooling Concept | Natural Cooling | |||
| Degree of Protection | IP65 | |||
| Communication | RS232 (W iFi Optional) | |||
| Dimension (W *D*H mm) | 345*152*435 | |||
| W eight (kg) | 16.5 | 18 | 18 | |
| Remark | AC grid voltage range and frequency range depend on local standards. | |||
