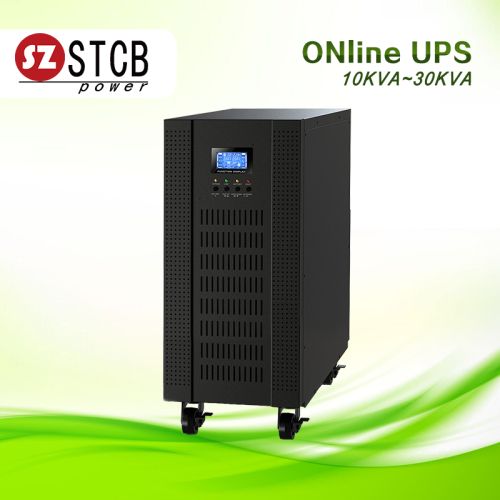

Gh31 20kVA Online UPS with Long-Time Mode and Standard Mode

Gh31 20kVA Online UPS with Long-Time Mode and Standard Mode

650-1800 USD

add to cart
Model NO. GH31 20KVA
Type On-line
Application Defence
Standby Time Long-acting Machine
Output Capacity Large Type
Transfer Time 0 Ms
Phase Type 3 Phase Input Single Phase Output
Input Voltage 3*380V AC
Warranty 12 Months
Transport Package Cartons, Pallet
HS Code 8504402000
Phase Three Phase
Protection Over Voltage / Short Circuit
Classification Procision Equipment
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Power Efficiency 0.8
Battery Type Sealed Lead Acid Maintenance-Free Battery
Output Voltage 220V AC
Trademark STCB
Origin Guangzhou Shenzhen
Gh31 20kVA Online UPS with Long-Time Mode and Standard Mode
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range
5. 50Hz/60Hz frequency converter mode
6. ECO mode operation for energy saving (ECO)
7. Emergency power off function (EPO)
8. Generator compatible
9. SNMP+USB+RS-232 multiple communications
10. 3-stage extendable charging design for optimized battery performance
11. Optional maintenance bypass switch
Specification:
MODEL GH 31 10K(L) GH 31 15K(L) GH 31 20K(L) GH 31 30K(L)
PHASE 3 phase in / 1 phase out
CAPACITY 10000VA
8000W		 15000 VA
12000W		 20000 VA
16000W		 30000VA
24000W
INPUT
Nominal Voltage 3 x 400 VAC (3Ph+N)
Voltage Range 190-520 VAC (3-phase) @ 50% load
305-520 VAC (3-phase) @ 100% load
Frequency Range 46~54 Hz or 56~64Hz
Power Factor ≥ 0.8 @ 100%100%100%
OUTPUT
Output Voltage 208/220/230/240VAC
AC Voltage Regulation ± 1%usmn; 1%usmn; 1%
Frequency Range 46~54Hz or 56~64Hz
Current Crest Ratio 3:1 (max.)
Harmonic Distortion ≤ 3 % THD (Linear Load)oad)oad)
≤ 5 % THD (Non-linear Load)oad)oad)
Transfer Time zero
Waveform Pure Sine wave
EFFICIENCY
AC Mode 91% 89% 89% 90%
Battery Mode 91% 88% 87% 88%
BATTERY
Standard
Model		 Battery Type 12 V / 9 AH
Numbers 20 pcs 2*20 pcs 3*20 pcs
Recharge Time 9 hours recover to 90% capacity
Charging Current 1A Default, 1A/2A/4A/6A (Adjustable)
Charging Voltage 273 VDC ± 1%usmn; 1%usmn; 1%
Long-run
Model		 Battery Type Depending on the capacity of external batteries
Numbers 18/20 ajustable
Charging Current 2A Default, 1A/2A/4A/6A (Adjustable)
Charging Voltage 273 VDC ± 1%usmn; 1%usmn; 1%
INDICATORS
LCD Panel UPS status, Load level, Battery level,
Input/Output voltage, Discharge timer,
and Fault conditions
PHYSICAL
Standard
Model		 Dimension 419*190*688mm 815*250*826mm 815*300*1000mm
Net Weight 83kg 164kg 164kg 234kg
Long-run
Model		 Dimension 419*190*318mm 815*250*826mm
Net Weight 28kg 40kg 40kg 64kg
MANAGEMENT
Smart RS-232/USB Supports Windows® 2000/2003/XP/Vista/2008,2008,2008,
Windows® 7/8, Linux, Unix, and MACd MACd MAC
Optional SNMP Power management from SNMP
manager and web browser
* Product specifications are subject to change without further notice
