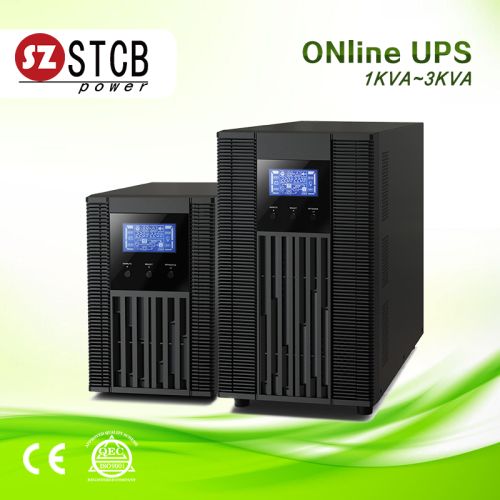

1kVA 2kVA 3kVA 110V 220V Online UPS with Battery Without Battery
| Model NO. | GH 11 1kva~3kva |
| Type | On-line |
| Application | Computer / Server |
| Standby UPS | Sine Wave Output UPS |
| Power Efficiency | 0.8(0.9 Optional) |
| Transfer Time | 0 Ms |
| Charging Current | 1A or 1A/2A/4A/6A Adjustable |
| Warranty | 12 Months |
| Transport Package | Cartons |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | Over Voltage / Short Circuit |
| Standby Time | Long-Acting / Standard |
| Rated Power | 1/2/3kVA |
| Waveform | Pure Sine Wave |
| Battery Mode | Inbuilt Battery or External Battery |
| Certificate | Ce |
| Trademark | STCB |
| Origin | Guangzhou Shenzhen |
1kva 2kva 3kva 110v 220v online ups with battery without battery
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:
* Product specifications are subject to change without further notice
Main Features:
1. True double-conversion
2. Microprocessor control optimizes reliability
3. Input power factor correction
4. Output power factor 0.8
5. Wide input voltage (110 v- 300 v)
6. Converter mode available
7. ECO mode for energy saving
8. Generator compatible
9. Charger capacity expansion to 6A for long-run models
10. Smart SNMP works well with either USB or RS-232 together
11. Comprehensive display allows easy monitoring and access of UPS status
Specification:
| MODEL | GH-1K (L) | GH-2K (L) | GH-3K (L) | ||||
| CAPACITY | 1000 VA / 800 W | 2000 VA / 1600 W | 3000 VA / 2400 W | ||||
| INPUT | |||||||
| Nominal Voltage | 100/110/115/120/127VAC or 200/208/220/230/240VAC | ||||||
| Input Voltage Range | 55-145 VAC or 110-300 VAC | ||||||
| Frequency Range | 40Hz ~ 70 Hz | ||||||
| Power Factor | ≥ 0.99 @ Nominal Voltage (100% load)oad)oad) | ||||||
| OUTPUT | |||||||
| Voltage Regulation | 110v/220v ± 1%usmn; 1%usmn; 1% | ||||||
| Frequency Range | 50 Hz or 60Hz ± 0.1 Hz; 0.1 Hz; 0.1 Hz | ||||||
| Current Crest Ratio | 3:1 | ||||||
| Harmonic Distortion | ≤ 3 % THD (Linear Load)oad)oad) ≤ 6 % THD (Non-linear Load)oad)oad) | ||||||
| Transfer Time | Zero | ||||||
| Waveform | Pure Sinewave | ||||||
| EFFICIENCY | |||||||
| To AC Mode | 88% | 89% | 90% | ||||
| To Battery Mode | 83% | 87% | 88% | ||||
| BATTERY | |||||||
| Standard Model | Battery Type | 12 V /9 AH | 12 V / 9AH | 12 V / 9 AH | |||
| Numbers | 2 | 4 | 6 | ||||
| Recharge Time | 4 hours recover to 90% capacity | ||||||
| Charging Current | 1.0 A | ||||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||||
| Numbers | 3 | 6 | 8 | ||||
| Charging Current | 1.0A/2.0A/4.0A/6.0 A | ||||||
| PHYSICAL | |||||||
| Standard Model | Dimension | 285*145*220mm | 395*145*240mm | 415*190*337mm | |||
| Net Weight | 9.3kg | 18.6kg | 30kg | ||||
| Long-run Model | Dimension | 282*145* 220mm | 397*145*220mm | ||||
| Net Weight | 4.6kg | 6.8kg | 7.4kg | ||||
