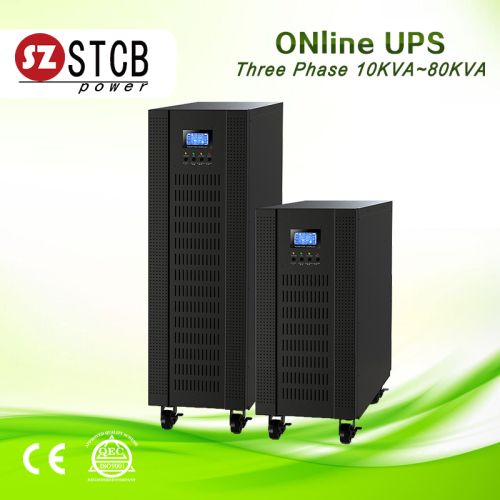

3*380V UPS 10kVA 20kVA 30kVA Accept 380V/220V Output

1150-2800 USD

Model NO.	GH33 series ups
Type	On-line
Application	Defence
Standby UPS	Sine Wave Output UPS
Transfer Time	0 Ms
Phase Type	3 Phase Input & OutputOutpututput
Warranty	12 Months
Transport Package	Cartons, Pallet
HS Code	8504402000
Phase	Three Phase
Protection	Over Voltage / Short Circuit
Standby Time	Long-acting Machine
Output Capacity	Large Type
Power Efficiency	0.8
Battery Type	Sealed Lead Acid Maintenance-Free Battery
Trademark	STCB
Origin	Guangzhou Shenzhen

3*380v ups 10kva 20kva 30kva accept 380v/220v output
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range (110-300 VAC)
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. Eco mode operation for energy saving (ECO)
8. Accepts dual power inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14. Maintenance bypass available
15. Optional N+X parallel redundancy
16. Optional isolation transformer offers full isolation and complete common mode noise rejection
Specification:

MODEL		GH33 10K(L)		GH33 15K (L)	GH33 20K (L)	GH33 30K (L)
PHASE		3 phase in & 3 phase oute oute out
CAPACITY		10000VA 8000W		15000VA 12000W	20000VA 16000W	30000VA 24000W
INPUT
Nominal Voltage		3 x 400 VAC (3Ph+N)
Voltage Range		305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load
Frequency Range		46~54 Hz or 56~64Hz
Power Factor		≥ 0.99 @ 100% loadloadload
OUTPUT
Output Voltage		3 x 400 VAC (3Ph+N)
Frequency Range		46~54Hz or 56~64Hz
Current Crest Ratio		3:1 (max.)
Harmonic Distortion		≤2 % THD (Linear Load)oad)oad) ≤5 % THD (Non-linear Load)oad)oad)
Transfer Time		zero
Waveform		Pure Sine Wave
EFFICIENCY
AC Mode		89%	89%		89%	90%
Battery Mode		86%	88%		87%	89%
BATTERY
Standard Model	Battery Type	12 V / 9 AH
	Numbers	18/20 pcs	2* 18/20 pcs			3* 18/20 pcs
	Recharge Time	9 hours recover to 90% capacity
	Charging Current	1A	2A		2A	4A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)tteries)tteries)
Long-run Model	Battery Type	Depending on the capacity of external batteries
	Numbers
	Charging Current	4A	4A		4A	12A
	Charging Voltage	273 VDC ± 1%(based on 20 pcs batteries)tteries)tteries)
INDICATORS
LCD Panel		UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions
ALARM
Battery Mode		Sounding every 4 seconds
Low Battery		Sounding every second
Overload		Sounding twice every second
Fault		Continuously sounding
PHYSICAL
Standard Model	Dimension	815250826	815250826		815250826	8153001000
	Net Weight	109kg	164kg		164kg	234kg
Long-run Model	Dimension	592250826	592250826		592250826	815250826
	Net Weight	38kg	40kg		40kg	64kg
ENVIRONMENT
Operation Humidity		0-95 % RH @ 0- 40°C (non-condensing)sing)sing)
Noise Level		Less than 60dB	Less than 65dB
MANAGEMENT
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008,2008,2008, Windows® 7/8, Linux, Unix, and MACd MACd MAC
Optional SNMP		Power management from SNMP manager and web browser

* Product specifications are subject to change without further notice
