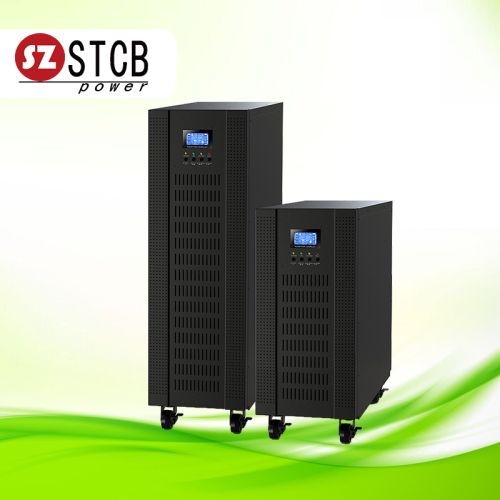

Gh33 3 Phase UPS 380V 10kVA~120kVA
| Model NO. | GH33 ups |
| Type | On-line |
| Application | Defence |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Power Efficiency | 0.8@10-30kVA,0.9@40~120kVA |
| Battery Type | Sealed Lead Acid Maintenance-Free Battery |
| Trademark | STCB |
| Origin | Guangzhou Shenzhen |
| Phase | Three Phase |
| Protection | Over Voltage / Short Circuit |
| Standby Time | Long-acting Machine |
| Output Capacity | Large Type |
| Transfer Time | 0 Ms |
| Phase Type | 3 Phase Input & OutputOutpututput |
| Warranty | 12 Months |
| Transport Package | Cartons, Pallet |
| HS Code | 8504402000 |
GH33 3 phase ups 380v 10kva~120kva
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range (110-300 VAC)
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. Eco mode operation for energy saving (ECO)
8. Accepts dual power inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14. Maintenance bypass available
15. Optional N+X parallel redundancy
16. Optional isolation transformer offers full isolation and complete common mode noise rejection
Specification:
Main Features:
1. True double-conversion
2. DSP technology guarantees high performance
3. Output power factor 0.8
4. Wide input voltage range (110-300 VAC)
5. Active power factor correction in all phases
6. 50Hz/60Hz frequency converter mode
7. Eco mode operation for energy saving (ECO)
8. Accepts dual power inputs
9. Emergency power off function (EPO)
10. Generator compatible
11. SNMP+USB+RS-232 multiple communications
12. 3-stage extendable charging design for optimized battery performance
13. Adjustable battery numbers
14. Maintenance bypass available
15. Optional N+X parallel redundancy
16. Optional isolation transformer offers full isolation and complete common mode noise rejection
Specification:
| MODEL | GH33 10K(L) | GH33 15K (L) | GH33 20K (L) | GH33 30K (L) | ||
| PHASE | 3 phase in & 3 phase oute oute out | |||||
| CAPACITY | 10000VA 8000W | 15000VA 12000W | 20000VA 16000W | 30000VA 24000W | ||
| INPUT | ||||||
| Nominal Voltage | 3 x 400 VAC (3Ph+N) | |||||
| Voltage Range | 305-478 VAC (3-phase) @ 100% load 190-520 VAC (3-phase) @ 50% load | |||||
| Frequency Range | 46~54 Hz or 56~64Hz | |||||
| Power Factor | ≥ 0.99 @ 100% loadloadload | |||||
| OUTPUT | ||||||
| Output Voltage | 3 x 400 VAC (3Ph+N) | |||||
| Frequency Range | 46~54Hz or 56~64Hz | |||||
| Current Crest Ratio | 3:1 (max.) | |||||
| Harmonic Distortion | ≤2 % THD (Linear Load)oad)oad) ≤5 % THD (Non-linear Load)oad)oad) | |||||
| Transfer Time | zero | |||||
| Waveform | Pure Sine Wave | |||||
| EFFICIENCY | ||||||
| AC Mode | 89% | 89% | 89% | 90% | ||
| Battery Mode | 86% | 88% | 87% | 89% | ||
| BATTERY | ||||||
| Standard Model | Battery Type | 12 V / 9 AH | ||||
| Numbers | 18/20 pcs | 2* 18/20 pcs | 3* 18/20 pcs | |||
| Recharge Time | 9 hours recover to 90% capacity | |||||
| Charging Current | 1A | 2A | 2A | 4A | ||
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries)tteries)tteries) | |||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | ||||
| Numbers | ||||||
| Charging Current | 4A | 4A | 4A | 12A | ||
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries)tteries)tteries) | |||||
| INDICATORS | ||||||
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions | |||||
| ALARM | ||||||
| Battery Mode | Sounding every 4 seconds | |||||
| Low Battery | Sounding every second | |||||
| Overload | Sounding twice every second | |||||
| Fault | Continuously sounding | |||||
| PHYSICAL | ||||||
| Standard Model | Dimension | 815*250*826 | 815*250*826 | 815*250*826 | 815*300*1000 | |
| Net Weight | 109kg | 164kg | 164kg | 234kg | ||
| Long-run Model | Dimension | 592*250*826 | 592*250*826 | 592*250*826 | 815*250*826 | |
| Net Weight | 38kg | 40kg | 40kg | 64kg | ||
| ENVIRONMENT | ||||||
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing)sing)sing) | |||||
| Noise Level | Less than 60dB | Less than 65dB | ||||
| MANAGEMENT | ||||||
| Smart RS-232/USB | Supports Windows® 2000/2003/XP/Vista/2008,2008,2008, Windows® 7/8, Linux, Unix, and MACd MACd MAC | |||||
| Optional SNMP | Power management from SNMP manager and web browser | |||||
| Model | GH 3/3 30K (L) | GH 3/3 40K (L) | GH 3/3 60KL | GH 3/3 80KL | |
| PHASE | 3-phase in/3-phase out | ||||
| CAPACITY | 30KVA/27KW | 40KVA/36KW | 60KVA/54KW | 80KVA/72KW | |
| INPUT | |||||
| Nominal Voltage | 3 x 400 VAC (3 Ph+N) | ||||
| Voltage Range | 190-520 VAC (3-Phase) @ 50% Load; 305-478 VAC (3-Phase) @ 100% Load | ||||
| Frequency Range | 46~54 Hz or 56~64 Hz | ||||
| Power Factor | ﹥= 0.99 @ 100% LoadLoad | ||||
| OUTPUT | |||||
| Output Voltage | 3 x 360*/380/400/415 VAC (3 Ph+N) | ||||
| AC Voltage Regulation (Batt. Mode) | ± 1%usmn; 1%usmn; 1% | ||||
| Frequency Range (Synchronized Range) | 46~54 Hz or 56~64 Hz | ||||
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60Hz ± 0.1 Hz± 0.1 Hz 0.1 Hz± 0.1 Hz | ||||
| Current Crest Ratio | 3:1 (max.) | ||||
| Harmonic Distortion | <= 2 % THD (Linear Load); <= 5 % THD (Non-linear Load)r Load) | ||||
| Transfer Time | AC Mode to Batt. Mode | Zero | |||
| Inverter to Bypass | Zero | ||||
| Waveform (Batt. Mode) | Pure Sinewave | ||||
| Overload | AC Mode | 100-110% for 10 min, 110-130% for 1 min, ﹥130% for 1 secondcond | |||
| Battery Mode | 100-110% for 30 seconds, 110-130% for 10 seconds, ﹥130% for 1 secondecond | ||||
| Parallel Capacity | up to 3 units in parellel | ||||
| EFFICIENCY | |||||
| AC Mode | 95.00% | ||||
| ECO Mode | 98.00% | ||||
| Battery Mode | 92.00% | 92.00% | 92.00% | 92.00% | |
| BATTERY | |||||
| Standard Model | Battery Type | 12 V / 7 Ah | 12 V / 9 Ah | N/A | |
| Numbers | (16+16) pcs x 2 strings | (16+16) pcs x 2 strings | |||
| Recharge Time | 9 hours recover to 90% capacity | ||||
| Charging Current (Max.) | 2A | ||||
| Charging Voltage | ± 218 VDC 218 VDC 218 VDC | ||||
| Long-run Model | Battery Type | Depending on the capacity of external batteries | |||
| Numbers | 32~40 pcs (Adjustable) | ||||
| Charging Current (Max.) | 4A | 8A | |||
| Charging Voltage | ± 13.65V x N (N=16~20)N=16~20)N=16~20) | ||||
| INDICATORS | |||||
| LCD Display | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault | ||||
| ALARM | |||||
| Battery Mode | Sounding every 4 seconds | ||||
| Low Battery | Sounding every second | ||||
| Overload | Sounding twice every second | ||||
| Fault | Continuously sounding | ||||
| PHYSICAL | |||||
| Standard Model | Dimension | 815 x 300 x 1000mm | N/A | ||
| Net Weight (kgs) | 205 | 230 | |||
| Long-run Model | Dimension | 815 x 300 x1000mm | 790 x 360 x 1010mm | ||
| Net Weight (kgs) | 60 | 61 | 108 | 113 | |
| ENVIRONMENT13 | |||||
| Operation Temperature | 0-40 °Cdeg;Cdeg;C | ||||
| Operation Humidity | < 95% and non-condensingsing | ||||
| Noise Level | Less than 75dB @1Meter | ||||
| MANAGEMENT | |||||
| Smart RS-232/USB | Supports Windows 2000/2003/XP/Vista/2008, Windows 7/8/10, Linux, Unix, and MAC | ||||
| Optional SNMP | Power management from SNMP manager and web browser | ||||
