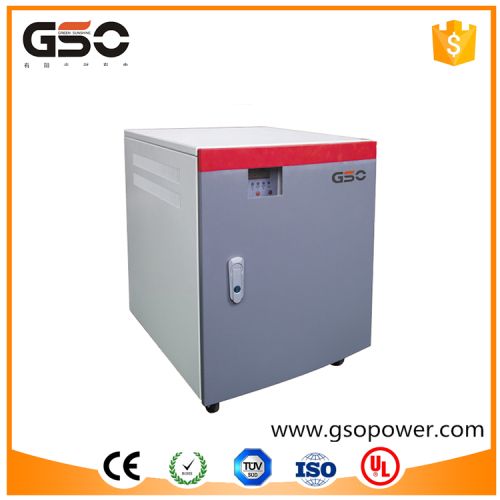

Solar PV Supplier of All-in-One 500W Solar System
| Model NO. | GSS-500W |
| Certification | ISO, CE |
| Specification | Normal, CE, ISO9001, TLC, CQC |
| Solar System Power | 500W |
| Inverter | 1000W 230VAC/50Hz |
| Controller | 24V30A PWM Charge Controller |
| Battery Capacity | 12V 150ah AGM Battery |
| Warranty | Two Years |
| Transport Package | Standard Carton Box or Wooden Pallet |
| HS Code | 8504402000 |
| Condition | New |
| Application | Home, Industrial, Commercial |
| System Voltage | 24V |
| Panel Material | Polycrystalline 260W |
| Output Waveform | Pure Sine Wave |
| Diplay | LCD & LEDp; LED; LED |
| Battery Connect | Internal |
| Trademark | GSO |
| Origin | Jiangsu, China |
1. Genernal information:
This Solar system not only have solar power system function, but also have utility complementary function.When main power off , the solar system can switch automatically to take use off solar power from battery to run load.
When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power .At the same time charging battery.This is very suit for home use.
2. Solar System characteristic
(1). All Systems have LCD digital display which allows you to see the system working, (eg) Charge data, System voltage, Daily power consumption and temperature.
(2). All system have automatic switch , If mains power goes off the system will switch automatically over to battery power, When mains power resumes the system will switch back automatically.The batteries will resume recharging automatically.
(3). All inverters are Pure Sine Wave inverters.This allows the use of Air Conditioners and refrigerators without any problem.
(4). Each component has a single chip detector.Assembled by the IPM or IGBT of Mitsubishi
This protects the system from Overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuit, Reverse Polarity.
(5). Your system can be updated very easily.Just by adding extra components your system will increase power capacity.
(6). Battery optional, you can purchase from us or locally.
(7). Simple to install, just follow installation instructions.
(8). Our System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.
3. Services
GSO offers you solar system solutions and one-stop shopping services.
4. Function Description
5.System Configuration
Remarks:
1. The system can meet 2 rainy days working.
2. Different types of load, such as inductive load and resistive load has the diffferent staring current.
3. The sytem can meet 300W inductive load 4 hours work or 500W resistive load 1.4 hours work.
For more details pls send us an inquiry↓y↓arr;y↓
Contact Info.:
Attn: Ms. Mary Qian
Tel: +86 551 65615695
Mob.: +86 139 56974669
Web.: www.gsopower.com
This Solar system not only have solar power system function, but also have utility complementary function.When main power off , the solar system can switch automatically to take use off solar power from battery to run load.
When solar power not enough and power off , it can switch automatically to main power and connect with grid electricity take use of main power .At the same time charging battery.This is very suit for home use.
2. Solar System characteristic
(1). All Systems have LCD digital display which allows you to see the system working, (eg) Charge data, System voltage, Daily power consumption and temperature.
(2). All system have automatic switch , If mains power goes off the system will switch automatically over to battery power, When mains power resumes the system will switch back automatically.The batteries will resume recharging automatically.
(3). All inverters are Pure Sine Wave inverters.This allows the use of Air Conditioners and refrigerators without any problem.
(4). Each component has a single chip detector.Assembled by the IPM or IGBT of Mitsubishi
This protects the system from Overloads, Low Voltage and Under Voltage (alarm) Over Heating, Short circuit, Reverse Polarity.
(5). Your system can be updated very easily.Just by adding extra components your system will increase power capacity.
(6). Battery optional, you can purchase from us or locally.
(7). Simple to install, just follow installation instructions.
(8). Our System offers Cutting Edge Technology, State of the Art Quality with Greater Functionality than our competitors, at Competitive prices.
3. Services
GSO offers you solar system solutions and one-stop shopping services.
4. Function Description
| Load Name | Specifications & Modelsodelsodels | Power Consumption | The daily working time | Day Power Consumption |
| Lighting | Energy saving lamp,Daylight lamp | 60W | 4H | 240WH |
| Television | 27.6Inch | 100W | 4H | 400WH |
| Electric Fan | 100W | 4H | 400WH | |
| Satellite TV receiver | 30W | 4H | 120WH | |
| Kinds of Battery | 10W | 4H | 40WH |
5.System Configuration
Device Name | Model | Quantity |
| PV Array | 250W | 2 Pieces |
| PV Controller & Inverter Integrated Machinechinechine | GSA24-20A/500W | 1 Pieces |
| Battery | 12-150Ah | 2 Pieces |
| Trestle & Cable Socketocketocket | 1Set |
Remarks:
1. The system can meet 2 rainy days working.
2. Different types of load, such as inductive load and resistive load has the diffferent staring current.
3. The sytem can meet 300W inductive load 4 hours work or 500W resistive load 1.4 hours work.
For more details pls send us an inquiry↓y↓arr;y↓
Contact Info.:
Attn: Ms. Mary Qian
Tel: +86 551 65615695
Mob.: +86 139 56974669
Web.: www.gsopower.com
