1 Introduction

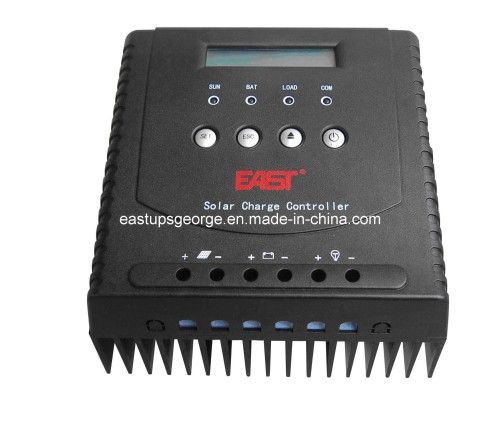

GSC-F2448 solar charge controller is a highly intelligent charge controller with Maximum Power Point Tracking(MPPT), which can charge 12V/24V/48V batteries with battery voltage level automatic identification. Advanced professional MPPT control algorithm is applied to achieve the optimal and intelligent 'MPPT + SOC' charge control. It is especially designed to be low own power consumption by applying advanced low-power, high-performance microcontroller, PWM charging mode and other dedicated hardware circuits. The controller is robust, maintenance-free and user-friendly with the reverse polarity protection, lightning protection, electronic fuse and automatic detection of faulty battery,ty battery,
2 Product Features
﹥﹥ Maximum Power Point Tracking of photovoltaic(PV) module module
﹥﹥ Hybrid controller, MPPT+SOC double intelligent controlcontrol
﹥﹥ 12V/24V/48V batteries voltage automatic identificationication
﹥﹥ Low-loss MOSFET type transistors in parallelarallel
﹥﹥ Soft switching technology and synchronous rectificationication
Applied technology
﹥﹥ Multistage charging technologyhnology
﹥﹥ PWM controlcontrol
﹥﹥ Load disconnection depending on SOC on SOC
﹥﹥ Temperature compensationnsation
Electronic protection functions
﹥﹥ Overcharge protectiontection
﹥﹥ Deep discharge protectiontection
﹥﹥ Short circuit protection of load and PV module module
﹥﹥ Overtemperature and overload protectiontection
﹥﹥ Reverse current protection at nightt night
﹥﹥ Reverse polarity protection of battery, load and PV module module
Displays
﹥﹥ Multi-coloured LEDs indicate operating states states
﹥﹥ Real-time calendar displaydisplay
﹥﹥ LCD indicates real-time datame data
Operation
﹥﹥ Operation by the control buttonsbuttons
﹥﹥ Manual load switch switch
Certificates
﹥﹥ Manufactured according to ISO 9001 and ISO 14001O 14001
﹥﹥ Compliant with European Standards (CE)ds (CE)
﹥﹥ RoHS compliantmpliant
