FeaturesHigh Efficiency, High BenefitsMaximum conversion efficiency up to 97.6%Advanced MPPT technology with MPPT efficiency up to 99.9%Wide input voltage range (100 Vdc ~ 580 Vdc), flexible configuration for solar panelsEasy Installation, Flexible OperationSmall footprintWaterproof and dustproof (IP65) designNo fan, low noise (noise level < 30 dB), suit for indoor installationPluggable waterproof connector, easy installation and maintenanceKnock activated LCD; RS485 / Wi-Fi / GPRS communicationsRobust and Reliable; Lasting BenefitsIntelligent failure detection, alarm and protectionsNatural cooling; 25 years lifetimeWide operating temperature range -25ºC ~ +60ºC, continuous power generation at full load in high temperature environmentTUV / CE / CQC certifiedSpecificartionsSpecificartions

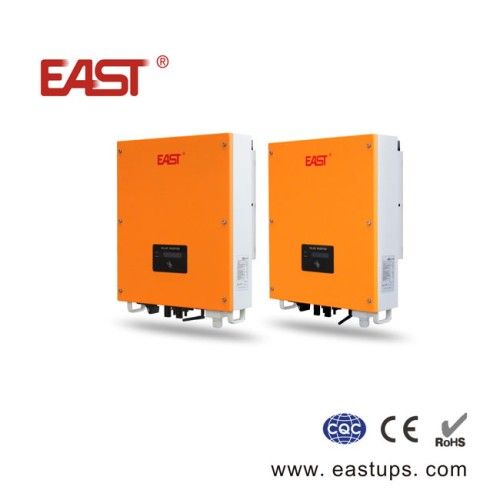

| MODEL | EA3KLPV | EA5KLPV |
| INPUT (DC) |
| Max. DC input power | 3200 W | 5300 W |
| Max. DC input voltage | 580 V | 580 V |
| Starting voltage | 150 V | 150 V |
| Rated voltage | 380 V | 380 V |
| DC input voltage range | 100 V ~ 580 V | 100 V ~ 580 V |
| Full-load MPPT voltage range | 210 V ~ 500 V | 175 V ~ 500 V |
| Max. input current | 15 A | 15 A |
| Number of independent MPP inputs | 1 | 2 |
| Max. number of PV strings | 1 | 1 |
| DC switch | Optional | Optional |
| OUTPUT (AC) |
| Rated AC output power | 3000 W | 4600 W / 5000 W |
| Max. AC output power | 3000 W | 5000 W |
| Max. AC output current | 15 A | 23 A |
| Rated output voltage range | 220 V / 230 V / 240 V; 180 V ~ 270 V |
| Rated grid frequency range | 50 / 50 ± 5 Hz, 60 / 60 ± 5 Hz0 ± 5 Hzn; 5 Hz0 ± 5 Hz |
| Power factor | 1 |
| THD (rated output) | < 3% |
| EFFICIENCY |
| Max. efficiency | 97.4% | 97.6% |
| Europe efficiency | 96.5% | 97.1% |
| MPPT efficiency | 99.9% | 99.9% |
| PROTECTIONS |
| DC input reverse polarity protection | Yes |
| Input DC impedance monitoring | Yes |
| Leakage protection | Yes |
| AC short-circuit protection | Yes |
| Mains power monitoring | Yes |
| Output DC component detection | Yes |
| GENERAL DATA |
| Self-consumption (at night) | < 0.5 W |
| Isolation type | Transformerless |
| Display | 2 × LED & LCDD & LCD LCDD & LCD |
| Communications | RS485 / Wi-Fi / Zigbee |
| Cooling | Natural cooling |
| Noise | < 30 dB0 dB |
| Operating temperature | - 25 °C ~ +60 °C60 °Ceg;C60 °C |
| Relative humidity | 0 ~ 95% non-condensing |
| Altitude | 2000 m |
| IP rating | IP 65 |
| Installation environment | Outdoor or indoor |
| Installation method | Wall mounting |
| Dimensions (W × D × H) (mm)imes; H) (mm)imes; H) (mm) | 360 × 400 × 1500 × 150s; 1500 × 150 | 395 × 460 × 1750 × 175s; 1750 × 175 |
| Packaged dimensions (W × D × H) (mm)imes; H) (mm)imes; H) (mm) | 435 × 540 × 2400 × 240s; 2400 × 240 | 465 × 590 × 2550 × 255s; 2550 × 255 |
| Net weight (kg) | 16.5 | 21.8 |
| Gross weight (kg) | 18.75 | 25 |
