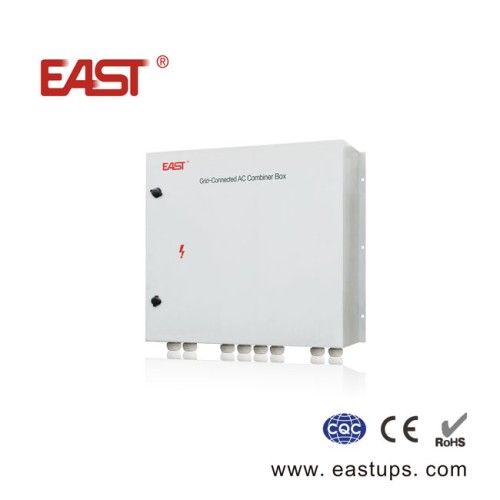

Grid-Connected AC Combiner Box Eapdcb-6L1 / Eapdcb-7L1

bargain

Model NO.	EAPDCB-6L1 / EAPDCB-7L1
Transport Package	Carton Box
HS Code	8504403090
Trademark	EAST/OEM
Origin	China

AC combiner box in grid tie systems is used to bring together the output of multiple PV inverters and then connect to the grid. It could lessen the cable for the connecting between inverters and the grid. To a large extent it reduces distribution material cost and workload.
Features
Protection class IP65 for outdoor useSimply wiring, easy operation, reducing the wiring workloadHigh efficiency and strong security with standard configuration of AC lightning protection modulesWall mounting with small volume and light weight, reducing installation time.Specifications

MODEL	EAPDCB-6L1	EAPDCB-7L1
Max. input voltage	600 Vac ± 15%smn; 15%smn; 15%
Rated insulation voltage	690 Vac
Rated frequency	50 Hz
Rated working current of branch	50 A
Rated working current of Bus	300 A	350 A
Valid value of rated short-time withstand current Icw (1 s) (KA)	10
Max. value of rated short-time withstand current Ipk (KA)	10
Low frequency withstand voltage for 1 min	2500 Vac
IP rating	IP 65; IP 20 after open the door
Lightning protection level	Class C
Fire-resistance rating	UL 790 - Class C
Service life	More than 10 years
Mounting	Wall bracket
Cable entry & exit exit exit	Bottom entry / exit
Dimensions (W × D × H) (mm)imes; H) (mm)imes; H) (mm)	720 × 820 × 1700 × 170s; 1700 × 170
