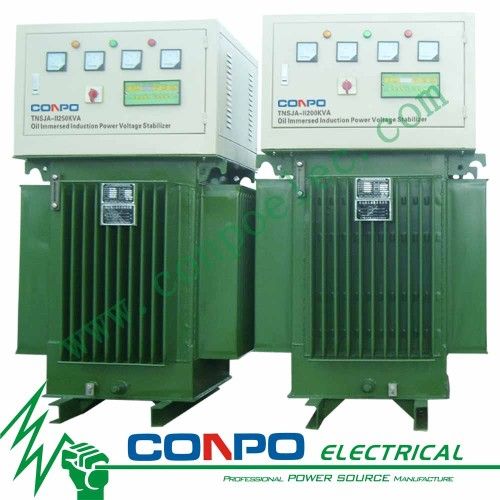

Tnsja-II200kVA Industrial Oil-Immersed Induction (contactless) Voltage Regulator/Stabilizer
bargain
add to cart| Model NO. | TNSJA-II200KVA (the 2nd generation technology) |
| Phase | Three Phase |
| Usage | Three-Phase, Four-Wire System |
| Iron Core Shape | Oil-Immersed AVR |
| Brand | Conpo |
| Specification | 200KVA/3Phase, Oil-immersed Induction AVR |
| HS Code | 8504401990 |
| Current Type | AC |
| Frequency Characteristics | Low Frequency |
| Frequency | 50Hz/60Hz |
| Application Range | Used in Region Where The Net Voltage Is Flucuating |
| Trademark | CONPO |
| Origin | Nanjing, China |
1.Summary :
TNSJA-II series the 2nd generation Industrial Oil-immersed Induction(Brushless/Stepless) Voltage Stabilizer is composed of voltage regulator and transformer SSTS (including, oil tank, stator, rotor top Cover, drive control motor M, hand wheel, control circuit board and secondary circuit elements for voltage regulation control. It achieves the rotational voltage regulation through electric motor drive or hand wheel and gear coupling within the rotation range of 1800. Besides, it is provided with the electric SS limit and mechanical limit on the upper end of the oil tank. For electric SS limit, the power supply of motor is switched off by a limit switch and for the mechanical limit, the rotational limit is stopped by bolt protector. The stator winding and rotor winding are fixed by the base frame and put into the oil tank with 10 # transformer oil. When the load generates heat, the heat dissipates from the radiating pipe by the way of Oil-immersed cooling. The oil immersed voltage stabilizer has the functions of phase failure, phase loss, overvoltage and over-current protections, and its main circuit has the characteristics of contactless voltage regulation, no mechanical wearing, no spark, no interference and low failure rate. In addition, this voltage stabilizer has the advantages of high impact resistance, super strong instantaneous overload capacity, long service life and maintenance free
2. Application:
This serial product is widely used in Industry, Traffic, Defense, Rail Ways, Large machine tool, Metal Processing Equipments, Production Line, Air Conditioner, Broadcast Television, Building Lighting Equipment and other Equipments which need stable voltage, and are highly suitable to the equipments which needs high reliable and high stable power supply, or equipments in high amplitude of fluctuation voltage net.
3. Feature s:
1). Stepless voltage adjustment (brushless)
With inductive and contactless voltage regulation, the voltage stabilizer can increase and decrease the load voltage linearly.
2). Excellent features
By using high-magnetic-inductivity silicon steel sheet made in Japan, this voltage stabilizer minimizes the no-load loss and no-load current, and with its performance utilized best, reduces power loss.
3). Robust, durable and long life expectancy
The internal body of this voltage stabilizer is induction voltage regulator IVR, containing no carbon brush and its main characteristics are permanent wear-proof, robust and long service life.
4). High efficiency, and low power consumption
Efficiency: ﹥98%, Power consumptiontion ≤≤le;≤ 1%
4.Specification s:
4. Packing Details:
TNSJA-II series the 2nd generation Industrial Oil-immersed Induction(Brushless/Stepless) Voltage Stabilizer is composed of voltage regulator and transformer SSTS (including, oil tank, stator, rotor top Cover, drive control motor M, hand wheel, control circuit board and secondary circuit elements for voltage regulation control. It achieves the rotational voltage regulation through electric motor drive or hand wheel and gear coupling within the rotation range of 1800. Besides, it is provided with the electric SS limit and mechanical limit on the upper end of the oil tank. For electric SS limit, the power supply of motor is switched off by a limit switch and for the mechanical limit, the rotational limit is stopped by bolt protector. The stator winding and rotor winding are fixed by the base frame and put into the oil tank with 10 # transformer oil. When the load generates heat, the heat dissipates from the radiating pipe by the way of Oil-immersed cooling. The oil immersed voltage stabilizer has the functions of phase failure, phase loss, overvoltage and over-current protections, and its main circuit has the characteristics of contactless voltage regulation, no mechanical wearing, no spark, no interference and low failure rate. In addition, this voltage stabilizer has the advantages of high impact resistance, super strong instantaneous overload capacity, long service life and maintenance free
2. Application:
This serial product is widely used in Industry, Traffic, Defense, Rail Ways, Large machine tool, Metal Processing Equipments, Production Line, Air Conditioner, Broadcast Television, Building Lighting Equipment and other Equipments which need stable voltage, and are highly suitable to the equipments which needs high reliable and high stable power supply, or equipments in high amplitude of fluctuation voltage net.
3. Feature s:
1). Stepless voltage adjustment (brushless)
With inductive and contactless voltage regulation, the voltage stabilizer can increase and decrease the load voltage linearly.
2). Excellent features
By using high-magnetic-inductivity silicon steel sheet made in Japan, this voltage stabilizer minimizes the no-load loss and no-load current, and with its performance utilized best, reduces power loss.
3). Robust, durable and long life expectancy
The internal body of this voltage stabilizer is induction voltage regulator IVR, containing no carbon brush and its main characteristics are permanent wear-proof, robust and long service life.
4). High efficiency, and low power consumption
Efficiency: ﹥98%, Power consumptiontion ≤≤le;≤ 1%
4.Specification s:
| TNSJA-II series the 2nd generation Industrial Oil-immersed Induction(Brushless/Stepless)Voltage Regulator | |
| Input voltage | 380V+/-15%(other input voltage range, such as 20% etc. please specify when ordering) |
| Output voltage | 380VAC(adjustable) |
| Output voltage accuracy | +/-1~5% adjustable (factory set value: +/-2%) |
| Frequency | 50Hz/60Hz |
| Power factor | 0.8 |
| Response time | <0.5s |
| Efficiency | >95% |
| Dielectric strength | 3000V/60s |
| Insulation resistance | >20MΩΩOmega;Ω |
| Waveform distortion | No additional waveform distortion |
| Ambient temperature | -10ºCordm;Cordm;C~+40ºCordm;Cordm;C |
| Temperature rise | ≤≤le;≤65ºCordm;Cordm;C |
| Relative humidity | <95% |
| Noise | <55dB55dB |
| Cooling system | Oil-immersed self-cooled |
| Protection | Over-voltage(set value:430V):under-voltage(set value: 350V), phase sequence, and fault alarm etc. protection functions. |
| Customize option for specification and availability, please contact CONPO! | |
| Model | Main. Specifications | Qty. per pkg | Package size | Remarks |
| TNSJA-II100KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 900*900*1600mm | Custom-made specifications are acceptable |
| TNSJA-II150KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1000*1000*1680mm | Custom-made specifications are acceptable |
| TNSJA-II200KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1000*1000*1680mm | Custom-made specifications are acceptable |
| TNSJA-II250KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1000*1000*1680mm | Custom-made specifications are acceptable |
| TNSJA-II300KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1070*1070*1780mm | Custom-made specifications are acceptable |
| TNSJA-II350KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1070*1070*1780mm | Custom-made specifications are acceptable |
| TNSJA-II400KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1070*1070*1780mm | Custom-made specifications are acceptable |
| TNSJA-II500KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1070*1070*1780mm | Custom-made specifications are acceptable |
| TNSJA-II600KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1460*1460*1950mm | Custom-made specifications are acceptable |
| TNSJA-II700KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1460*1460*1950mm | Custom-made specifications are acceptable |
| TNSJA-II800KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1460*1460*1950mm | Custom-made specifications are acceptable |
| TNSJA-II900KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1460*1460*1950mm | Custom-made specifications are acceptable |
| TNSJA-II1000KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1500*1500*2280mm | Custom-made specifications are acceptable |
| TNSJA-II1250KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1500*1500*2280mm | Custom-made specifications are acceptable |
| TNSJA-II1600KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1600*1500*2310mm | Custom-made specifications are acceptable |
| TNSJA-II1800KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1600*1500*2310mm | Custom-made specifications are acceptable |
| TNSJA-II2000KVA | 3Phase, Vi: 380V+/-20%, Vo: 380V+/-1~5% adjustable, Oil-immersed Induction AVR, | 1pc | 1600*1500*2310mm | Custom-made specifications are acceptable |
