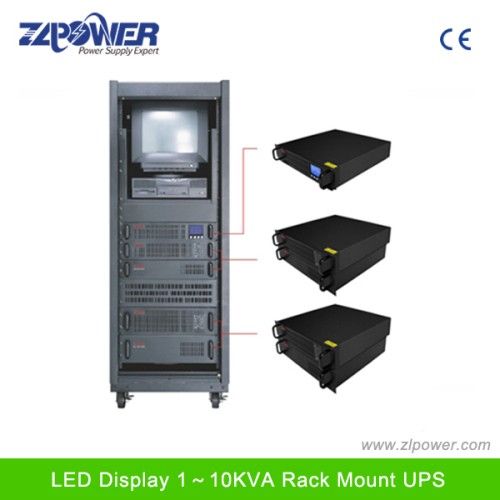

Single Phase Rack Mount UPS

150-1000 USD

Model NO.	RM1K~RM10KL
Type	On-line
Rated Power	1kVA~10kVA
Waveform	Pure Sine Wave
Communication Software	RS232
Operating Temperature	0~40centi-Degree
Frequency	50Hz/60Hz
Trademark	ZLPOWER
Origin	China
Phase	Single Phase
Protection	Overcurrent
Input Phase	Single Phase with Ground
Current Crest Factor	3:1
Transfer Time	0ms
Operating Humidity	20~90% Non-Condensing
Input Voltage	220/230/240VAC
Specification	CE
HS Code	8504402000

1KVA~10KVA Rack mount High frequency online UPS is specially designed for servers, data-center critical network devices, sensitive electronic equipment, telecom, bank, hospital, bureau, traffic, public security, ATM and so on.
Main Features:
1. True online double conversion technology with advanced microprocessor control
2. PWM Technology with IGBTS
3. LED Indicators display Detailed Real-Time UPS Status and parameters.
4. Set Output Voltage, Frequency parameter and bypass function on the display.
5. Advanced MCU microprocessor control technology, ensure long life reliability.
6. Wide input voltage range, Zero transfer time
7. Rack mount 19'design to save space space
8. Excellent Protection against over voltage, over load, over current, over charge and so on.
9. Input L and N lines reverse wiring detection, Auto start when AC back.
10. DC start function, Input PFC revise function.
11. Humanization bypass output can be adjustable.
12. Smart RS232 communication with monitoring software.
13. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.
14. Strong antijamming capability.
15. Available to work with generators.
16. Lightning, surge, short circuit, Network/fax/modem surge protection.

Rack Mount UPS Model		RM1KE	RM2KE	RM3KE	RM1KE-L	RM2KE-L	RM3KE-L	RM6KE-L	RM10KE-L
Rated Power	VA/W	1kVA/0.8kW	2kVA/1.6kW	3kVA/2.4kW	1kVA/0.8kW	2kVA/1.6kW	3kVA/2.4kW	6kVA/4.8kW	10Kva/8Kw
Input	Phase	Single Phase with Ground
	Nominal Voltage	110/115/120Vac or 220/230/240Vac						220/230/240Vac
	Voltage Range	60-138VAC or 115 ~ 300VAC						176 ~ 276VAC
	Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz						46 ~ 54Hz
	Power Factor	0.97						0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Phase	Single Phase
	Voltage	110/115/120Vac or 220/230/240VAC ± 2%usmn; 2%usmn; 2%						110/115/120Vac or 220/230/240VAC± 1%usmn; 1%usmn; 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode)ne mode)ne mode)						46~54Hz (Line mode)
		50Hz ± 0.2Hz ( Battery mode)ry mode)ry mode)						50Hz ± 0.05Hz ( Battery mode)ry mode)ry mode)
	Waveform	Pure Sine Wave
	Overload Capability	108%~150% for 30 sec., 150% for 300 ms						105%~130% for 10 min.,130% for 1 min.
	Current Crest Ratio	3:1
	Connections	IEC320 -10A * 4	IEC320 -10A * 4	IEC320-10A and Terminal Block	IEC320 -10A * 4	IEC320 -10A * 4	IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default 'NO', user adjustable to 'YES'le to "YES"t;YES"						Yes
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC						176 ~ 261VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa						Zero
LED indicators		Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot;
		OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40°Cdeg;Cdeg;C
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	16.3	10.3	11.2	9.1	11.5	12.3	18.3	20.3
	Dimensions (L x W x H) mm	482 x 420 x 88 (2U)						600 x 482.6 x 130 (3U)
Battery Pack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	36VDC	96VDC		36VDC	96VDC		192VDC
	Battery Numbers & Capacityacityacity	3Pcs *12V7.2Ah	8Pcs *12V7.2Ah	8Pcs *12V7.2Ah	Depending on the capacity of external battery packs
	Backup Time (Full load)	5 min	9 min (with 1 BP)	5 min (with 1 BP)

	Recharge Time	5hrs to 90%	5hrs to 90%	5hrs to 90%
	Charging Current (Max.)	1.0A	1.0A	1.0A	8A±1Alusmn;1Alusmn;1A			4.2A
	Charging Voltage	41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V	110Vdc±0.4Vsmn;0.4Vsmn;0.4V		41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V	110Vdc±0.4Vsmn;0.4Vsmn;0.4V		216Vdc±1%Vusmn;1%Vusmn;1%V
	Net Weight (Kg)	---	25.3	25.3	---	---	---	---
	Dimensions (L x W x H) mm	---	482 x 420 x88 (2U)	482 x 420 x88 (2U)	---	---	---	---
