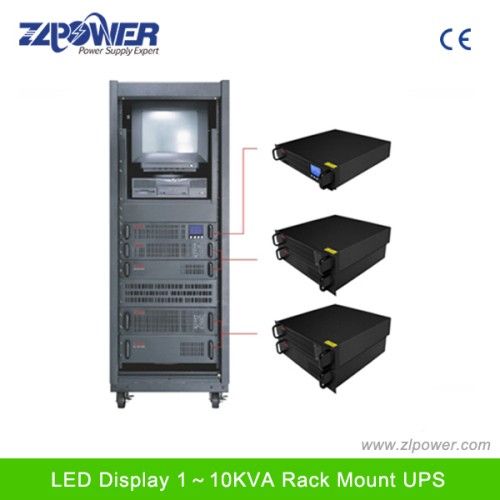

19" Online Rack Mount UPS 1k-10kVA

19" Online Rack Mount UPS 1k-10kVA

bargain

add to cart
Model NO. RM1K~RM10KL
Type On-line
Input Phase Single Phase With Ground
Frequency 46-54Hz
Trademark ZLPOWER
Origin China
Phase Single Phase
Protection Overvoltage
Nominal Voltage 110-120vac or 220-240vac
Waveform Pure Sine Wave
Specification CE
HS Code 8504402000
19' Online Rack Mount UPS 1K-10kVAK-10kVA
Rack UPS Advantages:
(1): UPS with Rack Mount design
(2): 19-Inch, 2U/3U Height Rack UPS
(3): Built-in UPS SNMP Card Slot
(4): Online, Pure Sine Wave UPS Model
Rack UPS Key Features:
1: UPS with Microprocessor control guarantees high reliability
2: Rack Mount Design
3: Comprehensive self-protection design
4: Audible alarm mute
5: Cold start function
6: Auto self-testing system while turning on UPS
7: Wide input voltage range
8: Tower and rack mount available
9' 19-inch rack mount available, with 2 U height for Rack UPS 1-3kVA, 3U for Rack UPS 6kVA -10kVA-10kVA
10: With Sealed lead acid, maintenace free UPS batteries pack
11: Built-in UPS SNMP Card Slot
12: With LCD/LED Display for UPS
13: Excellent quality same as Santak, APC and Eaton UPS
14: Can set nominal voltage, nominal frequency, and bypass voltage range via UPS LCD panel key-press
15: Protection: Overload, Short Circuit, Overcurrent, Unbalanced Loads, Overvolta. Can solve power problems, such as: Power failure, power sags, high voltage spikes, switching transients, power surges, noise, frequency
CE certificate
Delivery time: 10-15days
Rack Mount UPS Model RM1KE RM2KE RM3KE RM1KE-L RM2KE-L RM3KE-L RM6KE-L RM10KE-L
Rated Power VA/W 1kVA/0.7kW 2kVA/1.4kW 3kVA/2.1kW 1kVA/0.7kW 2kVA/1.4kW 3kVA/2.1kW 6kVA/4.8kW 10Kva/8Kw
Input Phase Single Phase with Ground
Nominal Voltage 110/115/120Vac or 220/230/240Vac 220/230/240Vac
Voltage Range 60-138VAC or 115 ~ 300VAC 176 ~ 276VAC
Frequency Range 46 ~ 54Hz(default), user adjustable within 40~60Hz 46 ~ 54Hz
Power Factor 0.97 0.98
Connection IEC320-10A inlet IEC320-16A inlet IEC320-10A inlet IEC320-16A inlet Terminal Block
Output Phase Single Phase
Voltage 110/115/120Vac or 220/230/240VAC ± 2%usmn; 2%usmn; 2% 110/115/120Vac or 220/230/240VAC± 1%usmn; 1%usmn; 1%
Frequency 46~54Hz or 50Hz ± 0.2Hz (Line mode)ne mode)ne mode) 46~54Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode)ry mode)ry mode) 50Hz ± 0.05Hz ( Battery mode)ry mode)ry mode)
Waveform Pure Sine Wave
Overload Capability 108%~150% for 30 sec., 150% for 300 ms 105%~130% for 10 min.,130% for 1 min.
Current Crest Ratio 3:1
Connections IEC320 -10A * 4 IEC320 -10A * 4 IEC320-10A and Terminal Block IEC320 -10A * 4 IEC320 -10A * 4 IEC320-10A and Terminal Block IEC320-10A * 4 and Terminal Block
Bypass Automatic Transfer on overload and UPS failure
Before UPS Power-on Default 'NO', user adjustable to 'YES'le to "YES"t;YES" Yes
Voltage Range 80~264VAC (Default), user adjustable within 80~286VAC 176 ~ 261VAC
Transfer Time 0 ms; less than 4 ms from inverter to bypass and vice versa Zero
LED indicators Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm Bypass, On battery mode, Battery low, Overload, Fault
Communications RS-232 Serial Interface
Intelligent Slot;
OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection RJ45 I/O port available for network or Fax/Modem
Environmental Operating Temperature 0 ~ 40centi-degree
Operating Humidity 20 ~ 90% non-condensing
Main Unit Net Weight (Kg) 16.3 10.3 11.2 9.1 11.5 12.3 18.3 20.3
Dimensions (L x W x H) mm 482 x 420 x 88 (2U) 600 x 482.6 x 130 (3U)
Battery Pack Type Internal Batteries External Battery Pack
Nominal DC Voltage 36VDC 96VDC 36VDC 96VDC 192VDC
Battery Numbers & Capacityacityacity 3Pcs *12V7.2Ah 8Pcs *12V7.2Ah 8Pcs *12V7.2Ah Depending on the capacity of external battery packs
Backup Time (Full load) 5 min 9 min (with 1 BP) 5 min (with 1 BP)
Recharge Time 5hrs to 90% 5hrs to 90% 5hrs to 90%
Charging Current (Max.) 1.0A 1.0A 1.0A 8A±1Alusmn;1Alusmn;1A 4.2A
Charging Voltage 41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V 110Vdc±0.4Vsmn;0.4Vsmn;0.4V 41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V 110Vdc±0.4Vsmn;0.4Vsmn;0.4V 216Vdc±1%Vusmn;1%Vusmn;1%V
Net Weight (Kg) --- 25.3 25.3 --- --- --- ---
Dimensions (L x W x H) mm --- 482 x 420 x88 (2U) 482 x 420 x88 (2U) --- --- --- ---
