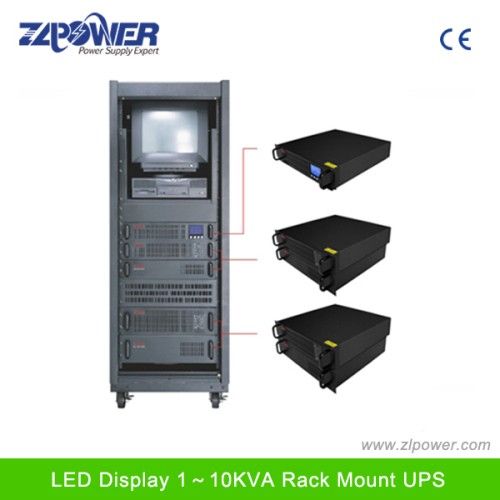

Rack Mount Online UPS-High Frequency Online UPS 1KVA-6KVA (UTR)

bargain

Model NO.	RM1K~RM10KL
Type	On-line
Trademark	ZLPOWER
Specification	CE
HS Code	8504402000
Phase	Single Phase
Protection	Lightning
Transport Package	by Wooden Boxes,by Carton
Origin	China

Rack Mount Online UPS-High Frequency Online UPS 1KVA-6KVA
Product Features
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
KEY FEATURES
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead-acid, maintenance free battery
True online double conversion technology with advanced microprocessor control
APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc
Product performance
TECHNICAL SPECIFICATION
Model UT1KR UT1KRL UT2KR UT2KRL UT3KR UT3KRL UT6KRL
Capacity 1000VA/700W 2000VA/1400W 3000VA/2100W 6KVA/4200W
Input Voltage (115~300)VAC (176~276)VAC
Frequency 46~54Hz/56~64Hz (Adjustable via LCD panel)
Output Voltage 220/230/240(1± 1%)VAC (Adjustable via LCD panel)D panel)D panel)
Frequency 50/60Hz (Adjustable via LCD panel)
50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1± 0.2%)n; 0.2%)n; 0.2%)
60Hz AC Mode: Follow AC Mode (AC Range 56~64Hz); Battery Mode: 60Hz (1± 0.2%)n; 0.2%)n; 0.2%)
Output Wave Form Sine Wave
Back-up Time Full Load ≥ 5' Depends on the capacity of the external batteries bank ≥ 9' Depends on the capacity of the external batteries bank ≥ 5' Depends on the capacity of the external batteries bank Depends on the capacity of the external batteries bankeries bankeries bank
Half Load ≥ 14' ≥ 21' ≥ 15'' ≥ 15'15'' ≥ 15'
Battery Nominal Voltage 36VDC 96VDC 240VDC
Transfer Time 0ms
Overload Capacity 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms 105%~130% 10min, over 150%1min
Communications RS-232+Intelligent Slot
Operating Environment Temperature 0C~40C
Humidity 15%~90%
Dimensions(W*D*H)mm 482.6*450*88 482.6*600*130
Net Weight(Kg) 16 9 10.5 11.5 11 12.5 19.5

Rack Mount UPS Model		RM1KC	RM2KC	RM3KC	RM1KC-L	RM2KC-L	RM3KC-L	RM6KC-L	RM10KC-L
Rated Power	VA/W	1kVA/0.7kW	2kVA/1.4kW	3kVA/2.1kW	1kVA/0.7kW	2kVA/1.4kW	3kVA/2.1kW	6kVA/4.8kW	10Kva/8Kw
Input	Phase	Single Phase with Ground
	Nominal Voltage	110/115/120Vac or 220/230/240Vac						220/230/240Vac
	Voltage Range	60-138VAC or 115 ~ 300VAC						176 ~ 276VAC
	Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz						46 ~ 54Hz
	Power Factor	0.97						0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Phase	Single Phase
	Voltage	110/115/120Vac or 220/230/240VAC ± 2%usmn; 2%usmn; 2%						110/115/120Vac or 220/230/240VAC± 1%usmn; 1%usmn; 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode)ne mode)ne mode)						46~54Hz (Line mode)
		50Hz ± 0.2Hz ( Battery mode)ry mode)ry mode)						50Hz ± 0.05Hz ( Battery mode)ry mode)ry mode)
	Waveform	Pure Sine Wave
	Overload Capability	108%~150% for 30 sec., 150% for 300 ms						105%~130% for 10 min.,130% for 1 min.
	Current Crest Ratio	3:1
	Connections	IEC320 -10A * 4	IEC320 -10A * 4	IEC320-10A and Terminal Block	IEC320 -10A * 4	IEC320 -10A * 4	IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default 'NO', user adjustable to 'YES'le to "YES"t;YES"						Yes
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC						176 ~ 261VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa						Zero
LED indicators		Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot;
		OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40centi-degree
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	16.3	10.3	11.2	9.1	11.5	12.3	18.3	20.3
	Dimensions (L x W x H) mm	482 x 420 x 88 (2U)						600 x 482.6 x 130 (3U)
Battery Pack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	36VDC	96VDC		36VDC	96VDC		192VDC
	Battery Numbers & Capacityacityacity	3Pcs *12V7.2Ah	8Pcs *12V7.2Ah	8Pcs *12V7.2Ah	Depending on the capacity of external battery packs
	Backup Time (Full load)	5 min	9 min (with 1 BP)	5 min (with 1 BP)

	Recharge Time	5hrs to 90%	5hrs to 90%	5hrs to 90%
	Charging Current (Max.)	1.0A	1.0A	1.0A	8A±1Alusmn;1Alusmn;1A			4.2A
	Charging Voltage	41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V	110Vdc±0.4Vsmn;0.4Vsmn;0.4V		41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V	110Vdc±0.4Vsmn;0.4Vsmn;0.4V		216Vdc±1%Vusmn;1%Vusmn;1%V
	Net Weight (Kg)	---	25.3	25.3	---	---	---	---
	Dimensions (L x W x H) mm	---	482 x 420 x88 (2U)	482 x 420 x88 (2U)	---	---	---	---
