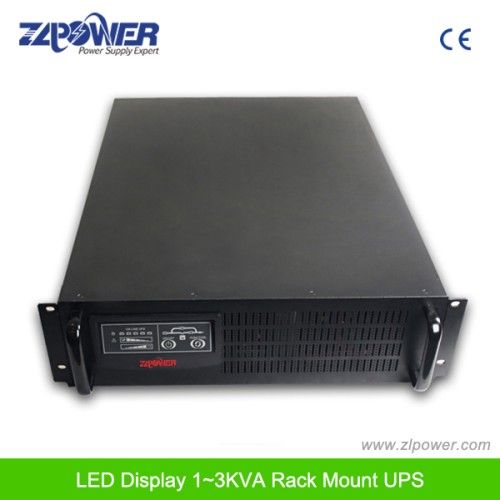

Rack Mounted UPS, High Frequency Online UPS 1KVA-10KVA
bargain
add to cart| Model NO. | RM1K~RM10KL |
| Type | On-line |
| Shape | Rack |
| Technology | Mcu Control, IGBT |
| Trademark | ZLPOWER |
| Origin | Shenzhen, China |
| Phase | Single Phase |
| Protection | Short Circuit |
| Height | 2u, 3u |
| Communication Port | RS232, USB, Snmp, RJ45, Rj11 |
| Specification | 2u, 3u |
| HS Code | 8504402000 |
Rack mounted UPS, High frequency online UPS 1KVA-10KVA
Product Name: Rack UPS TR series
Model: RM1K~RM10KL
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
KEY FEATURES
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead-acid, maintenance free battery
True online double conversion technology with advanced microprocessor control
APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc
Product Name: Rack UPS TR series
Model: RM1K~RM10KL
IP/OP: 110/115/120VAC 50/60Hz
IP/OP: 220/230/240VAC 50/60Hz
KEY FEATURES
Wide input voltage range
Zero transfer time
Protection against all type of power problems
Self test while start of the UPS
Site wiring fault warning
On battery power-on function
Smart RS232 communication interface
Intelligent slot available
Sealed lead-acid, maintenance free battery
True online double conversion technology with advanced microprocessor control
APPLICATION
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc
| Model | RM1K | RM1KL | RM2K | RM2KL | RM3K | RM3KL | RM6KL | |||||
| Capacity | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 6KVA/4800W | ||||||||
| Input | Voltage | (115~300)VAC | (176~276)VAC | |||||||||
| Frequency | 46~54Hz/56~64Hz | |||||||||||
| Output | Voltage | 220/230/240(1±1%)VACn;1%)VACn;1%)VAC | ||||||||||
| Frequency | 50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz);Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode(AC Range 56~64Hz);Battery Mode: 60Hz(1±0.2%)(1±0.2%)n;0.2%)(1±0.2%) | |||||||||||
| Output Wave Form | Sine Wave | |||||||||||
| Back-up Time | Full Load | ≥5′e;5′prime;e;5′ | Depends on the capacity of the external batteries bank | ≥9′e;9′prime;e;9′ | Depends on the capacity of the external batteries bank | ≥5′e;5′prime;e;5′ | Depends on the capacity of the external batteries bank | Depends on the capacity of the external batteries bank | ||||
| Half Load | ≥14′;14′prime;;14′ | ≥21′;21′prime;;21′ | ≥15′;15′prime;;15′ | |||||||||
| Battery Nominal Voltage | 36VDC | 96VDC | 192VDC | |||||||||
| Transfer Time | 0ms | |||||||||||
| Overload Capacity | 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms | 105%~130% 10min, over 150%1min | ||||||||||
| Communications | RS-232+Intelligent Slot | |||||||||||
| Operating Environment | Temperature | 0C~40C | ||||||||||
| Humidity | 15%~90% | |||||||||||
| Dimensions(W*D*H)mm | 482.6*450*88 | 482.6*600*130 | ||||||||||
| Net Weight(Kg) | 16 | 9 | 10.5 | 11.5 | 11 | 12.5 | 19.5 | |||||
