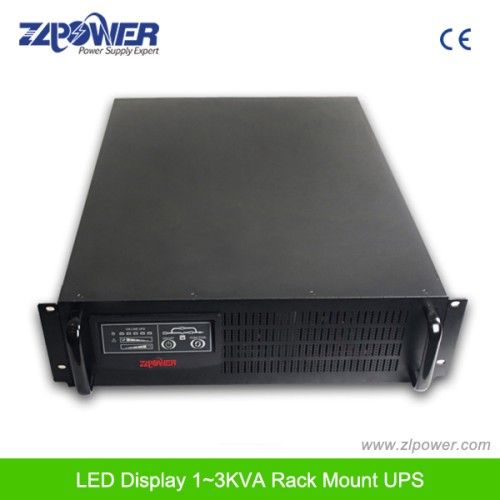

Rack Mount UPS+LCD Display UPS1KVA, 2KVA, 3KVA, 6KVA

Rack Mount UPS+LCD Display UPS1KVA, 2KVA, 3KVA, 6KVA

bargain

add to cart
Model NO. RM1K~RM10KL
Type On-line
Weight 16kg
Color Black
Trademark zlpower
Specification CE
HS Code 8507402000
Phase Single Phase
Protection Overcurrent
Demension 482.6*450*88mm
Battery Sla Battery 12v
Transport Package Export Standard Package/Based on Your Requirement
Origin Shenzhen, China
Model: Rack Mount UPS+LCD Display UPS1KVA, 2KVA, 3KVA, 6KVA
UPS Key feature:
High frequency UPS with GIBT technology
Module design UPS
Overload and short circuit protection maximize UPS' life
LCD status display can set UPS voltage
Intelligent slot for UPS SNMP adaptor(optional)
Cold start when UPS turning on
Bypass protection
UPS APPLICATION:
Servers, Data-Center, Critical network devices, Sensitive electronic equipment, Telecom, etc.
Rack Mount UPS Model RM1KE RM2KE RM3KE RM1KE-L RM2KE-L RM3KE-L RM6KE-L RM10KE-L
Rated Power VA/W 1kVA/0.7kW 2kVA/1.4kW 3kVA/2.1kW 1kVA/0.7kW 2kVA/1.4kW 3kVA/2.1kW 6kVA/4.8kW 10Kva/8Kw
Input Phase Single Phase with Ground
Nominal Voltage 110/115/120Vac or 220/230/240Vac 220/230/240Vac
Voltage Range 60-138VAC or 115 ~ 300VAC 176 ~ 276VAC
Frequency Range 46 ~ 54Hz(default), user adjustable within 40~60Hz 46 ~ 54Hz
Power Factor 0.97 0.98
Connection IEC320-10A inlet IEC320-16A inlet IEC320-10A inlet IEC320-16A inlet Terminal Block
Output Phase Single Phase
Voltage 110/115/120Vac or 220/230/240VAC ± 2%usmn; 2%usmn; 2% 110/115/120Vac or 220/230/240VAC± 1%usmn; 1%usmn; 1%
Frequency 46~54Hz or 50Hz ± 0.2Hz (Line mode)ne mode)ne mode) 46~54Hz (Line mode)
50Hz ± 0.2Hz ( Battery mode)ry mode)ry mode) 50Hz ± 0.05Hz ( Battery mode)ry mode)ry mode)
Waveform Pure Sine Wave
Overload Capability 108%~150% for 30 sec., 150% for 300 ms 105%~130% for 10 min.,130% for 1 min.
Current Crest Ratio 3:1
Connections IEC320 -10A * 4 IEC320 -10A * 4 IEC320-10A and Terminal Block IEC320 -10A * 4 IEC320 -10A * 4 IEC320-10A and Terminal Block IEC320-10A * 4 and Terminal Block
Bypass Automatic Transfer on overload and UPS failure
Before UPS Power-on Default 'NO', user adjustable to 'YES'le to "YES"t;YES" Yes
Voltage Range 80~264VAC (Default), user adjustable within 80~286VAC 176 ~ 261VAC
Transfer Time 0 ms; less than 4 ms from inverter to bypass and vice versa Zero
LED indicators Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm Bypass, On battery mode, Battery low, Overload, Fault
Communications RS-232 Serial Interface
Intelligent Slot;
OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection RJ45 I/O port available for network or Fax/Modem
Environmental Operating Temperature 0 ~ 40Centi-degree
Operating Humidity 20 ~ 90% non-condensing
Main Unit Net Weight (Kg) 16.3 10.3 11.2 9.1 11.5 12.3 18.3 20.3
Dimensions (L x W x H) mm 482 x 420 x 88 (2U) 600 x 482.6 x 130 (3U)
Battery Pack Type Internal Batteries External Battery Pack
Nominal DC Voltage 36VDC 96VDC 36VDC 96VDC 192VDC
Battery Numbers & Capacityacityacity 3Pcs *12V7.2Ah 8Pcs *12V7.2Ah 8Pcs *12V7.2Ah Depending on the capacity of external battery packs
Backup Time (Full load) 5 min 9 min (with 1 BP) 5 min (with 1 BP)
Recharge Time 5hrs to 90% 5hrs to 90% 5hrs to 90%
Charging Current (Max.) 1.0A 1.0A 1.0A 8A±1Alusmn;1Alusmn;1A 4.2A
Charging Voltage 41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V 110Vdc±0.4Vsmn;0.4Vsmn;0.4V 41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V 110Vdc±0.4Vsmn;0.4Vsmn;0.4V 216Vdc±1%Vusmn;1%Vusmn;1%V
Net Weight (Kg) --- 25.3 25.3 --- --- --- ---
Dimensions (L x W x H) mm --- 482 x 420 x88 (2U) 482 x 420 x88 (2U) --- --- --- ---
