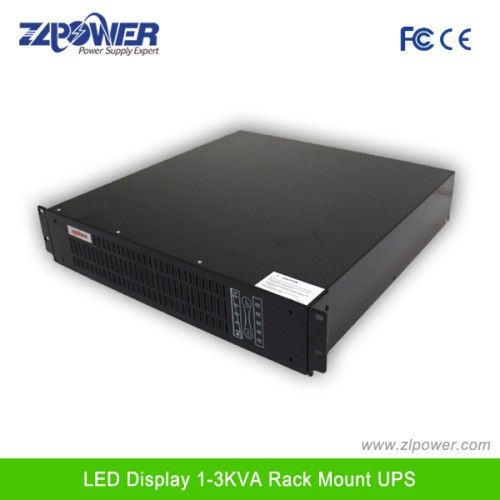

1-10kVA High Quality High Frequency Rack Mount Online UPS Power Supply Pure Sine Wave UPS

120 USD

Model NO.	RM1K~RM10KL
Type	On-line
Application	Uninterrupted Power Supply
Output Capacity	Medium Type
Brand	Zlpower
UPS Display	LED and LCD
Voltage Range	60-138VAC or 115-300VAC
Backup Time for Internal Battery	5-25 Min
Power Factor	0.7/0.8
Battery Type	Sealed Free Maintenance Lead Acid Battery
Transport Package	Export Pckage
Origin	Shenzhen, China
Phase	Single Phase
Protection	Lightning,Surge,Short Circuit
Classification	Lightning,Surge,Short Circuit
Equipment Mode	Centralized Model
Capacity	1-10kVA(0.7-2.1kw)
Communication	USB and Snmp Card for Remote The UPS
Frequency	50/60Hz
Charging Current	1/5/8A
Crest Ratio	3:1
Trademark	ZLPOWER
Specification	Pure Sine Wave Ture Online UPS
HS Code	8504402000

1-10KVA High Quality High Frequency Rack Mount Online UPS Power Supply Pure Sine Wave UPS
1~10kVA high frequency UPS
110V:
UPS IP/Op: 110/115/120VAC 50/60Hz
220V:
UPS IP/Op: 220/230/240VAC 50/60Hz
Microprocessor Control UPS with High Reliability
Comprehensive Protection Design for whole UPS
Cold Start Function
Auto Self-Testing System while Turning On UPS
Wide UPS Input Voltage Range
19' Rack Mount Availableilable
Can set nominal voltage, nominal frequency and bypass voltage range via LCD panel
Key Features:
1. True On-Line Double Conversion Technology With Advanced Microprocessor Control
2. Wide UPS Input Voltage Range
3. Zero Transfer Time
4. Protection Against All Type Of Power Problems
5. Self Test While Start Of The UPS
6. Site Wiring Fault Warning
7. On-Battery Power-On Function
8. Smart RS232 Communication Interface
9. Intelligent Slot Available
10. Sealed Lead Acid, Maintenance Free UPS Battery

Rack Mount UPS Model		RM1KE	RM2KE	RM3KE	RM1KE-L	RM2KE-L	RM3KE-L	RM6KE-L	RM10KE-L
Rated Power	VA/W	1kVA/0.7kW	2kVA/1.4kW	3kVA/2.1kW	1kVA/0.7kW	2kVA/1.4kW	3kVA/2.1kW	6kVA/4.8kW	10Kva/8Kw
Input	Phase	Single Phase with Ground
	Nominal Voltage	110/115/120Vac or 220/230/240Vac						220/230/240Vac
	Voltage Range	60-138VAC or 115 ~ 300VAC						176 ~ 276VAC
	Frequency Range	46 ~ 54Hz(default), user adjustable within 40~60Hz						46 ~ 54Hz
	Power Factor	0.97						0.98
	Connection	IEC320-10A inlet		IEC320-16A inlet	IEC320-10A inlet		IEC320-16A inlet	Terminal Block
Output	Phase	Single Phase
	Voltage	110/115/120Vac or 220/230/240VAC ± 2%usmn; 2%usmn; 2%						110/115/120Vac or 220/230/240VAC± 1%usmn; 1%usmn; 1%
	Frequency	46~54Hz or 50Hz ± 0.2Hz (Line mode)ne mode)ne mode)						46~54Hz (Line mode)
		50Hz ± 0.2Hz ( Battery mode)ry mode)ry mode)						50Hz ± 0.05Hz ( Battery mode)ry mode)ry mode)
	Waveform	Pure Sine Wave
	Overload Capability	108%~150% for 30 sec., 150% for 300 ms						105%~130% for 10 min.,130% for 1 min.
	Current Crest Ratio	3:1
	Connections	IEC320 -10A * 4	IEC320 -10A * 4	IEC320-10A and Terminal Block	IEC320 -10A * 4	IEC320 -10A * 4	IEC320-10A and Terminal Block	IEC320-10A * 4 and Terminal Block
Bypass	Automatic Transfer	on overload and UPS failure
	Before UPS Power-on	Default 'NO', user adjustable to 'YES'le to "YES"t;YES"						Yes
	Voltage Range	80~264VAC (Default), user adjustable within 80~286VAC						176 ~ 261VAC
Transfer Time		0 ms; less than 4 ms from inverter to bypass and vice versa						Zero
LED indicators		Load level / Battery level, Battery , Utility Power, Inverter, Bypass, Overload, Fault
Audible Alarm		Bypass, On battery mode, Battery low, Overload, Fault
Communications		RS-232 Serial Interface
		Intelligent Slot;
		OPTIONS: WEBPOWER SNMP/WEB card, AS400 card or WinPower CMC)
Network Surge Protection		RJ45 I/O port available for network or Fax/Modem
Environmental	Operating Temperature	0 ~ 40Centi-degree
	Operating Humidity	20 ~ 90% non-condensing
Main Unit	Net Weight (Kg)	16.3	10.3	11.2	9.1	11.5	12.3	18.3	20.3
	Dimensions (L x W x H) mm	482 x 420 x 88 (2U)						600 x 482.6 x 130 (3U)
Battery Pack	Type	Internal Batteries	External Battery Pack
	Nominal DC Voltage	36VDC	96VDC		36VDC	96VDC		192VDC
	Battery Numbers & Capacityacityacity	3Pcs *12V7.2Ah	8Pcs *12V7.2Ah	8Pcs *12V7.2Ah	Depending on the capacity of external battery packs
	Backup Time (Full load)	5 min	9 min (with 1 BP)	5 min (with 1 BP)

	Recharge Time	5hrs to 90%	5hrs to 90%	5hrs to 90%
	Charging Current (Max.)	1.0A	1.0A	1.0A	8A±1Alusmn;1Alusmn;1A			4.2A
	Charging Voltage	41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V	110Vdc±0.4Vsmn;0.4Vsmn;0.4V		41.1Vdc±0.6Vsmn;0.6Vsmn;0.6V	110Vdc±0.4Vsmn;0.4Vsmn;0.4V		216Vdc±1%Vusmn;1%Vusmn;1%V
	Net Weight (Kg)	---	25.3	25.3	---	---	---	---
	Dimensions (L x W x H) mm	---	482 x 420 x88 (2U)	482 x 420 x88 (2U)	---	---	---	---
