Hot High Quality UPS Rack Mount Online UPS 1kVA to 10kVA High Frequency Online UPS

Hot High Quality UPS Rack Mount Online UPS 1kVA to 10kVA High Frequency Online UPS

bargain

add to cart
Model NO. RM series 1-10kva
Type On-line
Shape Rack
Technology MCU Control, IGBT
Voltage Range 1-10kVA
Output Voltage 110/115/120VAC or 220/230/240VAC
Output Wave Form Pure Sine Wave Output
Specification 2u, 3u
HS Code 8504402000
Phase Single Phase
Protection Short Circuit
Transfer Time 0 Ms; Less Than 4 Ms From Inverter to Bypass and V
Communication Port RS232, USB, Snmp, RJ45, Rj11
Power Range 700-8000W
Frequency 46-54Hz
Trademark ZLPOWER
Origin Shenzhen, China

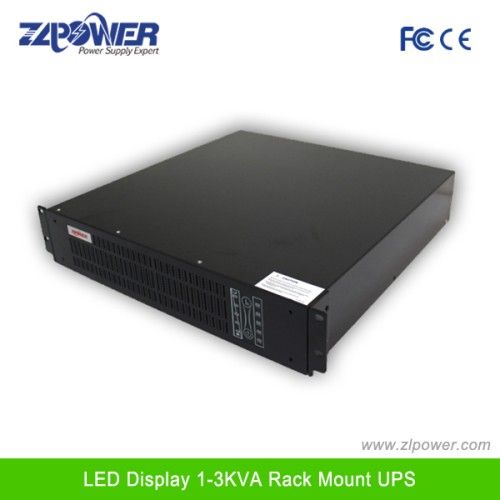

High Quality UPS Rack Mount Online UPS

High Frequency Online UPS

1KVA 2KVA 3KVA 6KVA 10KVA

700W 1400W 2100W 4800W 8000W

Introduction

1. Single phase with ground

2. Pure sine wave output form

3. LCD/LED Indicators

4. Output current crest ratio is 3 times

5. Power factor is 0.97

6. 0 transfer time

7. Protection against over voltage,over load,over current,over charge etc.

8. Smart RS232 communication with monitoring software.

9. Intelligent slot available for AS-400 Dry contact and SNMP card Remote control.

Application

Specially designed for servers,data-center critical network devices,sensitive electronic equipment,telecom,bank,hospital,bureau,traffic,public security.ATM etc.

Model RM1K RM1KL RM2K RM2KL RM3K RM3KL RM6KL
Capacity 1000VA/800W 2000VA/1600W 3000VA/2400W 6KVA/4800W
Input Voltage (115~300)VAC (176~276)VAC
Frequency 46~54Hz/56~64Hz
Output Voltage 220/230/240(1±1%)VACn;1%)VACn;1%)VAC
Frequency 50/60Hz(Adjustable) 50Hz AC Mode: Follow AC Mode(AC Range 46~54Hz);Battery Mode: 50Hz(1±0.2%) 60Hz AC Mode: Follow AC Mode(AC Range 56~64Hz);Battery Mode: 60Hz(1±0.2%)(1±0.2%)n;0.2%)(1±0.2%)
Output Wave Form Sine Wave
Back-up Time Full Load ≥5′e;5′prime;e;5′ Depends on the capacity of the external batteries bank ≥9′e;9′prime;e;9′ Depends on the capacity of the external batteries bank ≥5′e;5′prime;e;5′ Depends on the capacity of the external batteries bank Depends on the capacity of the external batteries bank
Half Load ≥14′;14′prime;;14′ ≥21′;21′prime;;21′ ≥15′;15′prime;;15′
Battery Nominal Voltage 36VDC 96VDC 192VDC
Transfer Time 0ms
Overload Capacity 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms 105%~130% 10min, over 150%1min
Communications RS-232+Intelligent Slot
Operating Environment Temperature 0C~40C
Humidity 15%~90%
Dimensions(W*D*H)mm 482.6*450*88 482.6*600*130
Net Weight(Kg) 16 9 10.5 11.5 11 12.5 19.5
