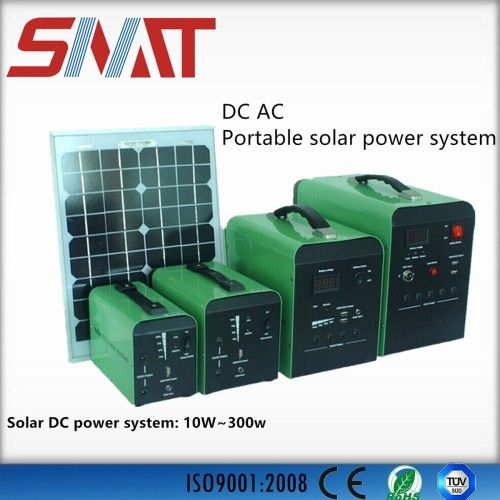

Portable Solar Power System with Battery Built-in for Home Use
| Model NO. | SBP-055 |
| OEM/ODM | Serve |
| Company | Maunfacturer |
| Control Mode | PWM |
| Transport Package | Standard Export Package |
| Origin | Foshan Guangdong |
| Material | Monocrystalline Silicon |
| Special Design | Accept |
| Sample Order | Accept |
| Trademark | SNAT |
| Specification | CE; ISO9001 |
| HS Code | 8504403090 |
System introduction:
This product uses portable design, built-in battery and solar power controller, which is dedicated to supply the power to small power DC load ;Solar controller process the sample of the battery terminal voltage, discharge current, environment temperature, involving the battery capacity parameters through the computer chips. Through the special control model calculation, implementation conforms to the characteristics of battery discharge rate, temperature compensation correction of high efficiency, high control accuracy, and adopt the efficient PWM battery charging mode, which can ensure the battery work in the best state, in order to greatly extend the service life of battery.System comes with 12 VDC or 5 VDC output terminal, with short circuit, overload, unique reverse, full of, discharge automatically shut off, and restore full function protection measures;Detailed charging indicator, battery status, load, and various fault indicator.
Main features:
1, the single chip microcomputer intelligent control, optimize the SOC algorithm.
2, the built-in temperature sensor, which can effectively increase the built-in battery charging efficiency.
3, with the charge and discharge, electronic short circuit protection, overload protection, automatic control for the protection of the unique reverse.
4, main circuit adopted tandem PWM charging, which made the charging circuit of voltage loss than using diode charging circuit to reduce the nearly half, charging efficiency is higher 3%-6% than the non-PWM , increases the utilization of time.
5, put the ascension of charging, normal straight charger, floating automatic control method make the system have a longer service life.
6, intuitive digital pipe + LED display system.
Advantage:
1, Solar Power System:
2,Solar energy: Invert cost-free sunlight into power without consuming oil, gas, or coal. Improve life in area out of electricity network.
3,Quite,
4,Environmental friendly, No emission
5,Easy use: Highly operable input and output system, requiring no adjustment for installation.
Technical index
Warranty:
Quality warranty for 1 year, including all relative products purchased from our company; parts will be shipped free during warranty period.
Delivery time:
Stick to contract
Special sockets for different requirements
Any requirements, welcome to contact with Sabrina Liu:Click Trade messenger; Tel: +86 757 81816131; Mobile: +86 18039293535.,
You will get our reply in 12 hours
This product uses portable design, built-in battery and solar power controller, which is dedicated to supply the power to small power DC load ;Solar controller process the sample of the battery terminal voltage, discharge current, environment temperature, involving the battery capacity parameters through the computer chips. Through the special control model calculation, implementation conforms to the characteristics of battery discharge rate, temperature compensation correction of high efficiency, high control accuracy, and adopt the efficient PWM battery charging mode, which can ensure the battery work in the best state, in order to greatly extend the service life of battery.System comes with 12 VDC or 5 VDC output terminal, with short circuit, overload, unique reverse, full of, discharge automatically shut off, and restore full function protection measures;Detailed charging indicator, battery status, load, and various fault indicator.
Main features:
1, the single chip microcomputer intelligent control, optimize the SOC algorithm.
2, the built-in temperature sensor, which can effectively increase the built-in battery charging efficiency.
3, with the charge and discharge, electronic short circuit protection, overload protection, automatic control for the protection of the unique reverse.
4, main circuit adopted tandem PWM charging, which made the charging circuit of voltage loss than using diode charging circuit to reduce the nearly half, charging efficiency is higher 3%-6% than the non-PWM , increases the utilization of time.
5, put the ascension of charging, normal straight charger, floating automatic control method make the system have a longer service life.
6, intuitive digital pipe + LED display system.
Advantage:
1, Solar Power System:
2,Solar energy: Invert cost-free sunlight into power without consuming oil, gas, or coal. Improve life in area out of electricity network.
3,Quite,
4,Environmental friendly, No emission
5,Easy use: Highly operable input and output system, requiring no adjustment for installation.
Technical index
| Model | SNP-D55 | |
| Solar panel | Type | Mono or poly A grade |
| Power | Maximum 100w | |
| Solar charging controller | Control way | High efficiency PWM |
| Charging current | 10A/12V | |
| Protection | Protection of the over charge,over discharge,short circuit,over load | |
| Voltage of over charge protection | 14.3V | |
| Voltage of promoting charging | 14.0V | |
| Float charging voltage | 13.8V | |
| Over discharge protection | 10.5V | |
| LED display | Indication of charging,load and battery capacity | |
| Battery | Battery type | Deep cycle lead-acid battery with free maintenance |
| Battery capacity | 12V/55AH | |
| DC output | Max output power | 60W(12V,5A) |
| DC12V | 2pcs outlet | |
| DC5VUSB | 1pc USB output(MAX.2A) | |
| Size(mm) | 275*175*255 | |
Warranty:
Quality warranty for 1 year, including all relative products purchased from our company; parts will be shipped free during warranty period.
Delivery time:
Stick to contract
Special sockets for different requirements
Any requirements, welcome to contact with Sabrina Liu:Click Trade messenger; Tel: +86 757 81816131; Mobile: +86 18039293535.,
You will get our reply in 12 hours
