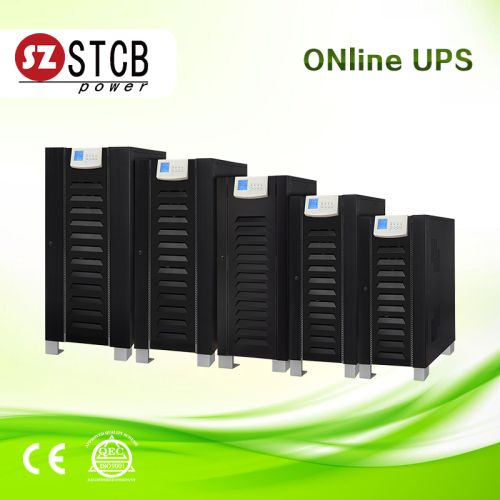

10kVA~200kVA UPS with Isolated Transformer to Pretect The Poor Electrical Environment
| Model NO. | GL33 series |
| Type | On-line |
| Application | Industry |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Input Voltage | 380V400/415VAC |
| Transfer Time | 0 Ms |
| Warrenty | 12 Months |
| Transport Package | Cartons |
| HS Code | 8504402000 |
| Phase | Three Phase |
| Protection | Over Voltage / Short Circuit |
| Standby Time | Long-acting Machine |
| Output Capacity | Large Type |
| Features | Isolated Transformer |
| Power Efficiency | 80% |
| Battery Type | Sealed Lead Acid Maintenance-Free Battery |
| Trademark | STCB |
| Origin | Guangzhou Shenzhen |
80kva Online UPS 380v Input & OutputOutpututput
Main Features:
1. Online double-conversion
2. DSP technology guarantees high reliability
3. True galvanic isolation transformer design
4. Control designed to withstand all kinds of loads
5. Intelligent battery management to prolong battery lifecycle
6. Redundant fan design and independent ventilation enhance durable operation under harsh environment
7. Adjustable battery numbers
8. Accept dual-mains input
9. Parallel operation with up to 4 units (option)
10.Variety of communication options available
Product discription:
The On-Line-Series is an uninterruptible power supply incorporating
double-converter technology. It provides perfect protection specifically for
strict load.
The double-converter principle eliminates all mains power
disturbances. A rectifier converts the alternating current from the socket
outlet to direct current. This direct current charges the batteries and powers
the inverter.
In the event of power failure, the maintenance-free batteries
power the inverter. Thus the inverter generates a sine wave AC power,
which permanently supplies the loads.
Designed with the proven on-line, double conversion architecture, this
series of UPS offers the greatest degree of availability in power protection
and provides continuous high-quality AC power to connect strict load,
especially for the basic equipments in some areas as: finance,
communication, government, traffic, manufacture, education and so on.
Additionally The UPS provides abundant interfaces such as RS232, SNMP, AS400, and RS485 for supervision and configure.
Specification:
* Product specifications are subject to change without further notice
Main Features:
1. Online double-conversion
2. DSP technology guarantees high reliability
3. True galvanic isolation transformer design
4. Control designed to withstand all kinds of loads
5. Intelligent battery management to prolong battery lifecycle
6. Redundant fan design and independent ventilation enhance durable operation under harsh environment
7. Adjustable battery numbers
8. Accept dual-mains input
9. Parallel operation with up to 4 units (option)
10.Variety of communication options available
Product discription:
The On-Line-Series is an uninterruptible power supply incorporating
double-converter technology. It provides perfect protection specifically for
strict load.
The double-converter principle eliminates all mains power
disturbances. A rectifier converts the alternating current from the socket
outlet to direct current. This direct current charges the batteries and powers
the inverter.
In the event of power failure, the maintenance-free batteries
power the inverter. Thus the inverter generates a sine wave AC power,
which permanently supplies the loads.
Designed with the proven on-line, double conversion architecture, this
series of UPS offers the greatest degree of availability in power protection
and provides continuous high-quality AC power to connect strict load,
especially for the basic equipments in some areas as: finance,
communication, government, traffic, manufacture, education and so on.
Additionally The UPS provides abundant interfaces such as RS232, SNMP, AS400, and RS485 for supervision and configure.
Specification:
| MODEL | GL33 10K | GL33 20K | GL33 30K | GL33 40K | GL33 60K | GL33 80K | |
| CAPACITY | 10KVA 8KW | 20KVA 16KW | 30KVA 24KW | 40KVA /32KW | 60KVA 48KW | 80KVA 64KW | |
| INPUT | |||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | ||||||
| Voltage Range | 305VAC ~ 460VAC | ||||||
| Frequency | 46-54Hz or 56-64Hz | ||||||
| INVERTER | |||||||
| Nominal Voltage | 3 x 380VAC/400VAC (3Ph + N) | ||||||
| Precision | Stationary: ±1%lusmn;1%lusmn;1% Transitory: ±5% (load variations 100-0-100%)0-0-100%)-0-100%) | ||||||
| Frequency | 50/60 Hz synchronised ±1 %usmn;1 %usmn;1 % With mains absent ±0.1 Hzmn;0.1 Hzn;0.1 Hz | ||||||
| Max. Synchronisation Speed | ±1 Hz/sn;1 Hz/sn;1 Hz/s | ||||||
| Waveform | Pure Sine wave | ||||||
| Total Harmonic Distortion (THDv) | <2% (Linear Load)oad) <5% (Non-linear Load)oad) | ||||||
| Phase Displacement | 120º ±1% (balanced load)alanced load)alanced load) 120º ±2% (imbalances 50% of the load) of the load) of the load) | ||||||
| Dynamic Recovery Time | 1 cycle at 98 % of the static value | ||||||
| Admissible Overload | 110% for 10min; 150% for 60sec ; ﹥160% for 200ms00ms | ||||||
| Admissible Crest Factor | 3:1 | ||||||
| Admissible Power Factor | 0.6~1 (inductive or capacitive) | ||||||
| Imbalance Output Voltage | <1% @ 100% Unbalanced LoadLoad | ||||||
| Current Limit | High overload, short-circuit: RMS Voltage Limit High Crest-Factor current: Peak Voltage Limit | ||||||
| STATIC BYPASS | |||||||
| Type | Solid state | ||||||
| Voltage | 3 x 380VAC/400VAC (3Ph + N) | ||||||
| Frequency | 50/60 Hz | ||||||
| Activation Criterion | Microprocessor control | ||||||
| Transfer Time | Zero | ||||||
| Admissible Overload | 150% for 1 hour; 180% for 30sec; ﹥200% for 200ms00ms | ||||||
| Transfer to Bypass | Immediate, for overloads above 160% | ||||||
| Retransfer | Automatic after alarm clear | ||||||
| MAINTENANCE BYPASS | |||||||
| Type | Without interruption | ||||||
| Voltage | 3 x 400V (3Ph + N) | ||||||
| Frequency | 50/60 Hz | ||||||
| Overall Efficiency | Line Mode | 90% | 91% | 92% | 93% | ||
| Battery Mode | 90% | 91% | 93% | 93% | |||
| BATTERY & CHARGERARGERARGER | |||||||
| Battery Type and Numbers | 16 pcs | 32 pcs (29~32 pcs adjustable) | |||||
| Nominal Battery Voltage | 192 VDC | 384 VDC (Based on 32pcs batteries) | |||||
| Charging Method | CC/CV | ||||||
| Precision | ±1%lusmn;1%lusmn;1% | ||||||
| Charging Current | Max.: 40 A | ||||||
| Charging Voltage | 216 VDC | 432 VDC (Based on 32pcs batteries) | |||||
| PHYSICAL | |||||||
| Dimensions(mm) | 656*405*817 | 656*405*941 | 840*432*1140 | 975*554*1286 | |||
| Net Weight (Kg) | 180 | 205 | 295 | 330 | 451 | 519 | |
