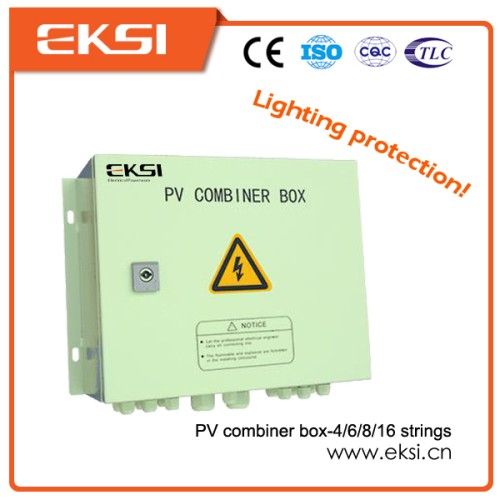

PV Combiner Box - Lighting Protection 6 Strings
| Model NO. | GSB-8B |
| Certification | ISO, CE |
| Specification | Normal, CE, TLC, ISO9001, CQC |
| Net Weight | 10kg |
| PV Array Input Path | 6 Strings |
| Communication Protocol | RS485 |
| Protection Degree | IP65 |
| Ambient Temperature | -25 ~+65 |
| Origin | Yangzhou City, Jiangsu Province, China |
| Condition | New |
| Application | Home, Industrial, Commercial |
| Color | Grey |
| Size | 155*400*300mm |
| Input Voltage | Less Than 500V |
| DC Output Circuit Breaker | with |
| Altitude | 5000meters |
| Trademark | EKSI |
| HS Code | 8543709990 |
1 Introduction
For PV power system, with need of convenient maintenance and reliability, we generally install DC combiner equipment between PV array and PV controller or inverter to reduce the connecting wires between them.
Features
* Meet the need of indoor and outdoor installation
* Maximum access 16 paths of PV tandem, rated current of each path is 15A
* Wide range of DC input voltage, maximum input voltage up to 500/1000VDC
* Dedicated fuse for PV
* Dedicated high-voltage lightning device for PV, its positive pole and negative pole have lightning protection function.
* Multiple machines can work in parallel
* Easy and fast maintenance
* Remote monitor (optional)
2 Parameter
3 Company Profile:
JIANGSU GSO NEW ENERGY TECH. CO.,LTD was established in Jan. 2010, located in Yangzhou Jiangsu China, is a high-tech enterprises mainly undertaking R&D, production and marketing for photovoltaic products including inverter, solar controller and complete pv power system.ystem.stem.
The company aims at the development in the clean energy field. The products we manufactured and developed include: PV grid inverter, off grid inverter, wind power inverter, transformer, solar street light controller, solar power controller, battery and combiner box. These products are widely used in new energy, solar power station, construction, industry, civil use, electricity, communication, health care and automation & control systems in military, etc., etc. etc.
We have certificates of ISO:9001:2008, ISO14001:2004, TUV, CE, ROHS, CQC and AS4777.
4 For more details pls send us an inquiry↓y↓arr;y↓
Contact Info.:
Attn: Ms. Mary Qian
Tel +86 551 65615695
Mob +86 139 56974669
Web.: www.gsopower.com
For PV power system, with need of convenient maintenance and reliability, we generally install DC combiner equipment between PV array and PV controller or inverter to reduce the connecting wires between them.
Features
* Meet the need of indoor and outdoor installation
* Maximum access 16 paths of PV tandem, rated current of each path is 15A
* Wide range of DC input voltage, maximum input voltage up to 500/1000VDC
* Dedicated fuse for PV
* Dedicated high-voltage lightning device for PV, its positive pole and negative pole have lightning protection function.
* Multiple machines can work in parallel
* Easy and fast maintenance
* Remote monitor (optional)
2 Parameter
| Maximum open circuit voltage(VDC) | 500/1000 |
| PV array input path (N) | 6/16(can be customized) |
| Constant current of each PV array (A) | 15 |
| Anti counter protection | optional |
| DC output circuit breaker | include |
| Dedicated lighting protection for PV | include |
| Detection module (optional) | Detection of each path current,busbar voltage,breaker status,lighting protection status,temperature of box |
| Dimension (W*D*H) (mm) | 400*155 * 300/620*175*450 |
| Weight for reference (Kg) | 15~19 |
| Protection level | IP65 |
| Altitude (m) | ≤5000;50005000 |
| Ambient temperature ( ºC)rdm;C)rdm;C) | -25~+65 |
3 Company Profile:
JIANGSU GSO NEW ENERGY TECH. CO.,LTD was established in Jan. 2010, located in Yangzhou Jiangsu China, is a high-tech enterprises mainly undertaking R&D, production and marketing for photovoltaic products including inverter, solar controller and complete pv power system.ystem.stem.
The company aims at the development in the clean energy field. The products we manufactured and developed include: PV grid inverter, off grid inverter, wind power inverter, transformer, solar street light controller, solar power controller, battery and combiner box. These products are widely used in new energy, solar power station, construction, industry, civil use, electricity, communication, health care and automation & control systems in military, etc., etc. etc.
We have certificates of ISO:9001:2008, ISO14001:2004, TUV, CE, ROHS, CQC and AS4777.
4 For more details pls send us an inquiry↓y↓arr;y↓
Contact Info.:
Attn: Ms. Mary Qian
Tel +86 551 65615695
Mob +86 139 56974669
Web.: www.gsopower.com
