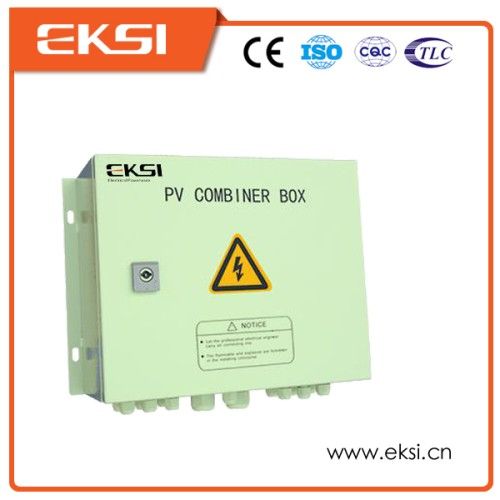

8 String PV Conbiner Box for Solar System
| Model NO. | GSB-8A |
| Certification | ISO, CE, TCI |
| Specification | Normal, CE, TLC, ISO9001, CQC |
| Net Weight | 20kg |
| PV Array Input Path | 8 |
| Communication Protocol | RS485 |
| Protection Degree | IP65 |
| Ambient Temperature | -25 ~+65 |
| Transport Package | Standard Carton Box or Wooden Pallet |
| HS Code | 8543709990 |
| Condition | New |
| Application | Home, Industrial, Commercial |
| Color | Grey |
| Size | 155*400*300mm |
| Input Voltage | Less Than 500V |
| DC Output Circuit Breaker | with |
| Altitude | 5000meters |
| Trademark | EKSI |
| Origin | Yangzhou City, Jiangsu Province, China |
I.Brief Introduction
With need of convenient maintenance and reliability,we general add DC combiner equipment between PV array and PV controller or inverter to reduce wires between PV array and PV controller or inverter.
II.Function Characteristics
Meet requirement of indoor and outdoor installation.
Maximum access 16 paths of PV tandem, maximum current for each path is 20A.
Wide range of DC input voltage, maximum input voltage up to 1000VDC.
Fuse delicated for PV.
High-voltage lighting protection device delicated for PV.
Able to realize parallel operation of multiple machines.
Easy and fast maintenance.
Remote monitor and control(optional).
III.Technical Parameter
IV.Company Profile
JIANGSU EKSI ElECTRICAL MANUFACTURING CO.,LTD locates in Yangzhou Economical and Technological Development Zone of Jiangsu. This is a large technological joint-stock enterprise in China, developing and manufacturing UPS(Uninterrupted Power Supply ), special UPS for electric power industry, EPS, grid-connected solar network, stand-alone inverter, percision air-conditioned, photovoltaic controller telecom power supply, AC&DC stabilized voltage supply, maintenance-free lead-acid batteries, transformers and reactors etc.s etc. etc.
The company is a high-tech enterprise and member of China Power Supply Society. It's one of those which passed authentications of ISO9001:2008 QC system and ISO14001:2004 environment management system, CECP, TLC, CE, TUV, AS4777 etc. Our products are always honored as 'trustworthy products' and 'Famous Brand of Jiangsu'.rand of Jiangsu".quot;.
EKSI has established over 30 branches as well as sales agents and created a complete sales and service network. Our products are widely applied in finance, banking, stock exchange, traffic, civil aviation, CIQ, taxation, education, post & communications, oil as well as chemical industries, and are exported to over 60 countries and districts including Spain, Germany and USA. And experts of power supply protection and services appraised us for our excellent technologies, outstanding qualities, good-quality services.vices.ices.
With need of convenient maintenance and reliability,we general add DC combiner equipment between PV array and PV controller or inverter to reduce wires between PV array and PV controller or inverter.
II.Function Characteristics
Meet requirement of indoor and outdoor installation.
Maximum access 16 paths of PV tandem, maximum current for each path is 20A.
Wide range of DC input voltage, maximum input voltage up to 1000VDC.
Fuse delicated for PV.
High-voltage lighting protection device delicated for PV.
Able to realize parallel operation of multiple machines.
Easy and fast maintenance.
Remote monitor and control(optional).
III.Technical Parameter
| Max.open circuit voltage(V) | 1000 |
| PV array input path(N) | 8/16 path (can be customized) |
| Max.current each PV array(A) | 20 |
| Anti counter protection | Include |
| DC output circuit breaker | Include |
| lightning protection delicated for PV | Include |
| Detection module(optional) | Detection of each path current, bus voltage , breaker status,lightning protection status, temperature of box |
| Comm.method/ Protocol | RS485 bus/standard MODBUS-RTU Protocol |
| ( Box size)(D*W*H)(mm) | 400*155 * 300/560*175*420 |
| Weight for reference (Kg) | 15~30 |
| Protection degree | IP65 |
| Applied altitude (m) | ≤500050005000 |
| Working temperature(ºC)rdm;C)rdm;C) | -25~+65 |
IV.Company Profile
JIANGSU EKSI ElECTRICAL MANUFACTURING CO.,LTD locates in Yangzhou Economical and Technological Development Zone of Jiangsu. This is a large technological joint-stock enterprise in China, developing and manufacturing UPS(Uninterrupted Power Supply ), special UPS for electric power industry, EPS, grid-connected solar network, stand-alone inverter, percision air-conditioned, photovoltaic controller telecom power supply, AC&DC stabilized voltage supply, maintenance-free lead-acid batteries, transformers and reactors etc.s etc. etc.
The company is a high-tech enterprise and member of China Power Supply Society. It's one of those which passed authentications of ISO9001:2008 QC system and ISO14001:2004 environment management system, CECP, TLC, CE, TUV, AS4777 etc. Our products are always honored as 'trustworthy products' and 'Famous Brand of Jiangsu'.rand of Jiangsu".quot;.
EKSI has established over 30 branches as well as sales agents and created a complete sales and service network. Our products are widely applied in finance, banking, stock exchange, traffic, civil aviation, CIQ, taxation, education, post & communications, oil as well as chemical industries, and are exported to over 60 countries and districts including Spain, Germany and USA. And experts of power supply protection and services appraised us for our excellent technologies, outstanding qualities, good-quality services.vices.ices.
