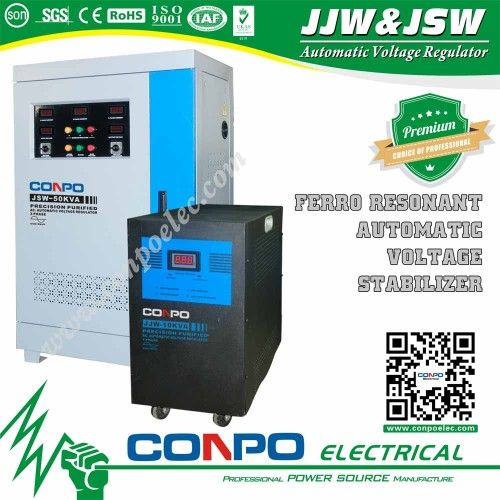

Jjw/Jsw Seriesferro-Resonant/Precision Purified/Contactless Voltage Stabilizer/Regulator

Jjw/Jsw Seriesferro-Resonant/Precision Purified/Contactless Voltage Stabilizer/Regulator

bargain

add to cart
Model NO. JJW-0.5KVA~30KVA 1Phase; JSW-3KVA~100KVA 3Phase
Phase Single Phase
Usage Suitable for Any Loading Devices
Iron Core Shape E
Application Range Used in Region Where The Net Voltage Is Flucuating
Trademark CONPO
Origin Nanjing, China
Current Type AC
Frequency Characteristics 50Hz+/-2Hz
Frequency 50Hz+/-2Hz
Power Source Ferro Resonant/Rrecision Purified/Capacitor-Type
Brand Conpo
Specification CE, RoHS, SGS, ISO9001, CNCA, SONCAP, SASO etc.
HS Code 8504401990
Feature:
JJW series Ferro resonant/Precise purifying AC. Power Supply adopts the power regulation technology of sine energy distribution formula, which is advanced in the world and represents the latest development of AC. Stabilizing technology. Its circuit is composed of sine energy distributor and large power wave filter by paralleling. It has the advantages as high accuracy of stabilization, strong overload capacity, high efficiency, successively working for long period and long service time etc., it is an ideal replacement for the 614 series electronic voltage stabilizer and magnetic saturating voltage stabilizer, also it can provide a quiet and reliable working environment.
Application:
It is suitable in computer network project, electronic instruments, armarium, research, institute, measurement and test device, factory test board and so on.
Specification:
Phase No.: Single phase/Three phase
Input voltage: 175~260VAC/1Phase, 300~450VAC/3Phase
Output voltage: 220VAC/1Phase, 380VAC/3Phase
Accuracy of voltage: +/-1%
Frequency: 50Hz+/-2Hz
Efficiency: ﹥90%;90%
Response time: <20ms~100ms00ms
Ambient Temperature: -10C~+40C
Insulation resistance: ﹥2MΩ;2MΩ
Waveform distortion: <5%t;5%
Protection function: Bypass, Over voltage, over current, over load, time-delay, fault and alarm, short circuit protection etc.
Remarks:
Custom-made specifications are acceptable.
1). 1Phase JJW series Specifications:
Model Main. Specifications Qty. per pkg Package size Remarks
JJW-0.5KVA 500VA/400W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 43*25*38CM Custom-made specifications are acceptable.
JJW-1KVA 1000VA/800W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 43*25*38CM Custom-made specifications are acceptable.
JJW-2KVA 2000VA/1600W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 47*26*43.5CM Custom-made specifications are acceptable.
JJW-3KVA 3000VA/2400W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 47*26*43.5CM Custom-made specifications are acceptable.
JJW-5KVA 5000VA/4000W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 53*30.5*48CM Custom-made specifications are acceptable.
JJW-6KVA 6000VA/4800W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 53*30.5*48CM Custom-made specifications are acceptable.
JJW-8KVA 8000VA/6400W, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 58.5*32*55.5CM Custom-made specifications are acceptable.
JJW-10KVA 10KVA/8KW, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 58.5*32*55.5CM Custom-made specifications are acceptable.
JJW-15KVA 15KVA/12KW, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 44*49.5*86CM Custom-made specifications are acceptable.
JJW-20KVA 20KVA/16KW, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 44*49.5*86CM Custom-made specifications are acceptable.
JJW-30KVA 30KVA/24KW, Vi:175~260V/Vo: 220V+/-1%, Ferro Resonant AVR 1PC 44*49.5*86CM Custom-made specifications are acceptable.

2). 3Phase JSW series Specifications:
Model Main. Specifications Qty. per pkg Package size Remarks
JSW-3KVA 3Phase,3000VA/2400W, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 44*36*77CM Custom-made specifications are acceptable.
JSW-6KVA 3Phase,6000VA/4800W, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 39.5*44.5*84CM Custom-made specifications are acceptable.
JSW-9KVA 3Phase,9000VA/7200W, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 39.5*44.5*84CM Custom-made specifications are acceptable.
JSW-15KVA 3Phase,15KVA/12KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 49*53*94CM Custom-made specifications are acceptable.
JSW-20VA 3Phase,20KVA/16KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 49*53*94CM Custom-made specifications are acceptable.
JSW-30KVA 3Phase,30KVA/24KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 55.5*63*109CM Custom-made specifications are acceptable.
JSW-40KVA 3Phsae,40KVA/32KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 85*60*148CM Custom-made specifications are acceptable.
JSW-50KVA 3Phase,50KVA/40KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 85*60*148CM Custom-made specifications are acceptable.
JSW-60KVA 3Phase,60KVA/48KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 85*60*148CM Custom-made specifications are acceptable.
JSW-80KVA 3Phase,80KVA/64KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 90.5*68*164CM Custom-made specifications are acceptable.
JSW-100KVA 3Phase,100KVA/80KW, Vi: 300~450V/Vo: 380V+/-1%, Ferro Resonant AVR 1PC 90.5*68*164CM Custom-made specifications are acceptable.
