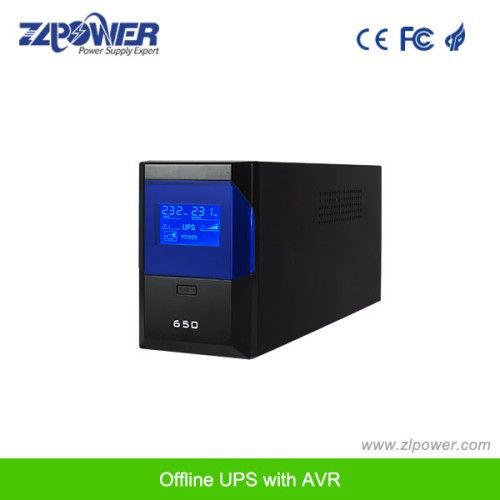

Offline UPS with AVR Mainly Used for Computer (N400VA-N1500VA)
| Model NO. | N400VA-N1500VA |
| Type | Standby |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Small Type |
| Brand | Zlpower |
| Power Factor | 0.6 |
| Frequency | 50Hz/60Hz |
| Battery Recharge Time | 8hours to 90% of Capacity Full Load Discharge |
| Short Circuit Protection(Battery Mode) | Auto Protect |
| Humidity | 0~90% Non-Condensing |
| Specification | CE, ISO9001, RoHS |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | Short Circuit |
| Classification | Lighting/Power |
| Standby UPS | Square Wave Output UPS |
| Equipment Mode | Centralized Model |
| Nominal Capacity | 400va~1500va |
| Input Voltage Range | 140~290V/70~145V |
| Transfer Time | 10ms |
| Short Circuit Protection(AC Mode) | Fuse |
| Temperature | 0~40centi-Degree |
| Trademark | ZLPOWER/OEM |
| Origin | Shenzhen, China |
Offline UPS with AVR Application: Computer, printer, POS, Computer Peripherals
Offline UPS with AVR mainly used for computer
Features:
Microprocessor control guarantees high reliability Equipped with Boost and Buck AVR to stabilize input voltage.
Wide input voltage range, AVR function
Built in DC start function enables UPS to be started up without AC power supply.
SMD technology to save space, light weight
Intelligent battery management Smart RS-232 or USB communication port with free download software from
Internet
Modem/Line Surge Protection: RJ11/RJ12/RJ45
Overload/ Over charge/ Short-circuit protection
Low battery alarm, LED status display
Auto restart while AC recovery, Night charging(optional)
Specificaiton:
Offline UPS with AVR mainly used for computer
Features:
Microprocessor control guarantees high reliability Equipped with Boost and Buck AVR to stabilize input voltage.
Wide input voltage range, AVR function
Built in DC start function enables UPS to be started up without AC power supply.
SMD technology to save space, light weight
Intelligent battery management Smart RS-232 or USB communication port with free download software from
Internet
Modem/Line Surge Protection: RJ11/RJ12/RJ45
Overload/ Over charge/ Short-circuit protection
Low battery alarm, LED status display
Auto restart while AC recovery, Night charging(optional)
Specificaiton:
| N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 | |||
| Nominal Capacity | 400VA 240W | 500VA 300W | 650VA/ 390W | 800VA/ 80W | 1000VA/ 600W | 1200VA/ 720W | 1500VA/ 900W | ||
| Input | Voltage Range | 145~280VAC/ 80VAC-150VAC | |||||||
| Frequency | 50/60Hz | ||||||||
| Output | Voltage Range | 220VAC/120VAC ±10%usmn;10%usmn;10% | |||||||
| Frequency | 50Hz/60Hz ±5%lusmn;5%lusmn;5% | ||||||||
| Output Waveform | Sine Wave(AC Mode),Square Wave (Battery mode) | ||||||||
| Transfer time | <8ms;8ms | ||||||||
| Battery | Type | Sealed free maintenance lead acid battery | |||||||
| Capacity | 12V4AH* 1PCS | 12V,7AH *1PCS | 12V,7AH 1PCS | 12V,9AH *1PCS | 12V,7AH *2PCS | 12V,9AH *2PCS | 12V,9AH *2PCS | ||
| Recharge Time | 8 hrs to 90% of capacity full load discharge | ||||||||
| Protection | Auto protect | ||||||||
| Back-up time(at a PC load with 15'monitor)nitor) | 10minutes | 18minutes | 18minutes | 22minutes | 30minutes | 35minutes | 35minutes | ||
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload | ||||||||
| DB-9 port,communication software | Optional RS232,RJ11,RJ45,USB | ||||||||
| Protection | AC mode | Fuse | |||||||
| Short circuit | AC | Fuse | |||||||
| Invert mode | Auto protect | ||||||||
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds | ||||||
| Low battery voltage | Alarm beeps every second | ||||||||
| Overload | Alarm beeps continuously | ||||||||
| Indicator light | Auto adjust | Green lighting: AC mode | |||||||
| Battery Discharge | Red lighting: Battery mode | ||||||||
| Environment | Operating temperature | 0ºC~40ºCC~40ºCrdm;CC~40ºC | |||||||
| Operating Humidity | 0-90% non-condensing | ||||||||
| Noise | <35dB (1 meter distance)nce) | ||||||||
| UPS Dimension(L×W×H)mm;W×H)mms;H)mm;W×H)mm | 250*90*145 | 291*90*145 | 330*90*145 | 340x122x190 | |||||
| Net weight (N.W) | 4KG | 4.5KG | 5KG | 8.4KG | 9.4KG | 9.4KG | |||
| Gross weight (G.W) | 4.3KG | 4.8KG | 5.3KG | 8.7KG | 9.7KG | 9.7KG | |||
