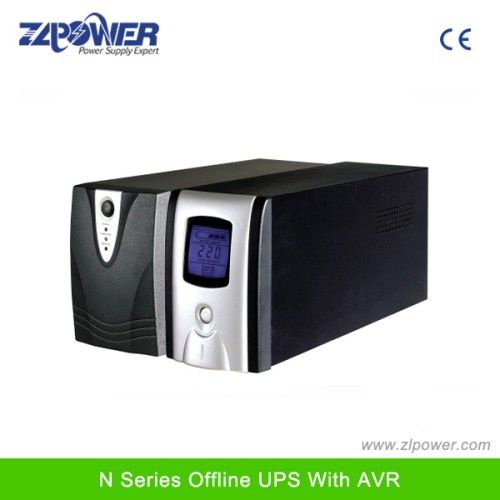

Offline UPS 1000va with Full AVR

Offline UPS 1000va with Full AVR

20-50 USD

add to cart
Model NO. N400~N1500
Type Standby
Nominal Capacity 400va~1500va
Input Voltage Range 140-290VAC/70-145VAC
Transfer Time 10ms
Battery Protection Auto Protect
Operating Temperature 0-40centi-Degree
Trademark ZLPOWER
Origin China
Phase Single Phase
Protection Short Circuit
Power Factor 0.6
Frequency 50Hz/60Hz
Battery Recharge Time 8hours to 90% of Capacity Full Load Discharge
AC Mode Protection Fuse
Noise 35db
Specification CE
HS Code 8504402000
N series offline UPS is with LED indicators display and built in AVR, from 400VA to 1500VA, competitive price, smart size and low power consumption. Mainly used for computer, PCs, computer peripherals.
Offline UPS with AVR
Main Features:
Wide input voltage and frequency range. Equipped with Boost and Buck AVR to stabilize input voltage.
Built in DC start function enables UPS to start up without AC power supply.
Intelligent CPU control and battery management, support RS232 and USB communication monitoring;
Modem/Line Surge Protection: RJ11/RJ12/RJ45.
Overload/ Over charge/ Short-circuit/Low battery automatic alarm protection.
Auto restart while AC recovery.
Adopt the full bridge inverter technology, the system more stable and reliable;
Battery mode no-load automatic shutdown after two minutes.
IEC cables connect with PC.
Can match with various generators.
Offline UPS Model N400 N500 N650 N800 N1000 N1200 N1500
Nominal Voltage 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC
Frequency 50/60Hz
Output Voltage Range 220VAC ± 10%smn; 10%smn; 10%
Frequency 50Hz ± 5%usmn; 5%usmn; 5%
Output Waveform Square Wave
Transfer time < 10ms10ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V, 4AH *1PCS 12V, 7AH *1PCS 12V, 7AH *1PCS 12V, 9AH *1PCS 12V, 7AH *2PCS 12V, 9AH *2PCS 12V, 9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time( Full load ) 3~5 min 5~7 min 7~10 min 6~8 min 5~7 min 8~10 min 10-12min
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port, communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0C~40C
Operating Humidity 0-90% non-condensing
Noise < 35dB (1 meter distance)nce)
UPS Dimension (L× W× H) mm× H) mm H) mm× H) mm 325*90*150 335*100*150 345*125*190
Net weight (N. W) 4.5KG 6.5KG 6.8KG 7.5KG 11KG 12KG 13KG
Gross weight (G. W) 4.7KG 6.7KG 7KG 7.7KG 11.3KG 12.3KG 13.3KG
