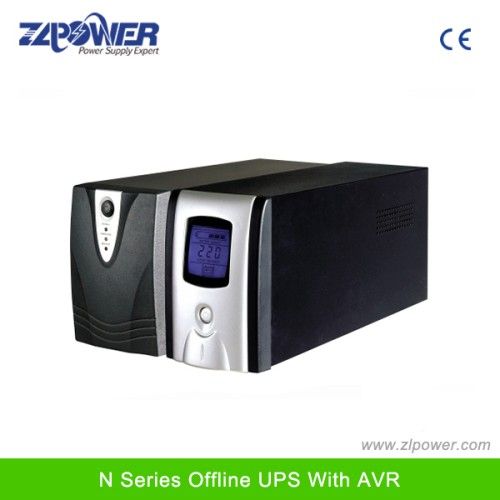

Offline UPS with AVR
Product Features:
IP/OP: 110/220VAC 50/60Hz
IP/OP: 110/220VAC 50/60Hz
KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Function & Characteristic:stic:stic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
APPLICATION
Home, computer, printer, POS, Comouter Peripherals
Product performance
TECHNICAL SPECIFICATION
MODEL N400 N500 N650 N800 N1000 N1200 N1500
Nominal Capacity 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC/ 80VAC-150VAC
Frequency 50/60Hz
Output Voltage Range 220VAC/120VAC ± 10%smn; 10%smn; 10%
Frequency 50Hz/60Hz ± 5%usmn; 5%usmn; 5%
Output Waveform Square Wave
Transfer time < 10ms10ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V, 4AH *1PCS 12V, 7AH *1PCS 12V, 7AH *1PCS 12V, 9AH *1PCS 12V, 7AH *2PCS 12V, 9AH *2PCS 12V, 9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time( Full load ) 3~5 min, 5~7 min, 7~10 min, 6~8 min, 5~7 min, 8~10 min, 10-12min
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port, communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0C~40COperating Humidity 0-90% non-condensing
Noise <35dB(1 meter distance)nce)
UPS Dimension(L*W*H): 325*90*150mm; 335*100*150mm; 345*125*190mm
Net weight (N. W): 4.50KG, 6.50KG, 6.80KG, 7.50KG, 11.00KG, 12.00KG, 13.00KG
Gross weight (G. W) 4.70KG, 6.70KG, 7.00KG, 7.70KG, 11.30KG, 12.30KG, 13.30KG
