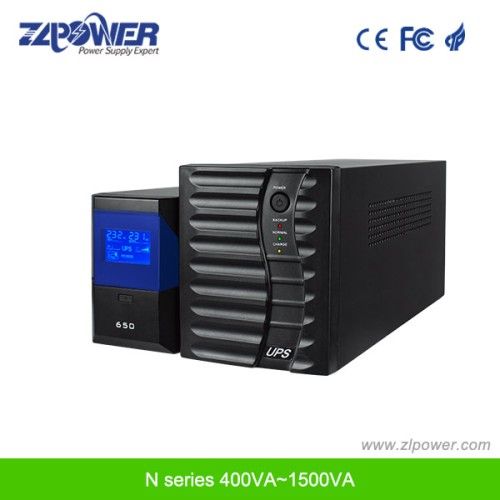

Back-UPS, offline UPS with AVR, Desktop UPS, PC UPS 200w-900w

Back-UPS, offline UPS with AVR, Desktop UPS, PC UPS 200w-900w

500+
15-69 USD

add to cart
Model NO. N400~N1500
Type Line Interactive
Application Computer
Standby Time Standard Machine
Output Capacity Small Type
Brand Zlpower
Output Voltage 90-145 Vac/150-290 Vac
Input voltage range 80~150VAC/145~280VAC
Operating temperature 0-40 degree
Noise <35dB;35dB
Transport Package Neutral Packing or According to Customer′s Neede;s Need;s Need
Origin China
Phase Single Phase
Protection Overvoltage
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Output Waveform Sine Wave
Battery type Built in sealed free maintenance lead acid battery
Output voltage range 120/220/230/240VAC
Brand Name ZLPOWER/OEM
Trademark ZLPOWER
Specification CE
HS Code 8504402000
Back-UPS, offline UPS with AVR, Desktop UPS, PC UPS 200w-900w
Protect critical hardware and data while minimizing downtime
Reduce energy cost with efficient battery backup and surge solutions
Prevent data loss with safe unattended PC shutdown
Application:
Home, computer, printer, POS, Computer Peripherals
Features:
400va~1500va back up offline pc ups with AVR and off mode charging
Microprocessor control guarantees high reliability
Equipped with Boost and Buck AVR to stabilize input voltage.
Wide input voltage range, AVR function
Built in DC start function enables UPS to be started up without AC power supply.
SMD technology to save space, light weight
Intelligent battery management
Smart RS-232 or USB communication port with free download software from Internet
Modem/Line Surge Protection: RJ11/RJ12/RJ45
Overload/ Over charge/ Short-circuit protection
Low battery alarm, LED status display
Auto restart while AC recovery, Night charging(optional)
Specification:
MODEL N400 N500 N650 N800 N1000 N1200 N1500
Nominal Capacity 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC/ 80VAC-150VAC
Frequency 50/60Hz
Output Voltage Range 220VAC/120VAC ± 10%smn; 10%smn; 10%
Frequency 50Hz/60Hz ± 5%usmn; 5%usmn; 5%
Output Waveform Square Wave
Transfer time < 10ms10ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V, 4AH *1PCS 12V, 7AH *1PCS 12V, 7AH *1PCS 12V, 9AH *1PCS 12V, 7AH *2PCS 12V, 9AH *2PCS 12V, 9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time( Full load ) 3~5 min 5~7 min 7~10 min 6~8 min 5~7 min 8~10 min 10-12min
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port, communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0C~40C
Operating Humidity 0-90% non-condensing
Noise < 35dB(1 meter distance)nce)
UPS Dimension(L× W× H)mmW× H)mm; H)mmW× H)mm 325*90*150 335*100*150 345*125*190
Net weight (N. W) 4.5KG 6.5KG 6.8KG 7.5KG 11KG 12KG 13KG
Gross weight (G. W) 4.7KG 6.7KG 7KG 7.7KG 11.3KG 12.3KG 13.3KG
