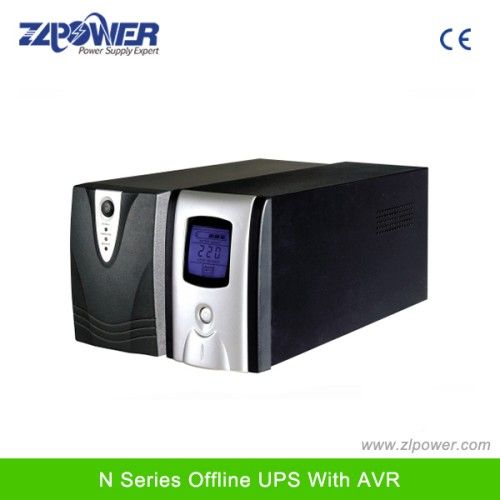

Offline UPS 400va-1500va with AVR for Computers

Offline UPS 400va-1500va with AVR for Computers

20-50 USD

add to cart
Model NO. N400~N1500
Line Surge Protection Rj11/Rj12/RJ45, Communication Interface: RS232
Display Low Battery Alarm, LED Status Display
Transfer Time 10ms
Operation Temperature 0~40centi-Degree
Noise 35db
Specification CE
HS Code 850402000
Backup Time 7-10min
Prtection AVR, Overload and Short Circuit Protection
Battery Recharge Time 8hours to 90% of Capacity Full Load Discharge
AC Mode Protection Fuse
Operating Humidity 0~90% Non-Condensing
Trademark ZLPOWER
Origin Shenzhen, China
N series offline UPS is with LED indicators display and built in AVR, from 400VA to 1500VA, competitive price, smart size and low power consumption. Mainly used for computer, PCs, computer peripherals.
Offline UPS with AVR
Main Features:
Wide input voltage and frequency range. Equipped with Boost and Buck AVR to stabilize input voltage.
Built in DC start function enables UPS to start up without AC power supply.
Intelligent CPU control and battery management, support RS232 and USB communication monitoring;
Modem/Line Surge Protection: RJ11/RJ12/RJ45.
Overload/ Over charge/ Short-circuit/Low battery automatic alarm protection.
Auto restart while AC recovery.
Adopt the full bridge inverter technology, the system more stable and reliable;
Battery mode no-load automatic shutdown after two minutes.
IEC cables connect with PC.
Can match with various generators.
Offline UPS with AVR MODEL N400 N500 N650 N800 N1000 N1200 N1500
Nominal Capacity 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC/ 80VAC-150VAC
Frequency 50/60Hz
Output Voltage Range 220VAC/120VAC ±10%usmn;10%usmn;10%
Frequency 50Hz/60Hz ±5%lusmn;5%lusmn;5%
Output Waveform Sine Wave (AC Mode), Square Wave (Battery mode)
Transfer time < 8ms 8ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V,4AH *1PCS 12V,7AH *1PCS 12V,7AH *1PCS 12V,9AH *1PCS 12V,7AH *2PCS 12V,9AH *2PCS 12V,9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time(at a PC load with 15'monitor)nitor) 10 minutes 18 minutes 18 minutes 22 minutes 30 minutes 35 minutes 35 minutes
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0~40centi-degree
Operating Humidity 0-90% non-condensing
Noise <35dB (1 meter distance)nce)
UPS Dimension(L×W×H)mm;W×H)mms;H)mm;W×H)mm 250*90*145 291*90*145 330*90*145 340x122x190
Net weight (N.W) 4KG 4.5KG 5KG 8.4KG 9.4KG 9.4KG
Gross weight (G.W) 4.3KG 4.8KG 5.3KG 8.7KG 9.7KG 9.7KG
