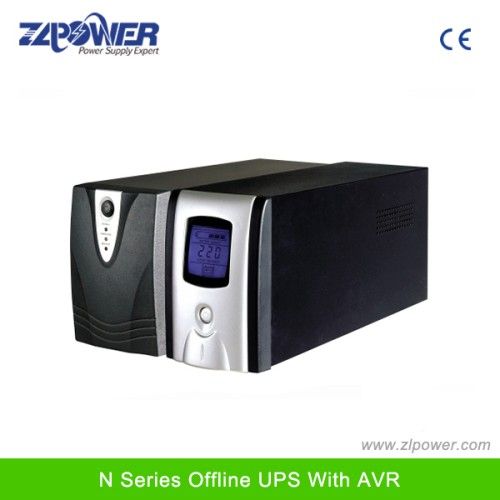

Offline UPS 400VA-1500VA With AVR and Standby

Offline UPS 400VA-1500VA With AVR and Standby

25-50 USD

add to cart
Model NO. N400~N1500
Type Standby
Application Communication
Standby Time Standard Machine
Output Capacity Medium Type
Brand OEM
Input Voltage 80~140VAC/145-280VAC
Rechage Time 8 Hrs to 90% of Capacity Full Discharge
Display LED and LED Display
Protect Fuse Ptotect and Auto Protect
Operation Temperature 0~40centi-Degree
Specification CE
HS Code 854402000
Phase Single Phase
Protection All Types of Power Failure
Classification Lighting/Power
Standby UPS Square Wave Output UPS
Equipment Mode Decentralized
AC Input and Output Voltage 110V, 220V AC
UPS Battery Sealed Maintenance-Free Lead-Acid Battery
Dp-9 Port Optional RS232, Rj11, RJ45, USB
Transfer Time Less Than 10ms
Output Voltage 100/220/Va+_10%
Trademark ZLPOWER
Origin Shenzhen, China
Offline UPS is offline uninterruptible power supply, also called backup UPS, standby UPS, line interactive UPS or PC UPS, which can supply power to the electronic advices or electrical equipments when their power fail to work or to be abnormal, most of them used in supporting server, computing equipment as computers or some testing system.
It is the best partner for computer and its peripherals, typical work time is 10-35minutes, and extension is not available.
Product snapshot:
Power Rating: 400, 500, 650, 800, 1000, 1200, 1500 VA tower models
Voltage: 80 to 150Vac (low voltage) 145 to 280Vac (high voltage)
Frequency: 50/60 Hz (auto-sensing)
Technology: Automatic Voltage Regulation
Trading terms for reference:
Delivery time: 15days-25days, below 1000pcs within 15days, above 1000pcs within 25days.
Payment terms: TT, LC, Western Union, Money gram.
Warranty: 2 years, 2% spare parts.
Offline UPS with AVR MODEL N400 N500 N650 N800 N1000 N1200 N1500
Nominal Capacity 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC/ 80VAC-150VAC
Frequency 50/60Hz
Output Voltage Range 220VAC/120VAC ±10%usmn;10%usmn;10%
Frequency 50Hz/60Hz ±5%lusmn;5%lusmn;5%
Output Waveform Sine Wave (AC Mode), Square Wave (Battery mode)
Transfer time < 8ms 8ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V,4AH *1PCS 12V,7AH *1PCS 12V,7AH *1PCS 12V,9AH *1PCS 12V,7AH *2PCS 12V,9AH *2PCS 12V,9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time(at a PC load with 15'monitor)nitor) 10 minutes 18 minutes 18 minutes 22 minutes 30 minutes 35 minutes 35 minutes
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0~40centi-degree
Operating Humidity 0-90% non-condensing
Noise <35dB (1 meter distance)nce)
UPS Dimension(L×W×H)mm;W×H)mms;H)mm;W×H)mm 250*90*145 291*90*145 330*90*145 340x122x190
Net weight (N.W) 4KG 4.5KG 5KG 8.4KG 9.4KG 9.4KG
Gross weight (G.W) 4.3KG 4.8KG 5.3KG 8.7KG 9.7KG 9.7KG
