Emergency Computer UPS with AVR Function

Emergency Computer UPS with AVR Function

50+
23-69 USD

add to cart
Model NO. N400~N1500
Type Line Interactive UPS
Application Communication
Standby Time Standard Machine
Output Capacity Medium Type
Brand Zlpower
Communication Software Snmp, USB, RS232, RJ45/11
Trademark ZLPOWER
Specification 5kgs-13kgs
HS Code 8504402000
Phase Single Phase
Protection Short Circuit
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Decentralized
Advantage Built in Avr
Control CPU Control
Transport Package Each PCS in One Gift Box, Two Boxes in One Carton
Origin Shenzhen, China
Emergency computer UPS 500va with internal CPU control and AVR function
Standby offline UPS 500va, 1000va, NT series
Application: Computer, printer and office equipments
Backtime: 5-10minutes
Optional: RS232, USB, RJ45
IP/OP: 110/220VAC 50/60Hz
IP/OP: 110/220VAC 50/60Hz
KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45,
Communication Interface: RS232
Function & Characteristic:istic:stic:
CPU control
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)

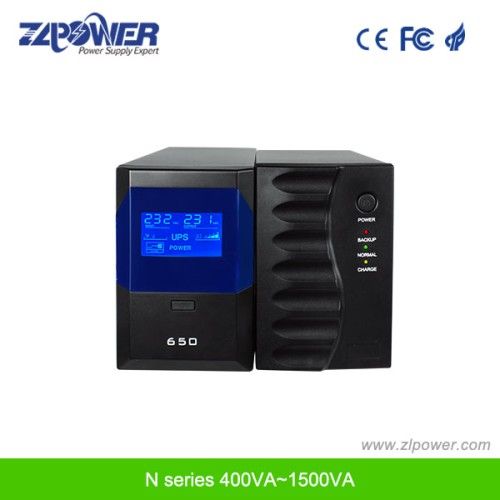

N Series is specially designed for PC users.
This series is also suitable for use with computer peripherals or POS and will become an attractive piece of equipment in the office or at home.
Committed to our objective of 'Quality First', the N Series adopts the latest SMD technology plus on-line UPS high frequency technology to achieve a technical breakthrough of 40kHz operating frequency. Its dimensions and weight have been reduced dramatically.
Besides its space-saving compact size, these UPSs also impress you with their elegant appearance. The one-piece plastic housing in asymmetric streamlined design adds to the convenience for use by individual and home users.
Offline UPS with AVR MODEL N400 N500 N650 N800 N1000 N1200 N1500
Nominal Capacity 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W
Input Voltage Range 145~280VAC/ 80VAC-150VAC
Frequency 50/60Hz
Output Voltage Range 220VAC/120VAC ±10%usmn;10%usmn;10%
Frequency 50Hz/60Hz ±5%lusmn;5%lusmn;5%
Output Waveform Sine Wave (AC Mode), Square Wave (Battery mode)
Transfer time < 8ms 8ms
Battery Type Sealed free maintenance lead acid battery
Capacity 12V,4AH *1PCS 12V,7AH *1PCS 12V,7AH *1PCS 12V,9AH *1PCS 12V,7AH *2PCS 12V,9AH *2PCS 12V,9AH *2PCS
Recharge Time 8 hrs to 90% of capacity full load discharge
Protection Auto protect
Back-up time(at a PC load with 15'monitor)nitor) 10 minutes 18 minutes 18 minutes 22 minutes 30 minutes 35 minutes 35 minutes
Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication software Optional RS232, RJ11, RJ45, USB
Protection AC mode Fuse
Short circuit AC Fuse
Invert mode Auto protect
Alarm Alarm Battery discharge Alarm beeps every four seconds
Low battery voltage Alarm beeps every second
Overload Alarm beeps continuously
Indicator light Auto adjust Green lighting: AC mode
Battery Discharge Red lighting: Battery mode
Environment Operating temperature 0~40centi-degree
Operating Humidity 0-90% non-condensing
Noise <35dB (1 meter distance)nce)
UPS Dimension(L×W×H)mm;W×H)mms;H)mm;W×H)mm 250*90*145 291*90*145 330*90*145 340x122x190
Net weight (N.W) 4KG 4.5KG 5KG 8.4KG 9.4KG 9.4KG
Gross weight (G.W) 4.3KG 4.8KG 5.3KG 8.7KG 9.7KG 9.7KG
