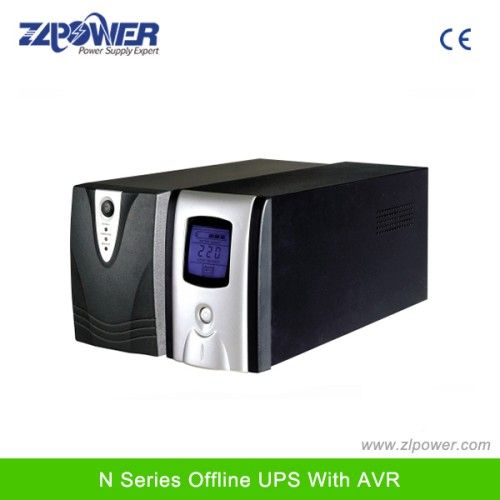

650va Standby UPS Line Interactive UPS Offline UPS
| Model NO. | Standby UPS N650 |
| Type | Standby |
| Application | Computer |
| Standby Time | Standard Machine |
| Output Capacity | 650va |
| Brand | Zlpower |
| Power Factor | 0.6 |
| Display | LED |
| Appliance | Computer/Home Appliance |
| Wide AVR Function | Yes |
| Optional Front Panel | Yes |
| Specification | CE ISO |
| HS Code | 8504402000 |
| Phase | Single Phase |
| Protection | Unbalanced Loads |
| Classification | Lighting/Power |
| Standby UPS | Square Wave Output UPS |
| Equipment Mode | Centralized Model |
| Capacity | 650va(400-1500va) |
| Input Voltage | 140-290VAC |
| Communication Port | RS232/USB/RJ45 etc |
| off Mode Charging | Yes |
| Transfer Time | Less Than 10ms |
| Trademark | ZLPOWER |
| Origin | China |
650Va Standby UPS Line Interactive UPS Offline UPS
Standby UPS 650Va Charaters:
1: Built-in UPS Batteries
2: UPS with CPU Control
3: Standby offline Mode
4: UPS Protection for Overload and short circuit protection
Standby UPS 650Va Capacity range from 400Va-1500Va (220/230/240VAC or 110/120VAC, 50/60Hz)
Standby UPS 650Va KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Control mode: CPU controller
Function & Characteristic:stic:stic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
Built-in Sealed lead acid batteries inside
USB Port is optional
Standby offline Mode
CE certificate, low fault rate and 1 year warranty
Quality is competitive with APC, Santak and Eaton UPS.
Standby UPS 650Va Charaters:
1: Built-in UPS Batteries
2: UPS with CPU Control
3: Standby offline Mode
4: UPS Protection for Overload and short circuit protection
Standby UPS 650Va Capacity range from 400Va-1500Va (220/230/240VAC or 110/120VAC, 50/60Hz)
Standby UPS 650Va KEY FEATURES
Optional function
Line Surge Protection: RJ11/RJ12/RJ45, Communication Interface: RS232
Control mode: CPU controller
Function & Characteristic:stic:stic:
AVR, Overload and short circuit protection
Low battery alarm, LED status display
UPS Auto on when AC back, Night charging(optional)
Built-in Sealed lead acid batteries inside
USB Port is optional
Standby offline Mode
CE certificate, low fault rate and 1 year warranty
Quality is competitive with APC, Santak and Eaton UPS.
| Standby UPS MODEL | N400 | N500 | N650 | N800 | N1000 | N1200 | N1500 | ||
| Nominal Voltage | 400VA/240W | 500VA/300W | 650VA/390W | 800VA/480W | 1000VA/600W | 1200VA/720W | 1500VA/900W | ||
| Input | Voltage Range | 145~280VAC | |||||||
| Frequency | 50/60Hz | ||||||||
| Output | Voltage Range | 220VAC ±10%usmn;10%usmn;10% | |||||||
| Frequency | 50Hz ±5%lusmn;5%lusmn;5% | ||||||||
| Output Waveform | Square Wave | ||||||||
| Transfer time | < 10ms10ms | ||||||||
| Battery | Type | Sealed free maintenance lead acid battery | |||||||
| Capacity | 12V,4AH *1PCS | 12V,7AH *1PCS | 12V,7AH *1PCS | 12V,9AH *1PCS | 12V,7AH *2PCS | 12V,9AH *2PCS | 12V,9AH *2PCS | ||
| Recharge Time | 8 hrs to 90% of capacity full load discharge | ||||||||
| Protection | Auto protect | ||||||||
| Back-up time( Full load ) | 3~5 min | 5~7 min | 7~10 min | 6~8 min | 5~7 min | 8~10 min | 10-12min | ||
| Function | Auto voltage output on AC mode, Auto shutoff if short circuit or overload | ||||||||
| DB-9 port,communication software | Optional RS232, RJ11, RJ45, USB | ||||||||
| Protection | AC mode | Fuse | |||||||
| Short circuit | AC | Fuse | |||||||
| Invert mode | Auto protect | ||||||||
| Alarm | Alarm | Battery discharge | Alarm beeps every four seconds | ||||||
| Low battery voltage | Alarm beeps every second | ||||||||
| Overload | Alarm beeps continuously | ||||||||
| Indicator light | Auto adjust | Green lighting: AC mode | |||||||
| Battery Discharge | Red lighting: Battery mode | ||||||||
| Environment | Operating temperature | 0C~40C | |||||||
| Operating Humidity | 0-90% non-condensing | ||||||||
| Noise | <35dB (1 meter distance)nce) | ||||||||
| UPS Dimension (L×W×H) mmW×H) mm;H) mmW×H) mm | 325*90*150 | 335*100*150 | 345*125*190 | ||||||
| Net weight (N.W) | 4.5KG | 6.5KG | 6.8KG | 7.5KG | 11KG | 12KG | 13KG | ||
| Gross weight (G.W) | 4.7KG | 6.7KG | 7KG | 7.7KG | 11.3KG | 12.3KG | 13.3KG | ||
