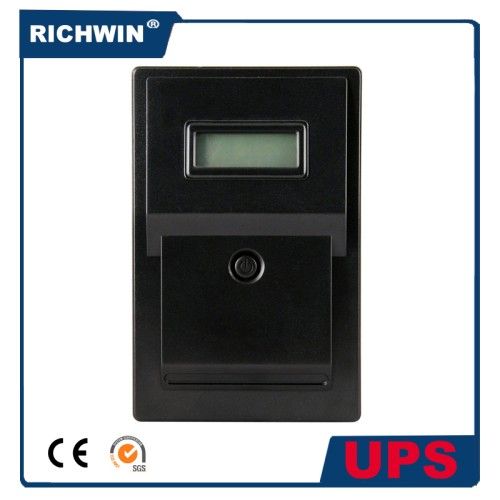

0.5-6kVA Solar System Pure Sine Wave PC Line Interactive Offline UPS
bargain
add to cart| Model NO. | RV500-1000 |
| Type | Line Interactive |
| Application | Home/Office |
| Standby Time | Standard Machine |
| Output Capacity | Medium Type |
| Brand | Richwin/OEM/ODM/Neutral |
| Capacity | 500va-6000va |
| Display | LED/LCD Optional |
| Voltage Range | 81-145 VAC / 145-275VAC |
| Transport Package | Carton/Wooden |
| Origin | Shenzhen, China |
| Phase | Single Phase |
| Protection | Overvoltage |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Centralized Model |
| Outlets | Universal |
| Certificate | Ce, IEC,LVD |
| Voltage | 110/120/220/230(± 25%) VAC 25%) VAC25%) VAC |
| Trademark | Richwin/OEM/ODM/Neutral |
| Specification | upon the model |
| HS Code | 8504402000 |
0.5-6KVA Solar System Pure Sine Wave PC Line Interactive Offline UPS
RV500-1000 Line Interactive UPS
Charecteristics
1. Accurate pure sine wave output; strong capacity of different load
2. Smart RS232 communication port (only for model B)
3. Advanced performance due to the CPU control
4. Wide range with power input and accurate output AVR
5. Perfect protection for overload, short circuit, over-voltage, low-voltage and over-heating etc
6. LED/LCD display (optional)
7. UPS start automatically when the main power recover (optional)
8. Intelligent battery management
Specification
RV500-1000 Line Interactive UPS
Charecteristics
1. Accurate pure sine wave output; strong capacity of different load
2. Smart RS232 communication port (only for model B)
3. Advanced performance due to the CPU control
4. Wide range with power input and accurate output AVR
5. Perfect protection for overload, short circuit, over-voltage, low-voltage and over-heating etc
6. LED/LCD display (optional)
7. UPS start automatically when the main power recover (optional)
8. Intelligent battery management
Specification
| MODEL | RV500 | RV800 | RV1000 | RV1500 | RV2000 | RV3000 | RV5000 | RV6000 | ||||||
| CAPACITY | 500VA/300W | 800VA/480W | 1KVA /700W | 1500VA/1050W | 2KVA /1400W | 3KVA /2100W | 5KVA /3000W | 6KVA /3500W | ||||||
| INPUT | ||||||||||||||
| Voltage | 110/120/220/230(± 25%) VAC25%) VAC25%) VAC | |||||||||||||
| Voltage Range | 81-145 VAC / 145-275VAC | |||||||||||||
| Frequency Range | 60/50 ± 1% Hz (auto sensing)sensing)sensing) | 40-68Hz | ||||||||||||
| OUTPUT | ||||||||||||||
| AC Voltage Regulation | ±10%usmn;10%usmn;10% | |||||||||||||
| Frequency Range | 60 Hz or 50 Hz ±1 Hzsmn;1 Hzsmn;1 Hz | |||||||||||||
| Transfer Time | Typical 2-6 ms, 10ms max. | |||||||||||||
| Waveform (Batt. Mode) | Pure sine Wave | |||||||||||||
| BATTERY | ||||||||||||||
| Battery Type & Numberumberumber | 12V/7AHx1 | 12V/9AHx1 | 12 V/7AH x 2 | 12 V/9AH x 2 | 12 V/17AH x 2 | 12 V/17AH x 2 | 12 V/17 AH x 4 | DC48V | ||||||
| backup time@80% load | 20 minutes | 25 minutes | 13 mins | 11 mins | 16 mins | 10 mins | 14 mins | / | ||||||
| Recharge Current ( Standard model) | Standard model:max 3A | Standard model:max 5A | ||||||||||||
| Recharge Current (S model) | Long back up S model:max 20-25A | |||||||||||||
| INDICATORS | ||||||||||||||
| LCD/LED | Optional | |||||||||||||
| PROTECTION | ||||||||||||||
| Overload | Shut down if overload exceeds 120% /normal value for 30 seconds | |||||||||||||
| Short circuit | Cut off immediately or input circuit breaker protection | |||||||||||||
| ALARM | ||||||||||||||
| Low Battery | Beeping every second | |||||||||||||
| Overload | Audible alarm | |||||||||||||
| Fault | Continuously beeping | |||||||||||||
| PHYSICAL | ||||||||||||||
| Product size, D X W X H (mm) | 330 x 100 x 140 | 380 x 140 x 182 | 450 x 190 x 350 | |||||||||||
| Carton size, D X W X H (mm) | 465 x 215 x 285 | 595x 325 x 473 | ||||||||||||
| M Net Weight (kgs) | 5 | 8 | 15.2/11 | 15.9/12.8 | 37.5/27.7 | 37.5/27.7 | 54.2/29.6 | 29.6 | ||||||
| OPERATING ENVIRONMENT | ||||||||||||||
| Humidity | 0-90 % RH @ 0- 40°C (non-condensing)sing)sing) | |||||||||||||
| Noise Level | Less than 40dB | Less than 60dB | ||||||||||||
| MANAGEMENT | ||||||||||||||
| Optional USB/RS-232 Port | Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC, and MAC, and MAC | |||||||||||||
