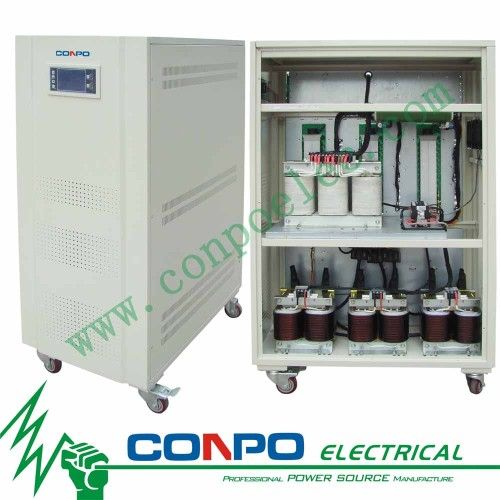

Sjw-Wb-180kVA Industrial Micro-Chip (CPU), Non-Contact (contactless) Compensation Voltage Regulator/Stabilizer

Sjw-Wb-180kVA Industrial Micro-Chip (CPU), Non-Contact (contactless) Compensation Voltage Regulator/Stabilizer

bargain

add to cart
Model NO. SJW-WB-180KVA
Phase Three Phase
Usage Three-Phase, Four-Wire System
Iron Core Shape EI
Brand Conpo
Specification 180KVA/3Phase, Micro-chip(CPU) & Non-contact AVRct AVRt AVR
HS Code 8504401990
Current Type AC
Frequency Characteristics Low Frequency
Frequency 50Hz/60Hz
Application Range Used in Region Where The Net Voltage Is Flucuating
Trademark CONPO
Origin Nanjing, China
1.Summary :
SJW-WB serial Industrial Micro-chip(CPU), Non-contact(contactless) Compensated Voltage Stabilizer which is a new generation quick stabilizing voltage equipment developed by our company through many years hard work. It adopts the newest high speed operating chip control technology, fastest AC sampling technology, efficient calibrate technology, current vanish switch and fast compensate voltage stabilizing technology. They control several available silicon slices by special sequence to control the voltage connections, then to change the main voltage and voltage polar. It composes of insulation transformer, SCR mode, CPU control core, fast voltage stabilizing technology and security equipments, and accomplishes non-contact control, safe, high efficient and energy conservation. It is the perfect match of voltage translator and SCR on/off switch.
2. Application:
This serial product is widely used in Industry, Traffic, Post, Defense, Rail Ways, Science Lab, Large Electronic Machine, Metal Processing Equipments, Production Line, Elevator, Medical Equipments, Air Conditioner, Broadcast Television, Home Use Electronic, Building Lighting Equipment and other Equipments which need stable voltage, and are highly suitable to the equipments which needs high reliable and high stable power supply, or equipments in high amplitude of fluctuation voltage net.
3. Feature s:
1). CPU intelligent SCR control, digital circuits, stable and reliable.
2). Large-screen LCD, user-friendly man-machine interface.
3).Three phases regulation, no contact, no abrasion, no spark and maintenance free.
4). Regulator speed to 0.03S can be accessed by all types of generators.
5). Efficiency is more than 98%, and power consumption less than 1%, save electricity to save money.
6). Anti-interference, cleaning ability, so that the output power completely pure.
7). With overload, short load, short circuit, lack of phases, and automatically bypass protection function
Note: Particularly suitable for high reliability, high stability power electrical equipment, and grid fluctuations, the voltage instantaneous mutation harsh electrical environment!
4.Specification s:
SJW-WB Industrial Micro-chip(CPU), Non-contact(contactless)Compensated AC Voltage Stabilizer(Intelligent SCR controlled system)
Input voltage 380V+/-20% (like +/-15%, 30%, 40% etc. large range can be customized, when ordering, please specify it!)
Input frequency 50Hz/60Hz
Output voltage 380VAC
Output voltage accuracy +/-1~5% adjustable
Filter distortion No additional waveform distortion(static state)
Power factor 0.8
Response time ≤≤le;≤0.03s
Anti-interference Arrester, EMI filter, LC filter(Optional, please specify it when ordering)
Over or under voltage protection Output phase voltage over 10%, cut-off input or transfer to bypass phase incessantly
Overload protection Electronic detection, cut off input in three minutes
Bypass protection Automatically transfer to bypass in case of failure
Phase lack protection Cut-off automatically
Overload ability 5times rated current 1second
LCD display Voltage, current and abnormal etc.
Alarm LCD display and alarm
Ambient temperature 0~45ºCordm;Cordm;C
Altitude <4000M
Communication interface Machine configuration RS-232 interface(Optional, please specify it when ordering)
Noise ≤≤le;≤45dB(1m distance)
Cooling system Cooling fan
Customize option for specification and availability, please contact CONPO!
4. Packing Details:
Model Main. Specifications Qty. per pkg Package size Remarks
SJW-WB-20KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 420*820*840mm Custom-made specifications are acceptable
SJW-WB-30KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 420*820*840mm Custom-made specifications are acceptable
SJW-WB-40KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 420*820*840mm Custom-made specifications are acceptable
SJW-WB-50KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 420*820*840mm Custom-made specifications are acceptable
SJW-WB-60KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 420*820*840mm Custom-made specifications are acceptable
SJW-WB-80KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 470*830*1220mm Custom-made specifications are acceptable
SJW-WB-100KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 470*830*1220mm Custom-made specifications are acceptable
SJW-WB-120KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 560*900*1340mm Custom-made specifications are acceptable
SJW-WB-150KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 560*900*1340mm Custom-made specifications are acceptable
SJW-WB-180KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 560*900*1340mm Custom-made specifications are acceptable
SJW-WB-200KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 560*900*1340mm Custom-made specifications are acceptable
SJW-WB-250KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1240*840*1700mm Custom-made specifications are acceptable
SJW-WB-300KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1240*840*1700mm Custom-made specifications are acceptable
SJW-WB-400KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1240*840*1700mm Custom-made specifications are acceptable
SJW-WB-500KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1240*840*1700mm Custom-made specifications are acceptable
SJW-WB-600KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1240*840*1700mm Custom-made specifications are acceptable
SJW-WB-800KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1540*840*2040mm Custom-made specifications are acceptable
SJW-WB-1000KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1540*840*2040mm Custom-made specifications are acceptable
SJW-WB-1200KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1540*840*2040mm Custom-made specifications are acceptable
SJW-WB-1600KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 1540*840*2040mm Custom-made specifications are acceptable
SJW-WB-2000KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 2240*1240*2040mm Custom-made specifications are acceptable
SJW-WB-2500KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 2240*1240*2040mm Custom-made specifications are acceptable
SJW-WB-3000KVA 3Phase, Vi: 380V+/-20%, Vo: 380V+/-2.5%, Micro-chip & Non-contact AVR, LCD displaysplaysplay 1pc 2240*1240*2040mm Custom-made specifications are acceptable
