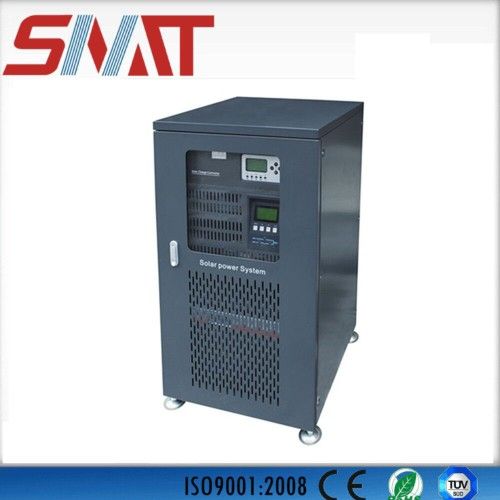

6kw~10kw Solar Inverter with Solar Controller for Power Supply
| Model NO. | SNIC-610 |
| Certification | ISO, CE |
| Rated Voltage | 48V; 96V |
| Output Voltage(V) | 110VAC/120VAC/220VAC/230VAC |
| Control Mode | PWM |
| Sample Order | Accept |
| Transport Package | International Standard Wooden Box |
| Origin | Foshan Guangdong |
| Condition | New |
| Application | Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller |
| OEM/ODM | Accept |
| Waveform | Pure Sine Wave |
| Company | Manufacturer |
| Trademark | SNAT |
| Specification | CE; ISO9001 |
| HS Code | 8504403090 |
Product Introduction
The product is designed for power suppling of net system.it uses digital design idea,intelligent sine wave output and adapts to all kinds of loads ;The design of excellent output short-circuit protection which can resist impact of large current starting loads.The design of one-touch intelligent swihch. It's easily cinduct.It is widely used in household electric equipment.Communication equipment. And single-phase power equipment,industrial equipment,Etc.
Characteristics
--MCU intelligent control excellent performance
--Simple LED display shows working status clearly
--Intelligent charge control can extend the life span of the battery
--Adapt to wide range of temperature and high altitude
--Adopt power frequency transformer, pure sine wave AC out put, strong capacity of different loads
--Exce lent Design For Short-Circuit Protection, Work Reliably
--Full-Oriented Protection, Safe And Reliable
96VDC 220VAC Specification Parameter:
Warranty:
Quality warranty for 1 year; parts will be shipped for free during warranty period.
Delivery time:
Stick to contract.
Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc
Accept special design requirements.
Any requirements, welcome to contact with Vanessa Lee: Click Trade Clerk; Tel: +86 757 81816131; Mobile: +86 15820611674
You will get our reply in 12 hours
The product is designed for power suppling of net system.it uses digital design idea,intelligent sine wave output and adapts to all kinds of loads ;The design of excellent output short-circuit protection which can resist impact of large current starting loads.The design of one-touch intelligent swihch. It's easily cinduct.It is widely used in household electric equipment.Communication equipment. And single-phase power equipment,industrial equipment,Etc.
Characteristics
--MCU intelligent control excellent performance
--Simple LED display shows working status clearly
--Intelligent charge control can extend the life span of the battery
--Adapt to wide range of temperature and high altitude
--Adopt power frequency transformer, pure sine wave AC out put, strong capacity of different loads
--Exce lent Design For Short-Circuit Protection, Work Reliably
--Full-Oriented Protection, Safe And Reliable
96VDC 220VAC Specification Parameter:
| Rated power(W) | 6Kw | 8Kw | 10Kw | ||||
| Rated DC voltage(V) | 96 | ||||||
| Line input | Input voltage(V) | 160~265Vac | |||||
| Charage current(A) | 20A | ||||||
| Inverter output | Output voltage | 220VAC±5%lusmn;5%lusmn;5% | |||||
| Output frequency | 50Hz±1%lusmn;1%lusmn;1% | ||||||
| Wave form | Pure Sine Wave,THD<4%(Full Load)oad) | ||||||
| Solar input | Maximum voltage(V) | 168 | |||||
| Number of Input | S1 | S2 | S1 | S2 | S1 | S2 | |
| Rated power(Wp) | 3000 | 3000 | 4000 | 4000 | 4000 | 4000 | |
| Charge current | 60A | 80A | 80A | ||||
| Battery | Capacity(AH) | / | |||||
| Over charge protective voltage(V) | 116 | ||||||
| Over charge recover voltage(V) | 112 | ||||||
| Constant charge voltage(V) | 108.8 | ||||||
| Over discharge alarm voltage(V) | 88 | ||||||
| DC Loads | Rated voltage(V) | / | |||||
| Rated current(A) | / | ||||||
| Over discharge protective voltage of battery | / | ||||||
| Over discharge recover voltage of battery | / | ||||||
| Others | Voltage drop between solar module and battery(V) | ≤0.3V0.3V0.3V | |||||
| Voltage drop between loads and battery(V) | ≤0.15V.15V.15V | ||||||
| Start speed of cooling fan | HAVE | ||||||
| Environment Humidity | 0-90% Maximum non-condensable | ||||||
| Protective Functions | Protection against anti-charge at night Battery over charge/ over discharge protection; Joint-reversed of solar modules | ||||||
| Control method | PWM | ||||||
| Size :D*W*H(mm) | 650*280*690 | ||||||
| Package:D*W*H(mm) | 780*400*870 | ||||||
| N.W./G.W.(kg) | 68/76 | 75/83 | 82/90 | ||||
Warranty:
Quality warranty for 1 year; parts will be shipped for free during warranty period.
Delivery time:
Stick to contract.
Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc
Accept special design requirements.
Any requirements, welcome to contact with Vanessa Lee: Click Trade Clerk; Tel: +86 757 81816131; Mobile: +86 15820611674
You will get our reply in 12 hours
