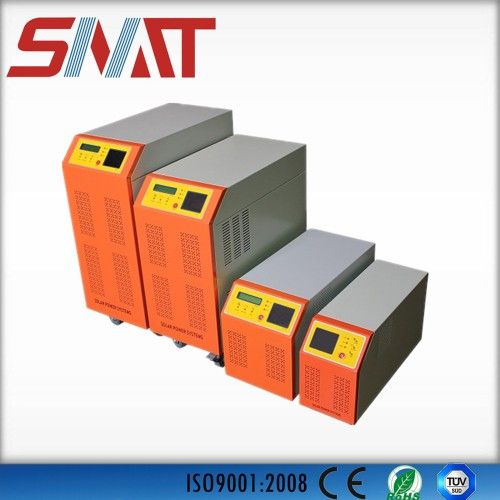

300~5000W Solar Inverter with Built-in Solar Charge Controller

90-1111 USD

Model NO.	SNIC-350
Signal	Continuous
Certification	ISO: 9001, CE
Customized	Customized
Output Wave Form	Pure Sine Wave
Output Voltage	110V/120V/220V/230V/384VAC
Accept	OEM/ODM
Transport Package	Standard Export Package
Origin	Foshan Guangdong
Mathematical Model	Linear
Function	Automatic Control
Condition	New
Design Concept	All Digital
DC Voltage	12V/24V/48V/96V
Color	Orange
Trademark	SNAT
Specification	ISO9001; CE
HS Code	8504403090

NKY series power frequency solar inverter with solare controller built-in (300W~5KW)
Product instruction:
Products NKY series are designed by all digital and output real pure sine wave. The products can adopt to all kinds of load and can be worked long time. The output voltage and frequency is very stable and eliminate the adverse factor like outage, unsteady voltage, ZWC and lightning incoming of using grid directly to make sure electric equipment can be worked continous and reliable. With single chip microcomputer control technology special solar controller built-in, the machine can manage the battery charge and discharge to prolong battery service life.
Range of application
Products NKY series can be widely used for telecom, aerospace, railway, financial management, Office Automation, Industrial automatic control, Medical Treatment and Public Health, Military Research
Performance Feature
1---MCU control technology, excellent performance
2---Industrial frequency transformer design philosophy, pure sine wave output
3---Intelligent RS232 connect port, humanized digital communication
4---Wide range, high precision, automatic voltage regulation
5---Protect funtion: Over load, short circute, over voltage, undervoltage, over temperature
6---Concise LED with LCD display to make running state clearly
7---Intelligent battery management to prolong battery service life.
8---Widely temeperature used range

Technology Parameter
Type: NKY-		301	501	701	102	152	202	302	502
Rated Power(W)		300	500	750	1000	1500	2000	3000	5000
DC voltage(VDC)		12V/24V/48V			24V48V96V	24V/48V/96V		48V/96V
Solar power input	Rated power(W)	300	500	750	1000	1500	2000	3000	5000
	Input way	1						2	2
		1
		1
		1
	Every rated power(W)	300	500	750	1000	1500	2000	3000	5000
	Rated Voltage(VDC)	<50		<50/<100		<100			<200
City electric Input	Input Voltage	160-265VAC
	Input Frequency	45-65 Hz
	Charge current	Max 15A
Invert Output	Output Voltage	220VAC±5%lusmn;5%lusmn;5%
	Output Frequency	50Hz±1%lusmn;1%lusmn;1%
	Switching time	5ms
Inverter output Protection		Over input/undevoltage protection, over load protection: 100 120%30s; ﹥120%, 100ms; ﹥150%, 50ms; Output short circuit<150ms.<150ms.
DB		< 45dB45dB
Running temperature		0-40ºCordm;Cordm;C
Storage temperature		-15
Running/Storage relative humidity		0- 90% No condensation
Running altitude		0-3, 000m
Storage altitude		0-15, 000m
Machine Size D×W×H(mm)W×H(mm);H(mm)W×H(mm)		430×145×224145×224es;224145×224			450×220×260220×260es;260220×260	470×230×490230×490es;490230×490		470×230×560230×560es;560230×560
Package Size D×W×H(mm)W×H(mm);H(mm)W×H(mm)		475×220×305220×305es;305220×305			540×315×360315×360es;360315×360	560×310×620310×620es;620310×620		560×310×700310×700es;700310×700

N. W. /G. W. (KG)		4.6/5.2	7.9/8.5	8.9/9.6	16.5/18.4	26.2/33.5	30.6/37.9	40/48.7	49/57.7

Warranty
Warranty for 2 years, any parts will be shipped for free during warranty period
