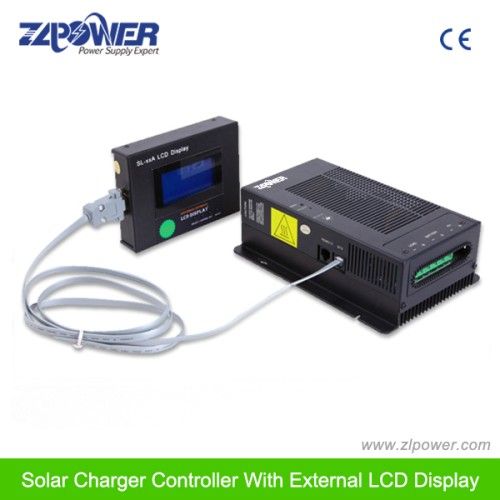

Home Solar Power System MPPT Solar Charge Controller
| Model NO. | SL-40A |
| Certification | API, BV, ISO, CB, CE |
| Rated Voltage | 12V 24V 48V |
| Color | Black |
| Load Current | 15AMP/10AMP |
| Trademark | ZLPOWER |
| Origin | China |
| Condition | New |
| Application | Collector Controller, Water Heater Controller, Solar System Controller, Charger Controller, Lighting Controller, Wind Controller, Solar Working Station, Voltage Controller, Thermal Controller |
| Protection Class | IP 21 |
| Output Voltage | 12V/24V Self Detect |
| Technology | PWM Technology, MPPT Tracker, Battery Type Selecto |
| Specification | CE, ISO |
| HS Code | 8537109090 |
Parallel Intelligent PV solar charger regulator with PWM technology
1. MPPT tracker
2. Three stage charge
3. PWM technolog
4. Solarmate
MPPT solar regulator, solar charger controller with PWM technology
1. MPPT tracker
2. Three stage charge
3. PWM technology
4. Battery type slector
Key feature:
1. High converting efficiency controller higher than 97%for minimizing energy loss
2. Build-in MPPT tracker for optimizing the power transformation
3. Reversed current protection for preventing equipment damage
4. Automatic battery temperature compensation for long-term reliability
5. Capable of selecting different charging mode for various type of batteries
6. Capable of connecting additional DC load for wider applications
7. Three stage charge control system(bulk, absorption, and float mode)with temperature compensation
8. LED indicators display controller charge status in real time
9. Pulse width modulation(PWM)topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced batteryperformance
1. MPPT tracker
2. Three stage charge
3. PWM technolog
4. Solarmate
MPPT solar regulator, solar charger controller with PWM technology
1. MPPT tracker
2. Three stage charge
3. PWM technology
4. Battery type slector
Key feature:
1. High converting efficiency controller higher than 97%for minimizing energy loss
2. Build-in MPPT tracker for optimizing the power transformation
3. Reversed current protection for preventing equipment damage
4. Automatic battery temperature compensation for long-term reliability
5. Capable of selecting different charging mode for various type of batteries
6. Capable of connecting additional DC load for wider applications
7. Three stage charge control system(bulk, absorption, and float mode)with temperature compensation
8. LED indicators display controller charge status in real time
9. Pulse width modulation(PWM)topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced batteryperformance
| MODEL (solarmate) | SL-40A | |
| Rated Voltage | 12/24VDC | |
| Rated charge current | 40A | |
| Load current | 15A | |
| Input voltage rang | 15-55VDC | |
| Max. PV open circuit array voltage | 55VD | |
| Typical idle consumption | < 10mA 10mA | |
| Overload protection (DC load) | 2.0× inom﹥ 5s 1.5× inom﹥ 20s× inom> 20s0s× inom> 20s 1.25× inom temperature controlledntrolledtrolled | |
| Bulk charge | 14.6V(default) | 29.2V(default) |
| Floating charge | 13.4V (default) | 26.8V (default) |
| Equalization charge | 14.0V (default) | 28.0V (default) |
| Over charge disconnection | 14.8V | 29.6V |
| Over charge recovery | 13.6V | 27.2V |
| Over discharge disconnection | 10.8V(default) | 21.6V(default) |
| Over discharge reconnection | 12.3V | 24.6V |
| Temperature compensation | -13.2mv/° Ceg; Ceg; C | -26.4mv/° Ceg; Ceg; C |
| Lead acid battery setting | Adjustable | |
| Nicad battery setting | Adjustable | |
| Load control mode | 1. Low Voltage Reconnect (LVR): Adjustable 2. Low Voltage Disconnect (LVR): Automatic Disconnection 3. Reconnection: Includes warning flash before disconnect and reconnect | |
| Low voltage reconnect | 12.0-14.0Vdc | 24.0-28.0Vdc |
| Low voltage disconnect | 10.5-12.5Vdc | 21.0-25.0Vdc |
| Ambient temperature | 0-40° C (full load)40-0° C(de-rating)de-rating)e-rating) | |
| Altitude | Operating 5000m, Non-operating 16000m | |
| Protection class | IP21 | |
| Battery temperature sensor | BTS optional remote batter temperature sensor for increased charging precision | |
