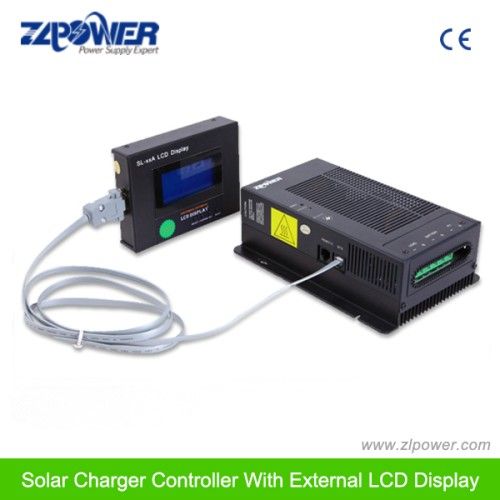

40A 60A MPPT Solar Charge Controller for Solar Wind Power
| Model NO. | SL-40A/SL-60A |
| Certification | ISO, CE |
| Capacity | 40A/60A |
| Panel | LED |
| Technology | Pwn and MPPT |
| Max PV Circuit Array Voltage | 55VDC |
| Certificate | CE |
| Trademark | ZLPOWER |
| Origin | China |
| Condition | New |
| Application | Water Heater Controller, Solar System Controller, Charger Controller, Wind Controller, Solar Working Station, Voltage Controller |
| Input Voltage | 15-55VDC |
| Remote Control | Remote Digital LCD |
| 12/24V Auto Detection | Yes |
| Weight | 3-4kg |
| Protection Class | IP21 |
| Specification | CE ISO |
| HS Code | 8504402000 |
40A 60A MPPT Solar Charge Controller for Solar Wind Power
1: Charge Controller/Regulator/Boost
2: Controller built-in MPPT Function and Pulse Width Modulation
3: Parallel Controller
4: 12V/24V Auto detect
Charge Controller Key Features
1. High converting efficiency higher than 97%for minimizing energy loss
2. Build-in MPPT tracker for optimizing the power transformation
3. Reversed current protection for preventing equipment damage
4. Automatic battery temperature compensation for long-term reliability
5. Capable of selecting different charging mode for various type of batteries
6. Capable of connecting additional DC load for wider applications
7. Three stage charge control system(bulk, absorption, and float mode)with temperaturecompensation
8. LED indicators display charge status in real time
9. Pulse width modulation(PWM)topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced batteryperformance.
Delivery time: In stock.
Warranty: 2years
1: Charge Controller/Regulator/Boost
2: Controller built-in MPPT Function and Pulse Width Modulation
3: Parallel Controller
4: 12V/24V Auto detect
Charge Controller Key Features
1. High converting efficiency higher than 97%for minimizing energy loss
2. Build-in MPPT tracker for optimizing the power transformation
3. Reversed current protection for preventing equipment damage
4. Automatic battery temperature compensation for long-term reliability
5. Capable of selecting different charging mode for various type of batteries
6. Capable of connecting additional DC load for wider applications
7. Three stage charge control system(bulk, absorption, and float mode)with temperaturecompensation
8. LED indicators display charge status in real time
9. Pulse width modulation(PWM)topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced batteryperformance.
Delivery time: In stock.
Warranty: 2years
| charge controller MODEL | SL-40A | |
| Rated Voltage | 12/24VDC | |
| Rated charge current | 40A | |
| Load current | 15A | |
| Input voltage rang | 15-55VDC | |
| Max. PV open circuit array voltage | 55VD | |
| Typical idle consumption | < 10mA 10mA | |
| Overload protection (DC load) | 2.0*inom﹥ 5s 1.5*inom﹥ 20s 1.25*inom temperature controlledntrolled | |
| Bulk charge | 14.6V (default) | 29.2V (default) |
| Floating charge | 13.4V (default) | 26.8V (default) |
| Equalization charge | 14.0V (default) | 28.0V (default) |
| Over charge disconnection | 14.8V | 29.6V |
| Over charge recovery | 13.6V | 27.2V |
| Over discharge disconnection | 10.8V(default) | 21.6V(default) |
| Over discharge reconnection | 12.3V | 24.6V |
| Temperature compensation | -13.2mv/C | -26.4mv/C |
| Lead acid battery setting | Adjustable | |
| Nicad battery setting | Adjustable | |
| Load control mode | 1. Low Voltage Reconnect (LVR): Adjustable 2. Low Voltage Disconnect (LVR): Automatic Disconnection 3. Reconnection: Includes warning flash before disconnect and reconnect | |
| Low voltage reconnect | 12.0-14.0Vdc | 24.0-28.0Vdc |
| Low voltage disconnect | 10.5-12.5Vdc | 21.0-25.0Vdc |
| Ambient temperature | 0-40C (full load) 40-0C (de-rating) | |
| Altitude | Operating 5000m, Non-operating 16000m | |
| Protection class | IP21 | |
| Battery temperature sensor | BTS optional remote batter temperature sensor for increased charging precision | |
