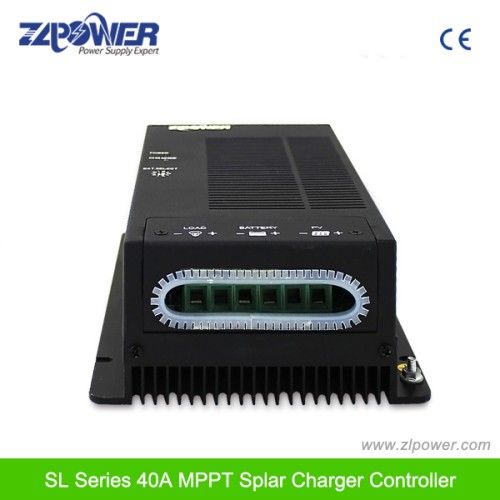

Solar Tracking Charge Controller with MPPT tracking, 24V/40A
| Model NO. | SL-40A/SL-60A |
| Rated Voltage | 12V/24V |
| Rated Charge Current | 40A/60A |
| Input Voltage Range | 15-55VDC |
| Lead Acid Battery Settings | Adjustable |
| Low Voltage Reconnect | Adjustable |
| Cooling | IP21 |
| Specification | CE, ISO9001, RoHS |
| HS Code | 8537109090 |
| Application | Collector Controller, Solar System Controller, Charger Controller, Voltage Controller |
| Voltage | 12V/24V Aotu-Detection |
| Load Current | 15A |
| Max PV Open Circuit Array Voltage | 55VDC |
| Nicad Battery Settings | Adjustable |
| Low Voltage Disconnection | Automatic Disconnection |
| Trademark | ZLPOWER |
| Origin | Shenzhen, China |
Solar Tracking Charge Controller with MPPT tracking, 24V/40A
Solar Boost 12v/24v 40amp MPPT charge controller in stock
Solar controller: MPPT Three stage Solar charge controller, solar regulator.
It is12v/24v 40A, with MPPT tracker, PWM technology, battery type selector and three stage charge mode, also can be parallel to 80A, 120A and so on.
1. High converting efficiency higher than 97%for minimizing energy loss
2. Build-in MPPT tracker for optimizing the power transformation
3. Reversed current protection for preventing equipment damage
4. Automatic battery temperature compensation for long-term reliability
5. Capable of selecting different charging mode for various type of batteries
6. Capable of connecting additional DC load for wider applications
7. Three stage charge control system(bulk, absorption, and float mode)with temperaturecompensation
8. LED indicators display charge status in real time
9. Pulse width modulation(PWM)topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced batteryperformance.
Delivery time: In stock.
Warranty: 2years
Solar Boost 12v/24v 40amp MPPT charge controller in stock
Solar controller: MPPT Three stage Solar charge controller, solar regulator.
It is12v/24v 40A, with MPPT tracker, PWM technology, battery type selector and three stage charge mode, also can be parallel to 80A, 120A and so on.
1. High converting efficiency higher than 97%for minimizing energy loss
2. Build-in MPPT tracker for optimizing the power transformation
3. Reversed current protection for preventing equipment damage
4. Automatic battery temperature compensation for long-term reliability
5. Capable of selecting different charging mode for various type of batteries
6. Capable of connecting additional DC load for wider applications
7. Three stage charge control system(bulk, absorption, and float mode)with temperaturecompensation
8. LED indicators display charge status in real time
9. Pulse width modulation(PWM)topology combined with a multi-stage charge control algorithm leads to superior charging and enhanced batteryperformance.
Delivery time: In stock.
Warranty: 2years
| MPPT solar tracking charge controller MODEL | SL-40A | |
| Rated Voltage | 12/24VDC | |
| Rated charge current | 40A | |
| Load current | 15A | |
| Input voltage rang | 15-55VDC | |
| Max. PV open circuit array voltage | 55VD | |
| Typical idle consumption | < 10mA 10mA | |
| Overload protection (DC load) | 2.0*inom﹥ 5s 1.5*inom﹥ 20s 1.25*inom temperature controlledntrolled | |
| Bulk charge | 14.6V (default) | 29.2V (default) |
| Floating charge | 13.4V (default) | 26.8V (default) |
| Equalization charge | 14.0V (default) | 28.0V (default) |
| Over charge disconnection | 14.8V | 29.6V |
| Over charge recovery | 13.6V | 27.2V |
| Over discharge disconnection | 10.8V(default) | 21.6V(default) |
| Over discharge reconnection | 12.3V | 24.6V |
| Temperature compensation | -13.2mv/C | -26.4mv/C |
| Lead acid battery setting | Adjustable | |
| Nicad battery setting | Adjustable | |
| Load control mode | 1. Low Voltage Reconnect (LVR): Adjustable 2. Low Voltage Disconnect (LVR): Automatic Disconnection 3. Reconnection: Includes warning flash before disconnect and reconnect | |
| Low voltage reconnect | 12.0-14.0Vdc | 24.0-28.0Vdc |
| Low voltage disconnect | 10.5-12.5Vdc | 21.0-25.0Vdc |
| Ambient temperature | 0-40C (full load) 40-0C (de-rating) | |
| Altitude | Operating 5000m, Non-operating 16000m | |
| Protection class | IP21 | |
| Battery temperature sensor | BTS optional remote batter temperature sensor for increased charging precision | |
