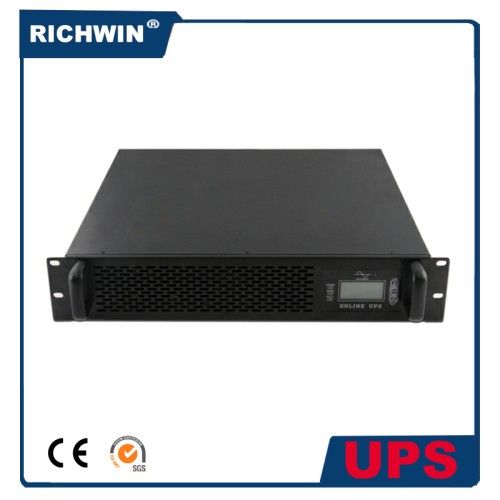

1000va Pure Sine Wave Online Rack Mount UPS with Battery

1000va Pure Sine Wave Online Rack Mount UPS with Battery

bargain

add to cart
Model NO. RC RACK Series UPS (2KVA)
Type On-line
Application Industry/Office/Server
Standby Time Long-acting Machine
Output Capacity Medium Type
Brand Richwin/OEM/ODM/Neutral
Frenquency Range 50Hz:46~54Hz
Current Crest Ratio 3:1
Automatic Bypass Yes
Trademark Richwin/OEM/ODM/Neutral
Specification 19inch
HS Code 8504402000
Phase Single Phase
Protection Overvoltage
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Transfer Time 0
Battery VRLA Battery Pack 96V
Display LCD
Power Factor >=0.97
Transport Package Carton/Wooden
Origin Shenzhen, China
2000VA Pure Sine Wave Online Rack Mount UPS with Battery
Characteristics:
Online double conversion
Compact and light weight
High input power factor
Wide input voltage range
High reliability and performance
Full protection function
Automatic bypass
Intelligent RS232 communication port
UPS management software (optional)
External SNMP or USB or Dry contacts (optional)
Specification
Model RC1KR RC1KRS RC2KR RC2KRS RC3KR RC3KRS RC6KR RC6KRS
CAPACITY 1000VA/700W 2000VA/1400W 3000VA/2100W 6000VA/4200W
INPUT
Phase Single Phase with Ground
Frequency Range 50Hz:46~54Hz
Power Factor >=0.97 >=0.98
Voltage Range Base on load percentage (100%-80% / 80%-70% / 70%-60% / 60%-0%)
Line Low Transfer 160VAC/140VAC/120VAC/110VAC± 5VACmn; 5VACmn; 5VAC 176 ±3% VACn;3% VACn;3% VAC
Line Low Comeback 175VAC ± 5VACmn; 5VACmn; 5VAC 185 ± 3% VAC; 3% VAC; 3% VAC
Line High Transfer 300VAC± 5VACmn; 5VACmn; 5VAC 276 ± 3% VAC; 3% VAC; 3% VAC
Line High Comeback 285VAC± 5VACmn; 5VACmn; 5VAC 266 ± 3% VAC; 3% VAC; 3% VAC
OUTPUT
Phase Single
Voltage 220VAC/230VAC/240VAC
Voltage Regulation ± 2%usmn; 2%usmn; 2% ± 1%usmn; 1%usmn; 1%
Frequency( Synchronized Range) 46~54Hz
Frequency( Battery Mode) 50 ± 0.2 Hz; 0.2 Hz; 0.2 Hz 50Hz ± 0.05Hz; 0.05Hz; 0.05Hz
Current Crest Ratio 3:1
Harmonic Distortion <= 4% THD ( Linear Load) / <= 7% THD ( Non-Linear Load)r Load) <= 2% THD (Linear Load)/<= 6%THD(Non-Linear Load)r Load)
Output Waveform Pure Sine Wave
EFFICIENCY
To AC Mode 85% 85% 85% > 88%
To Battery Mode 83% 83% 83% > 88%
BATTERY
Battery Type 12V/7Ah Depending on the capacity of external batteries 12V/7Ah Depending on the capacity of external batteries 12V/7Ah Depending on the capacity of external batteries 12V/7AH Depending on the capacity of external batteries
Numbers of Batteries 3 8 8 20
Backup Time(Full Load) ﹥5 minutesutes ﹥9 minutesutes ﹥5 minutesutes 8 minutes
Recharge Time 5 hours to 90% 5 hours to 90% 5 hours to 90% 7 hours to 90%
Charging Current (Max.) 1.0A 7A 1.0A 8A+/-1A 1.0A 8A+/-1A 2.0A 4.2A
Charging Voltage 41.1Vdc ± 0.6Vmn; 0.6Vmn; 0.6V 110Vdc ± 0.4Vmn; 0.4Vmn; 0.4V 274Vdc ± 1%Vsmn; 1%Vsmn; 1%V
External Battery type N/A 12V/7.2AH *6 N/A 12V/7.2AH *8 N/A 12V/7.2AH *8 N/A 12V/7.2AH *20
TRANSFER TIME
AC to DC Zero
Inverter to Bypass 2.5ms (Typical ) Zero
INDICATOR
Status Load Level / Battery Level / Battery Mode / AC Mode / Bypass Mode / Fault
AUDIBLE ALARM
Battery Mode Sounding every 4 seconds
Low Battery Sounding every second
Overload Sounding twice every second
Fault Continuously Sounding
DIMENSION
UPS Case D x W H(mm) 450x482.6x88 450x482.6x88 600x482.6x130
Battery Case D x W x H N/A 450*482.6*88 450*482.6*88 600*482.6*130
WEIGHT
UPS Case (kg) 14(w / battery) 7 34.5(w / Battery) 15 35.5(W / Battery) 16 84(W / Battery) 35
Battery Rack (kg) N/A 22.5 27.8 27.8 64.2
ENVIRONMENT
Operating Environment 0~40 Degrees Centigrade, 20~90% relative humidity (non-condensing)
Noise Level <45dB @ 1 Metereter 50dB @ 1 Meter <55dB @ 1 metereter
INTERFACE
Smart RS-232 Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC
SNMP (option) Power management from SNMP manager and web browser
