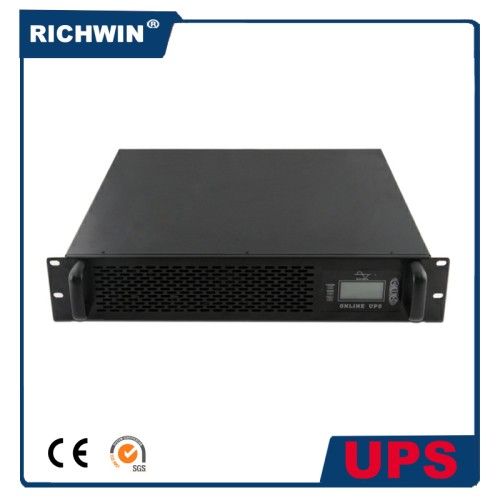

3000va Pure Sine Wave Online Rack Mount UPS with Battery

bargain

Model NO.	RC RACK Series UPS (3KVA)
Type	On-line
Application	Industry/Office/Server
Standby Time	Long-acting Machine
Output Capacity	Medium Type
Brand	Richwin/OEM/ODM/Neutral
Frenquency Range	50Hz:46~54Hz
Current Crest Ratio	3:1
Automatic Bypass	Yes
Trademark	Richwin/OEM/ODM/Neutral
Specification	19inch
HS Code	8504402000
Phase	Single Phase
Protection	Overvoltage
Classification	Lighting/Power
Standby UPS	Sine Wave Output UPS
Equipment Mode	Centralized Model
Transfer Time	0
Battery	VRLA Battery Pack 96V
Display	LCD
Power Factor	>=0.97
Transport Package	Carton/Wooden
Origin	Shenzhen, China

3000VA Pure Sine Wave Online Rack Mount UPS with Battery
Characteristics:
Online double conversion
Compact and light weight
High input power factor
Wide input voltage range
High reliability and performance
Full protection function
Automatic bypass
Intelligent RS232 communication port
UPS management software (optional)
External SNMP or USB or Dry contacts (optional)
Specification

Model	RC1KR	RC1KRS	RC2KR	RC2KRS	RC3KR	RC3KRS	RC6KR	RC6KRS
CAPACITY	1000VA/700W		2000VA/1400W		3000VA/2100W		6000VA/4200W
INPUT
Phase	Single Phase with Ground
Frequency Range	50Hz:46~54Hz
Power Factor	>=0.97						>=0.98
Voltage Range	Base on load percentage (100%-80% / 80%-70% / 70%-60% / 60%-0%)
Line Low Transfer	160VAC/140VAC/120VAC/110VAC± 5VACmn; 5VACmn; 5VAC						176 ±3% VACn;3% VACn;3% VAC
Line Low Comeback	175VAC ± 5VACmn; 5VACmn; 5VAC						185 ± 3% VAC; 3% VAC; 3% VAC
Line High Transfer	300VAC± 5VACmn; 5VACmn; 5VAC						276 ± 3% VAC; 3% VAC; 3% VAC
Line High Comeback	285VAC± 5VACmn; 5VACmn; 5VAC						266 ± 3% VAC; 3% VAC; 3% VAC
OUTPUT
Phase	Single
Voltage	220VAC/230VAC/240VAC
Voltage Regulation	± 2%usmn; 2%usmn; 2%						± 1%usmn; 1%usmn; 1%
Frequency( Synchronized Range)	46~54Hz
Frequency( Battery Mode)	50 ± 0.2 Hz; 0.2 Hz; 0.2 Hz						50Hz ± 0.05Hz; 0.05Hz; 0.05Hz
Current Crest Ratio	3:1
Harmonic Distortion	<= 4% THD ( Linear Load) / <= 7% THD ( Non-Linear Load)r Load)						<= 2% THD (Linear Load)/<= 6%THD(Non-Linear Load)r Load)

Output Waveform	Pure Sine Wave
EFFICIENCY
To AC Mode	85%		85%		85%		> 88%
To Battery Mode	83%		83%		83%		> 88%
BATTERY
Battery Type	12V/7Ah	Depending on the capacity of external batteries	12V/7Ah	Depending on the capacity of external batteries	12V/7Ah	Depending on the capacity of external batteries	12V/7AH	Depending on the capacity of external batteries
Numbers of Batteries	3		8		8		20
Backup Time(Full Load)	﹥5 minutesutes		﹥9 minutesutes		﹥5 minutesutes		8 minutes

Recharge Time	5 hours to 90%		5 hours to 90%		5 hours to 90%		7 hours to 90%
Charging Current (Max.)	1.0A	7A	1.0A	8A+/-1A	1.0A	8A+/-1A	2.0A	4.2A
Charging Voltage	41.1Vdc ± 0.6Vmn; 0.6Vmn; 0.6V		110Vdc ± 0.4Vmn; 0.4Vmn; 0.4V				274Vdc ± 1%Vsmn; 1%Vsmn; 1%V
External Battery type	N/A	12V/7.2AH *6	N/A	12V/7.2AH *8	N/A	12V/7.2AH *8	N/A	12V/7.2AH *20
TRANSFER TIME
AC to DC	Zero
Inverter to Bypass	2.5ms (Typical )						Zero
INDICATOR
Status	Load Level / Battery Level / Battery Mode / AC Mode / Bypass Mode / Fault
AUDIBLE ALARM
Battery Mode	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Sounding twice every second
Fault	Continuously Sounding
DIMENSION
UPS Case D x W H(mm)	450x482.6x88		450x482.6x88				600x482.6x130
Battery Case D x W x H	N/A	450482.688	450482.688				600482.6130
WEIGHT
UPS Case (kg)	14(w / battery)	7	34.5(w / Battery)	15	35.5(W / Battery)	16	84(W / Battery)	35
Battery Rack (kg)	N/A	22.5	27.8		27.8		64.2
ENVIRONMENT
Operating Environment	0~40 Degrees Centigrade, 20~90% relative humidity (non-condensing)
Noise Level	<45dB @ 1 Metereter		50dB @ 1 Meter				<55dB @ 1 metereter
INTERFACE
Smart RS-232	Windows 98/NT/2000/XP/2003, Linux, Sun Solaris, IBM Aix, Compaq True64, SGI IRIX, FreeBSD, HP-UX, and MAC
SNMP (option)	Power management from SNMP manager and web browser

About Santak Power Limited:
As early as 2005, Shenzhen Santak Power Limited has started UPS and inverter's manufacture. Expertise, honesty and high quality service has won us the good reputation and enable us to build stable cooperation relationship with major Chinese domestic enterprises, such as Sinopec and State Grid, meanwhile more and more clients bring our product overseas. Now Santak Power starts it's own global business with brand RICHWIN, also provides excellent OEM, ODM and SKD services.
With decade experience, Santak Power R&D team knows how to produce really good products. We invest heavily on R&D, just to provideo provideo provide
you the world's leading affordable technology anywhere, anytime.
We hope you can join us,to become a world class supplier.
With Santak Power, you can always expect more.
