Best Quality Battery Cabinet for UPS Battery Pack
| Model NO. | Battery Cabinet |
| Type | Resistance Box, Meter Box |
| Warranty | 2 Year |
| Customized | Customized |
| Demension | 224* 255*80mm |
| Color | White or Black |
| Contain Batteries | 2 to 88 PCS Each Cabinet |
| Certificate | CE&ISOmp;ISOp;ISO |
| Transport Package | Export Packing |
| Origin | China |
| Material | Steel Selectable |
| Structure | Vertical |
| Application | UPS Matched Battery Cabinet, Rack Mount Battery |
| Steel Selectable | Yes |
| Design | Modular Design |
| OEM or Special Design | Available |
| Production Time | 7-15 Working Days |
| Trademark | ZLPOWER |
| Specification | CE&ISOmp;ISOp;ISO |
| HS Code | 8504902000 |
Best Quality Battery Cabinet For UPS Battery Pack

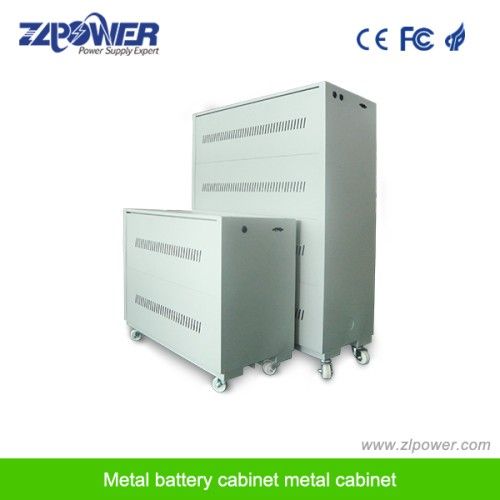

ZLPOWER Battery Cabinet
1: Used to contain all types of battery
2: Battery Cabinet is made by Metal
3: Battery Cabinet With different size
ZLPOWER Battery Cabinet
Battery Cabinet Model A1 - A20
ZLPOWER battery cabinet is the perfect solution for creating additional space by replacing sealed lead acid battery, or when there is a need for a maintenance free, long lasting, self-sufficient battery back-up solution. The cabinet comes pre-wired from the factory, ready to install. Its modular design permits more than one battery cabinet to be mounted side by side on the same wall. Each module holds up to 20PCS 100Ah lead acid battery, Please note, the cabinet is without wheels without notice, but A1-A8 can be designed with wheels.
Specifications:
ZLPOWER Battery Cabinet
1: Used to contain all types of battery
2: Battery Cabinet is made by Metal
3: Battery Cabinet With different size
ZLPOWER Battery Cabinet
Battery Cabinet Model A1 - A20
ZLPOWER battery cabinet is the perfect solution for creating additional space by replacing sealed lead acid battery, or when there is a need for a maintenance free, long lasting, self-sufficient battery back-up solution. The cabinet comes pre-wired from the factory, ready to install. Its modular design permits more than one battery cabinet to be mounted side by side on the same wall. Each module holds up to 20PCS 100Ah lead acid battery, Please note, the cabinet is without wheels without notice, but A1-A8 can be designed with wheels.
Specifications:
| Model | Dimensions(W*D*H)(mm) | Battery | Weight(kg) | |||||
| C1B | 280*190*220 | Standard24AH/17AH | 2/3PCS | 2.5 | ||||
| C1 | 435*210*270 | Standard24AH/38AH | 2PCS | 4 | ||||
| Standard65AH/100AH | 1PCS | |||||||
| C1A | 540*210*230 | Standard24AH/38AH | 3PCS | 4.5 | ||||
| C2 | 470*390*310 | Standard24AH/38AH | 6/4PCS | 7.5 | ||||
| Standard65AH/100AH | 2PCS | |||||||
| C3 | 585*450*310 | Standard24AH/38AH | 8/4PCS | 9.5 | ||||
| Standard65AH/100AH | 3PCS | |||||||
| C4 | 470*390*600 | Standard24AH/38AH | 8PCS | 14 | ||||
| Standard65AH/100AH | 4PCS | |||||||
| C6 | 585*450*610 | Standard24AH/38AH | 12PCS | 18 | ||||
| Standard65AH/100AH | 6PCS | |||||||
| C8 | 780*450*610 | Standard24AH/38AH | 20/16PCS | 23 | ||||
| Standard65AH/100AH | 8PCS | |||||||
| C10 | 950*450*610 | Standard24AH/38AH | 20PCS | 29 | ||||
| Standard65AH/100AH | 10PCS | |||||||
| C12 | 780*470*910 | Standard24AH/38AH | 24PCS | 32 | ||||
| Standard65AH/100AH | 12PCS | |||||||
| C16 | 780*470*1190 | Standard24AH/38AH | 32PCS | 45 | ||||
| Standard65AH/100AH | 16PCS | |||||||
| C20 | 950*470*1190 | Standard24AH/38AH | 40PCS | 50 | ||||
| Standard65AH/100AH | 20PCS | |||||||
| C24 | 1150*470*1190 | Standard65AH/100AH | 24PCS | 90 | ||||
| C32 | 800*880*1190 | Standard65AH/100AH | 32PCS | 95 | ||||
