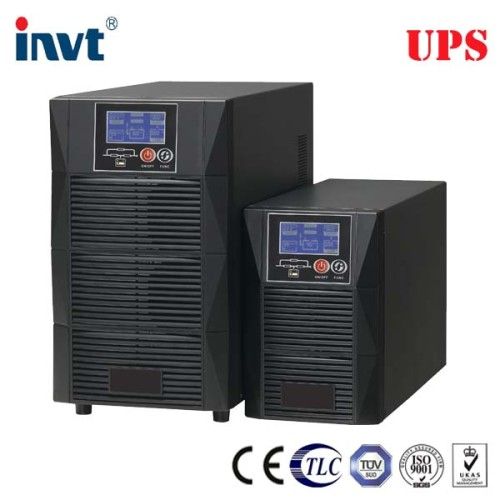

3kVA Low Frequency Online UPS
bargain
add to cart| Model NO. | HT11 |
| Type | On-line |
| Application | Communication |
| Standby Time | Standard Machine |
| Output Capacity | Medium Type |
| Brand | Invt |
| Output Voltage | 220V or 110VAC |
| Power | 1kVA 2kVA 3kVA |
| Output Wave | Pure Sine Wave |
| Specification | 1-20KVA |
| HS Code | 85044020 |
| Phase | Single Phase |
| Protection | Overvoltage |
| Classification | Lighting/Power |
| Standby UPS | Sine Wave Output UPS |
| Equipment Mode | Decentralized |
| Output Power Factor | 0.9 |
| Certification | CE ISO9001 |
| DC | 36V/72V/96V |
| Trademark | INVT |
| Origin | China |
3kVA Low Frequency Online UPS
HT series online UPS 6-20kVA characteristics:
1. True online double conversion technology
2. IGBT PFC technology.
3. Wide input range.
4. Zero transfer time.
5. Compete protection function.
6. Paralleling up t0 4 units.
7. Smart communication port.
8. LCD/LED display.
9. Cold start function.
HT series online UPS 6-20kVA characteristics:
1. True online double conversion technology
2. IGBT PFC technology.
3. Wide input range.
4. Zero transfer time.
5. Compete protection function.
6. Paralleling up t0 4 units.
7. Smart communication port.
8. LCD/LED display.
9. Cold start function.
| Model | HT116K HT116KL | HT1110K HT1110KL | HT1115KL | HT1120KL |
| Rated Power | ||||
| Power | 6kVA/4.2kW | 10kVA/7kW | 15kVA/10.5kW | 20kVA/14kW |
| Input | ||||
| Nominal voltage | 220VAC | 380VAC | ||
| Voltage range | 176-276VAC | 304-478VAC | ||
| Frequency range | 46-54Hz(default), user adjustable within 40-60Hz | |||
| Power factor | 0.98 | |||
| Output | ||||
| Voltage | 220VAC ± 1%usmn; 1%usmn; 1% | |||
| Frequency | 50/60Hz± 0.2Hz(line mode), 50/60Hz± 0.2Hz(battery mode)z(battery mode)z(battery mode) | |||
| Waveform | Pure sine wave | |||
| Distortion | Less than 2% under linear load | |||
| Overload capability | 105%-130% for 10 minutes, 130% for 1 minutes | |||
| Crest factor | 3: 1 | |||
| Battery | ||||
| Type | Sealed, maintenance free, lead-acid | |||
| Backup time | 5 minutes | N/A | ||
| Recharge time | 8 hours to 90% capacity after full discharging | |||
| Bypass | ||||
| Automatic transfer | Overload time up and UPS failure | |||
| Transfer time | 0mS | |||
| LCD/LED information and audible alarm | ||||
| Status | Load percentage, battery state, utility state, inverter and bypass state, overload, system fault. | |||
| Audible alarm | Bypass mode, battery mode, battery low, overload, fault | |||
| Noise | ||||
| 1 meter distance | 55dB | 60dB | ||
| Communications | ||||
| DB9 port | RS232 | |||
| Intelligent slot | WebPower, AS400 card and WinPower CMC | |||
| Environment | ||||
| Operating temperature | 0-40 0 C | |||
| Operating humidity | 20-90 non-condensing | |||
| Weight | ||||
| Net(kg) | 90/35 | 93/38 | 55 | 55 |
| Dimension | ||||
| W*D*H(mm) | 260*570*717 | |||
