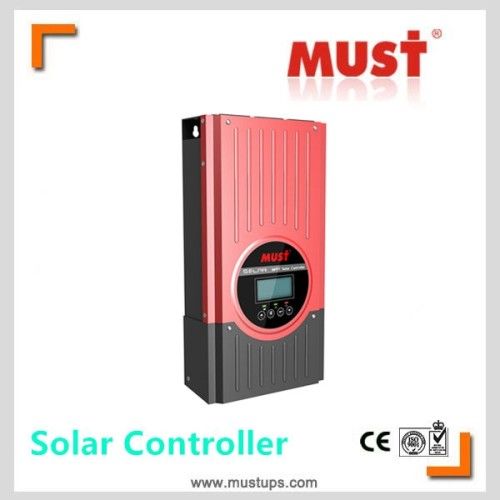

High Efficiency 60A PV Charge Controller
| Model NO. | PC1600 |
| Certification | ISO, CE |
| Rated Voltage | 24V |
| PV Output | 70-145V |
| High Tracking Efficiency | 99% |
| Rafiating Mode | Fan Cooling |
| MPPT Solar Charge Controller | 45A/60A |
| 24V/48V | Auto Work |
| Specification | 257*167.6*82.9mm |
| HS Code | 8537109021 |
| Condition | New |
| Application | Collector Controller, Solar System Controller, Charger Controller, Solar Working Station, Voltage Controller |
| Charger Current | 45A, 60A |
| DC Voltage | 12V/24/48V |
| Protection | Short Circuit, PV Reverse Polarity |
| Certificate | CE, ISO9001 |
| DSP | Feature |
| Trademark | MUST |
| Origin | Guangdong, China |
High Efficiency 60A PV Charge Controller
Support a wide variety of system designs
Must PC1600 Charge Controllers truly represent innovation in Maximum Power Point Tracking (MPPT) technology, which enables them to increase the yield from a solar photovoltaic (PV) array as much as 30% over conventional designs. PC1600 Charge Controllers support a wide variety of system designs, battery chemistries, and integrate seamlessly in terms of system data management and programming.
PV system designers met the challenge of delivering both grid-tied savings during normal times and off-grid independence during emergencies with 1-phase arrays of Must IPV3000W/IPV5000W inverter/chargers powering your house. This system saved money on utility bills, supply essential power during emergencies (all with one versatile system).
Features:
· 45A/60A MPPT solar charge controllerntrollerntroller
· 24V/48V auto workuto workuto work
· PV Output: 70V-145V70V-145V70V-145V
· Several seconds tracking speedng speedng speed
· High Tracking efficiency of 99%y of 99%y of 99%
· Multiphase synchronous rectification technologychnologychnology
· Peak conversion efficiency of 98%y of 98%y of 98%
· DSP processors architecture ensures high speed and performanceformanceformance
· Multifunction LCD displays system data and statusd statusd status
· Four stages charging optimizes battery performanceformanceformance
Electronic Protections:
· PV array short circuit circuit circuit
· PV over current current current
· PV over voltage voltage voltage
· PV reverse polaritypolaritypolarity
· Battery reverse polaritypolaritypolarity
· Over chargingchargingcharging
· Overheating protectionotectionotection
A charge controller's main job is to optimize a PV array's output which can fluctuate based on shading and temperature variables found on the average roof.
Must™ PC1600 Charge Controllers truly represent innovation in Maximum Power Point Tracking (MPPT) technology, which enables them to increase the yield from a solar photovoltaic (PV) array as much as 30% over conventional designs. PC1600 Charge Controllers support a wide variety of system designs, battery chemistries, and integrate seamlessly in terms of system data management and programming.ramming.amming.
The innovative PC1600 MPPT software algorithm is both continuous and active, increasing photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both PC1600 Charge Controllers can operate at their full maximum current rating, 40 AMPS or 60 AMPS respectively, in ambient temperatures as high as 113° F (45° C).5° C).C).5° C).
PC1600 Charge Controllers incorporate the features developed by Must™ , including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built in, backlit 70-character display shows the current status and set the key parameter at the touch of a button. button.button.
------------------------------------------------------------------------------------------
HOW MUST CAN HELP YOU
We help you save energy and cut down on your electricity bill
We help you generate solar energy - the most clean, green and cost-effective solution
We offer innovative and cost-effective power backup solutions
We protect your home and your business with uninterrupted
We assure you peace of mind with high quality and innovative products
We provide reliable support and services round the clock
MUST POWER LIMITED
David Zhang
Tel;+86 755 23729170,+86 13927460042
Support a wide variety of system designs
Must PC1600 Charge Controllers truly represent innovation in Maximum Power Point Tracking (MPPT) technology, which enables them to increase the yield from a solar photovoltaic (PV) array as much as 30% over conventional designs. PC1600 Charge Controllers support a wide variety of system designs, battery chemistries, and integrate seamlessly in terms of system data management and programming.
PV system designers met the challenge of delivering both grid-tied savings during normal times and off-grid independence during emergencies with 1-phase arrays of Must IPV3000W/IPV5000W inverter/chargers powering your house. This system saved money on utility bills, supply essential power during emergencies (all with one versatile system).
Features:
· 45A/60A MPPT solar charge controllerntrollerntroller
· 24V/48V auto workuto workuto work
· PV Output: 70V-145V70V-145V70V-145V
· Several seconds tracking speedng speedng speed
· High Tracking efficiency of 99%y of 99%y of 99%
· Multiphase synchronous rectification technologychnologychnology
· Peak conversion efficiency of 98%y of 98%y of 98%
· DSP processors architecture ensures high speed and performanceformanceformance
· Multifunction LCD displays system data and statusd statusd status
· Four stages charging optimizes battery performanceformanceformance
Electronic Protections:
· PV array short circuit circuit circuit
· PV over current current current
· PV over voltage voltage voltage
· PV reverse polaritypolaritypolarity
· Battery reverse polaritypolaritypolarity
· Over chargingchargingcharging
· Overheating protectionotectionotection
A charge controller's main job is to optimize a PV array's output which can fluctuate based on shading and temperature variables found on the average roof.
Must™ PC1600 Charge Controllers truly represent innovation in Maximum Power Point Tracking (MPPT) technology, which enables them to increase the yield from a solar photovoltaic (PV) array as much as 30% over conventional designs. PC1600 Charge Controllers support a wide variety of system designs, battery chemistries, and integrate seamlessly in terms of system data management and programming.ramming.amming.
The innovative PC1600 MPPT software algorithm is both continuous and active, increasing photovoltaic array power yield up to 30% compared to non-MPPT controllers. Thanks to active cooling and intelligent thermal management cooling, both PC1600 Charge Controllers can operate at their full maximum current rating, 40 AMPS or 60 AMPS respectively, in ambient temperatures as high as 113° F (45° C).5° C).C).5° C).
PC1600 Charge Controllers incorporate the features developed by Must™ , including support for a wide range of nominal battery voltages and the ability to step-down a higher voltage solar array to recharge a lower voltage battery bank. A built in, backlit 70-character display shows the current status and set the key parameter at the touch of a button. button.button.
------------------------------------------------------------------------------------------
| Model | PC16-4515F | PC16-6015F |
| Default Battery system Voltage | 24v/48vdc(adjustable) | |
| Charge Input | ||
| PV Open Circuit Voltage range | Operational max=145VDC temperature correct VOC | |
| Max PV input power(24v) | 1200W | 1600W |
| Max PV input power(48v) | 2400W | 3200W |
| Battery voltage | ||
| Nominal Voltage | 24V / 48V | |
| Absorption Voltage | 27.0V / 54.0V | |
| Refloat Voltage | 27.4V / 54.8V | |
| Float Voltage | 28.6V / 57.2V | |
| Low voltage protection point | 21.0V / 42.0V | |
| DC Output | ||
| Output Voltage | 22.0-28.6V / 44V-57.2V | |
| Rated Current | 45A continuous @40 ambient | 60A continuous @40 ambient |
| Warning for low voltage | 23.0V / 46.0V | |
| Cut off for low voltage | 21.6V / 43.0V | |
| Low voltage recovery | 26.0V / 46.0V | |
| Display | ||
| LED indication | Systematic operation, LV indication, LV protection, over charge protection, loads protection, short circuit protection | |
| LCD display(optional) | Charge voltage, charge current, voltage of storage battery, capacity of storage battery, output current | |
| Alarm Protections | 1.PV array short circuit protection, PV reverse polarity protection 2.Battery reverse polarity protection , Over charging protection 3.Output short circuit protection 4.Low voltage protection for storage battery | |
| General specification | ||
| Protection Level | In compliance with regulations of DIN EN60529 and standards of IP22 | |
| Charge mode | PWM ,constant current_constant voltage, function of automatic protection for storage battery | |
| Radiating mode | Fan cooling | |
| Working mode | General controller | |
| Efficiency | ≥98%;98%;98% | |
| Self -consumption | < 10mA10mA | < 15mA15mA |
| Environment | ||
| Environmental temperature | -10 --55 | |
| Ambient humidity | 0--90%,No condensation | |
| Altitude | ≤4500m500m500m | |
| Dimension | ||
| Unit size D*W*H(mm)/G.W(kg) | 257.1*167.6*82.9mm/3kg | |
| Package size D*W*H(mm)/G.W(kg) | 390*365*365mm(6pcs/carton)/19kg | |
