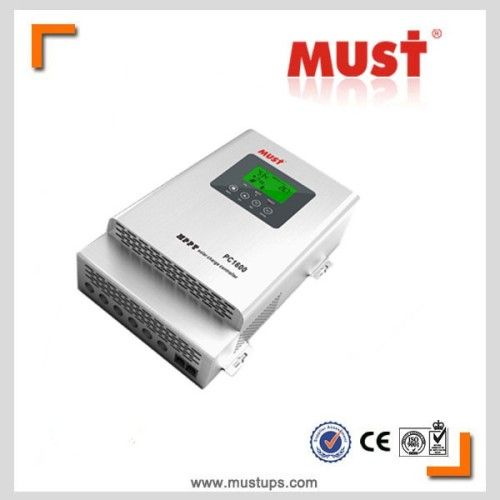

Factory Wholesaler with Low Price Good Quality MPPT Solar Controller
| Model NO. | PC1600 |
| Application | Collector Controller, Solar System Controller, Charger Controller, Lighting Controller |
| PV Output | 70-145V |
| High Tracking Efficiency | 99% |
| Rafiating Mode | Fan Cooling |
| Charger Type | Solar Charger |
| Socket Type | OEM Plug Is Available |
| Transport Package | 390*365*364mm(6PCS/Carton)/19kgs |
| Origin | Guangdong, China |
| Certification | API, ISO, CB, CE |
| Charger Current | 40A, 60A |
| DC Voltage | 24/48V |
| Protection | Short Circuit, PV Reverse Polarity |
| Certificate | CE, ISO9001 |
| Compatible Battery Type | AAA/AA |
| Trademark | MUST |
| Specification | 257*167.6*82.9mm |
Factory wholesaler with low price good quality mppt solar controller
Main Features:
45/60A MPPT charge controller
PV output: 70A-145V
24/48V auto work
High Tracking Effificieny of 99%, Peak Conversion Efficiency of 97.8%
DSP Processors architecture ensures high speed and performance
Four stages charing optimizes battery performance
Protection:
PV array short circuit, PV reverse polarity
Battery reverse polarity, Over charging protection
Output Short Circuit Protection
Main Features:
45/60A MPPT charge controller
PV output: 70A-145V
24/48V auto work
High Tracking Effificieny of 99%, Peak Conversion Efficiency of 97.8%
DSP Processors architecture ensures high speed and performance
Four stages charing optimizes battery performance
Protection:
PV array short circuit, PV reverse polarity
Battery reverse polarity, Over charging protection
Output Short Circuit Protection
| Model | PC16-4015F | PC16-5015F | PC16-6015F |
| Charge Input | |||
| Maximum Open Circuit Voltage of Solar Module | 70V ~150V | ||
| Storage Battery | |||
| Nominal Voltage | 24V / 48V | ||
| Float Voltage | 27.4V / 54.8V | ||
| Over Charge Voltage | 28.6V / 57.2V | ||
| Lack of Voltage | 21.0V / 42.0V | ||
| DC Output | |||
| Output Voltage | 22.0-28.6V / 44V-57.2V | ||
| Maximum Output Current | 40A | 50A | 60A |
| Prompt for cutting voltage | 23.0V / 46.0V | ||
| Cutting for lack of voltage | 21.6V / 43.0V | ||
| LV resumption | 26.0V / 46.0V | ||
| Display | |||
| LED indication | Systematic operation, LV indication, LV protection, over charge protection, loads protection, short circuit protection | ||
| LCD display | Charge voltage, charge current, voltage of storage battery, capacity of storage battery, output current | ||
| Alarm Protections | |||
| Output short circuit protection | Yes | ||
| LV protection for storage battery | Yes | ||
| Other Items | |||
| Defend rank | In compliance with regulations of DIN EN60529 and standards of IP22 or IP65 | ||
| Charge mode | PWM ,constant current_constant voltage, function of automatic protection for storage battery | ||
| Radiating mode | Fan cooling | ||
| Working mode | General controller | ||
| Efficiency | ≥97%;97%;97% | ||
| Self electricity consumption | < 10 mA0 mA | < 15mA15mA | |
| Environment | |||
| Environmental temperature | -10ºC--45ºC--45ºCrdm;C--45ºC | ||
| Ambient humidity | 0--90%,No dew | ||
| Altitude | ≤4500m500m500m | ||
