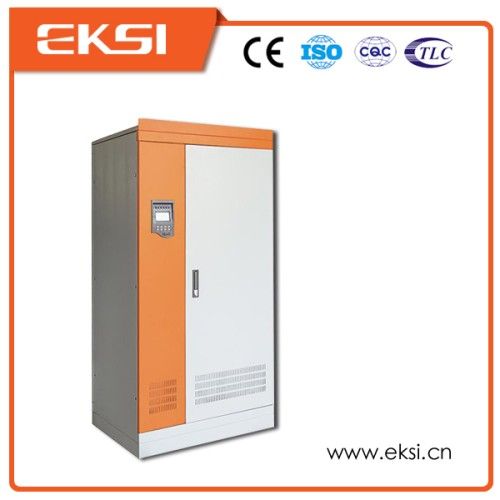

60kw MPPT PV Inverter with Controller Integrated System
| Model NO. | GSA220-60K3 60KW |
| Type | DC/AC Inverters |
| Output Power | 60kw |
| Nature of Source Flow | Passive inverter |
| Application | All |
| Brand | Eksi |
| Rated Voltage(VDC) | 220V |
| Bilk Voltage(VDC) | 255.6 |
| Operating Voltage Range(VDC) | 330 |
| Inputvoltage Range(VDC) | 380 |
| Output Frequency(Hz) | 50/60 |
| Specification | CE |
| HS Code | 8504403090 |
| Phase | Three |
| Power Source | All |
| Nature of Wave String | Sine Wave Inverter |
| Circuit Topologies | Push-pull Type |
| Certification | ISO9001, CCC |
| Rated 0utput Power | 50kw |
| Float Voltage(VDC) | 243 |
| Controller Type | MPPT |
| Maximum Input Voltage(VDC) | 250-450 |
| Output Waveform | Pure Sine Wave |
| Trademark | EKSI |
| Origin | China |
1. General information:
GSA220 PV inverter with controller integrated system is a new kind of PV electricity generating equipment which combines PV controller and inverter.It consists of charge controller,inverter,mains supply bypass.mains supply charge compensation,output transfer and protection circuit.
It outputs pure Sine wave voltage, and has following advantages, such as: only need small space,less connecting lines, good safety and reliability,etc.
2. Specifications:
Model | GSA220-10K3 | GSA220-20K3 | GSA220-30K3 | GSA220-40K3 | GSA220-50K3 | GSA220-60K3 |
| Rated output power | 10KW | 20KW | 30KW | 40KW | 50KW | 60KW |
| Battery input | ||||||
| Battery model | Lead acid battery | |||||
| Rated voltage(VDC) | 220.0 | |||||
| Float voltage (VDC) | 243.0 | |||||
| Bulk voltage(VDC) | 255.6 | |||||
| PV input | ||||||
| Controller model | MPPT | |||||
| Max input power(kW) | 12.7 | 25.5 | 38.1 | 50.1 | 63.5 | 76.5 |
| Max input current(A) | 50 | 100 | 150 | 200 | 250 | 300 |
| Recommend working current(VDC) | 330 | |||||
| Working voltage range(VDC) | 250-450 | |||||
| Max input voltage(VDC) | 460 | |||||
| Mains bypass (optional) | ||||||
| Input voltage range(VAC) | 380±15%usmn;15%usmn;15% | |||||
| Input frequency(Hz) | 50/60±3%lusmn;3%lusmn;3% | |||||
| Mains charging current (optional) | Standard:10A | |||||
| AC output | ||||||
| Output wave | Pure sine wave | |||||
| Output voltage | 380VAC±1%lusmn;1%lusmn;1% | |||||
| Output frequency (Hz) | 50/60±1%lusmn;1%lusmn;1% | |||||
| Output wave distortion(THD) | ≤3%(liner overload)oad)oad) | |||||
| Inverter efficiency (80% resistive load) | ≥90%;90%;90% | |||||
| Current peak factor | 3:1 | |||||
| Overload capacity | 105-110%,600Secs;110-125%,60Secs;﹥125%,1SecsSecs | |||||
| Display | LCD+LED | |||||
| Protection | Input reverse polarity protection, input under-voltage protection, input overvoltage protection, output overload protection, output short circuit protection (no automatic recovery, you need to restart the machine), overheating protection. | |||||
| Commutation | RS485(optional) | |||||
| Environment demands | ||||||
| Protection | IP20 | |||||
| Altitude (m) (m) | ≤4000(Every 100m decreases 1% 1000m+)0m+)0m+) | |||||
| Cooling | Forced air | |||||
| Relative humidity | <95% non-condensingsing | |||||
| Temperature(ºC)rdm;C)rdm;C) | -10~+50 | |||||
| Noise(1m) | ≤60dB60dB60dB | |||||
| Dimension(D X W X H) mm | 800X600X1600 | 800X600X1600 | 800X600X1600 | 800X600X2000 | 800X600X2000 | 800X600X2000 |
| Weight(Kg) | 240 | 280 | 350 | 480 | 550 | 760 |
