AVR 500va~5000va

bargain

Model NO.	500VA, 800VA, 1000VA, 1500VA, 2000VA,3000VA,5000VA
Phase	Single Phase
Frequency	Low Frequency
Transport Package	Carton Box
Origin	China
Current Type	AC
Usage	SVC
Trademark	EAST
Specification	CE

AVR series AC automatic regulators apply the advanced control technology with well qualified components It has the features of wide input voltage compatibility, high reliability, output voltage stabilizing, energy saving ect; it has over voltage and low voltage protection and delayed output protection ect, it could supply stabilized power to lights, TVs, air-conditioners, refrigerator, computers and duplicating machines and other household equipment in schools, offices, hotels, meeting rooms where the stabilized voltage is needed.
Features:
Classic series, EI transformer, relay type

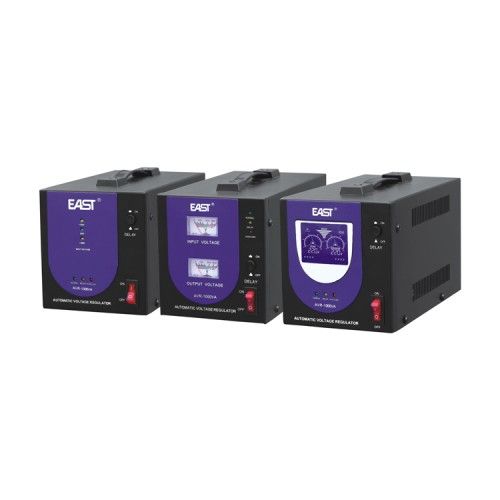

Input and output voltage LED/Meter/LCD display
High temperature protection
Circuit breaker protection
Efficiency: 98%
Technical Data:

MODEL		500VA	800VA	1000VA	1500VA	2000VA	3000VA	5000VA
INPUT
Phase		Single Phase +N+GND
Voltage range		140 Vac-270 Vac (option:100 ~ 270 V)
OUTPUT
Voltage range		200 ~ 240 V (no load)
Frequency		50 / 60Hz
Over voltage protection		250 V ± 5 V (overvoltage indicator on, output off )ut off )ut off )
Undervoltage protection		180 V ± 5 V (overvoltage indicator on, output off )ut off )ut off )
OTHERS
Efficiency		≥ 95% 95% 95%
Display mode		LED indicator light; pointer voltmeter / LCD display (selectable)
Input / output setting		Plug / Socket						Terminal blocks
Time-delay		Short delay : <3 secs; long delay: 3minsmins
Output short circuit protection		Fuse / breaker
Waveform distortion		No additional waveform distortion
Insulation resistance		﹥ 2 MΩ2 MΩ
Dielectric strength		Low frequency sine voltage 1500V for 1 minute ( without phenomena of breakdown and flashover )
Ambient temperature		-10ºC ~ ±40ºC ±40ºCmn;40ºC ±40ºC
Relative humidity		≤ 95% 95% 95%
Working		Continuing Working
Dimension(W×D×H) mmD×H) mm;H) mmD×H) mm	Metal case	125 × 230 × 1350 × 135s; 1350 × 135			143 × 258 × 1858 × 185s; 1858 × 185		210 x 291 x 201	229 x 345 x 220
	Plastic case	100 × 215 × 1605 × 160s; 1605 × 160			--
Net weight (kg)	Metal case	2.5	2.9	3.1	5.4	6.5	9.2	13.0
	Plastic case	2.1	2.5	2.7	--
Packing dimension (W×D×H) mmD×H) mm;H) mmD×H) mm	Metal case	176 × 280 × 2070 × 207s; 2070 × 207			192 × 310 × 2520 × 252s; 2520 × 252		262 x 343 x 273	271 x 396 x 303
	Plastic case	145 × 265 × 2295 × 229s; 2295 × 229			--
Gross weight(kg)	Metal case	2.8	3.2	3.4	5.6	6.7	9.6	13.55
	Plastic case	2.4	2.8	3.0	--
Quantity/20ft		2400 pcs			1600 pcs		900 pcs	730 pcs
