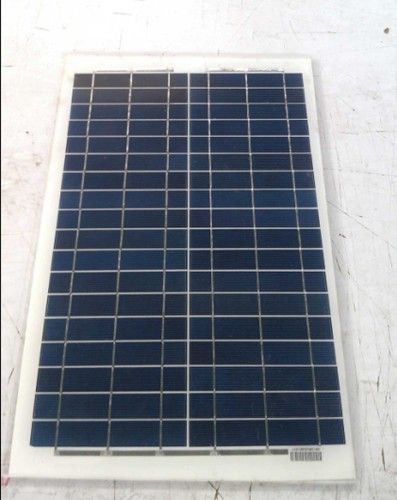

20W Poly Solar Panel

bargain

Model NO.	XG20W
Trademark	CONPO
Origin	Nanjing, China
Material	Polycrystalline Silicon
Specification	CE, RoHS, SGS, ISO9001, CNCA, SONCAP, SASO etc.
HS Code	8541402000

1. Characteristics
1). The high stability of the conversion efficiency
2). High strength reliability, ensure + / - 10% of the output power difference
3). Passing strict inspection of raw materials, the surface using toughened glass, framework for electroplating aluminum alloy, allows multiple solar panels used at the same time
4). High conversion efficiency and the fine combination of appearance
2. Quality and Safety
1). 25 years conversion efficiency of 80%, 10 years to 20 years' conversion efficiency can reach 90%, the warranty period for three
Years
2). Passing the ISO9001: 2000 quality management system certification
3). Passing the quality assurance and product liability guarantee to ensure that the interests of consumers
4). Passing CE certificate
3. Technical Specifications

Temperature Coefficients

Temperature

45+/-2º Crdm; Crdm; C

Working voltage temperature coefficient (Voc)

-0.36%/º Crdm; Crdm; C

Working current temperature coefficient (Isc)

+0.033%/º Crdm; Crdm; C

Power temperature coefficient (Pmpp)

-0.44%/º Crdm; Crdm; C

Minimum power range

+/-3%

Mechanical Data

Solar Cells

Poly-crystalline

Front Glass

3.2mmtempered

Junction Box

IP 65 rated

Output Cables

900mmlength cable

Frame

Aluminum alloy

Technical Specifications

Model

XG5W

XG10W

XG20W

XG30W

Peak power

Working voltage

16.8

17.0

17.6

Working current

0.3

0.59

1.14

1.71

Open circuit voltage (Voc)

21.0

21.2

21.6

Short circuit current (Isc)

0.38

0.68

1.39

2.02

Conversion efficiency

16%

15%

16%

Weight(kg)

0.8kg

1.4kg

2.4kg

3.2kg

Cells(pcs)

4*9

6*6

3*12

Module size (mm)

306*216*17

340*360*17

352*552*25

518*546*25

Outer packing size (mm)

340*250*30

375*395*30

390*590*40

555*580*40

Model

XG45W

XG50W

XG65W

XG70W

XG75W

Peak power

45W

50W

65W

70W

75W

Working voltage

36/18

Working current

1.25/2.49

1.38/2.77

1.8/3.61

1.94/3.89

2.08/4.15

Open circuit voltage (Voc)

39.5/19.05

Short circuit current (Isc)

1.37/2.75

1.51/2.98

1.98/3.96

2.13/4.26

2.28/4.57

Conversion efficiency

15.9%

17.7%

14.8%

16%

17.1%

Weight(kg)

4.2

5.6

Cells(pcs)

3*12

4*9

Module size (mm)

707× 507*30/257*30/257*30/25

776*676*30/25

Outer packing size (mm)

750*550*70

820*720*70

Model

XG85W

XG90W

XG100W

XG130W

XG140W

Peak power

85W

90W

100W

130W

140W

Working voltage

36/18

Working current

2.36/4.71

2.5/4.98

2.77/5.55

3.6/7.2

3.88/7.77

Open circuit voltage (Voc)

39.5/19.05

39.5/19.08

39.1/19.1

39.3/19.4

Short circuit current (Isc)

2.59/5.19

2.75/5.5

3.04/5.92

3.96/7.9

4.26/8.53

Conversion efficiency

15.1%

16%

14.8%

15.9%

Weight(kg)

8.1

12.5

Cells(pcs)

4*9

4*18

4*9

Module size (mm)

973*676*35/30

1106*676*30

1480*670*40/35

Outer packing size (mm)

1020*720*75

1150*720*75

1520*720*75

Model

XG150W

XG180W

XG200W

XG230W

Peak power

150W

180W

200W

230

Working voltage

36/18

30.36

Working current

4.16/8.33

5/10

5.55/11.1

7.58

Open circuit voltage (Voc)

39.3/19.4

39.3/19.2

39.6/19.5

36.42

Short circuit current (Isc)

4.58/9.16

5.5/11

6.1/12.2

8.11

Conversion efficiency

17.2%

16%

17.7%

16%

Weight(kg)

12.5

17.5

18.6

Cells(pcs)

4*9

6*12

6*10

Module size (mm)

1480*670*40/35

1288*992*40/35

1420*992*40/35

1640*990*40/35

Outer packing size (mm)

1520*720*75

1330*1040*75

1460*1040*75

1680*1040*75

Model

XG260W

XG270W

XG280W

XG290W

XG300W

Peak power

260W

270W

280W

290W

300W

Working voltage

36/18

Working current

7.2/14.4

7.5/15

7.77/15.55

8.05/16.11

8.33/16.66

Open circuit voltage (Voc)

39.15/19.1

39.2/19.3

39.3/19.4

39.6/19.8

Short circuit current (Isc)

7.8/15.6

8.03/16.05

8.13/16.26

8.86/17.72

9.16/18.33

Conversion efficiency

14.8%

15.4%

15.9%

16.5%

17.2%

Weight(kg)

Cells(pcs)

6*12

Module size (mm)

1956*992*50/35

Outer packing size (mm)

2000*1040*85
